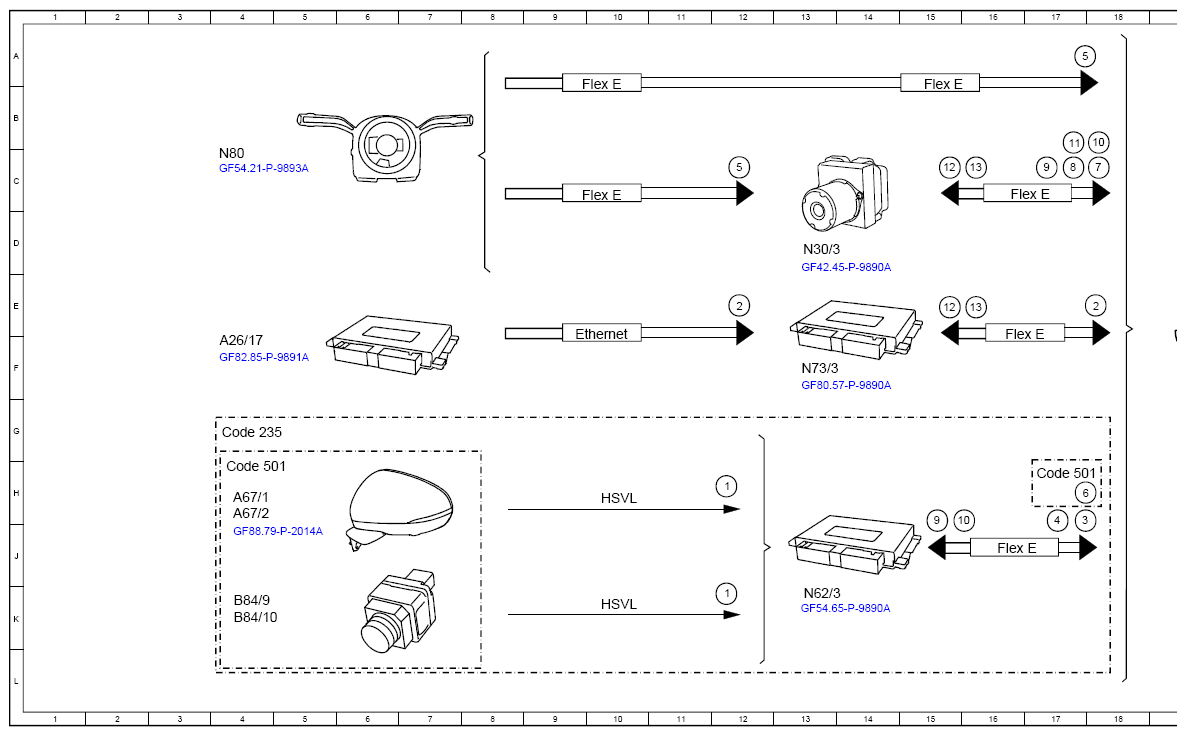

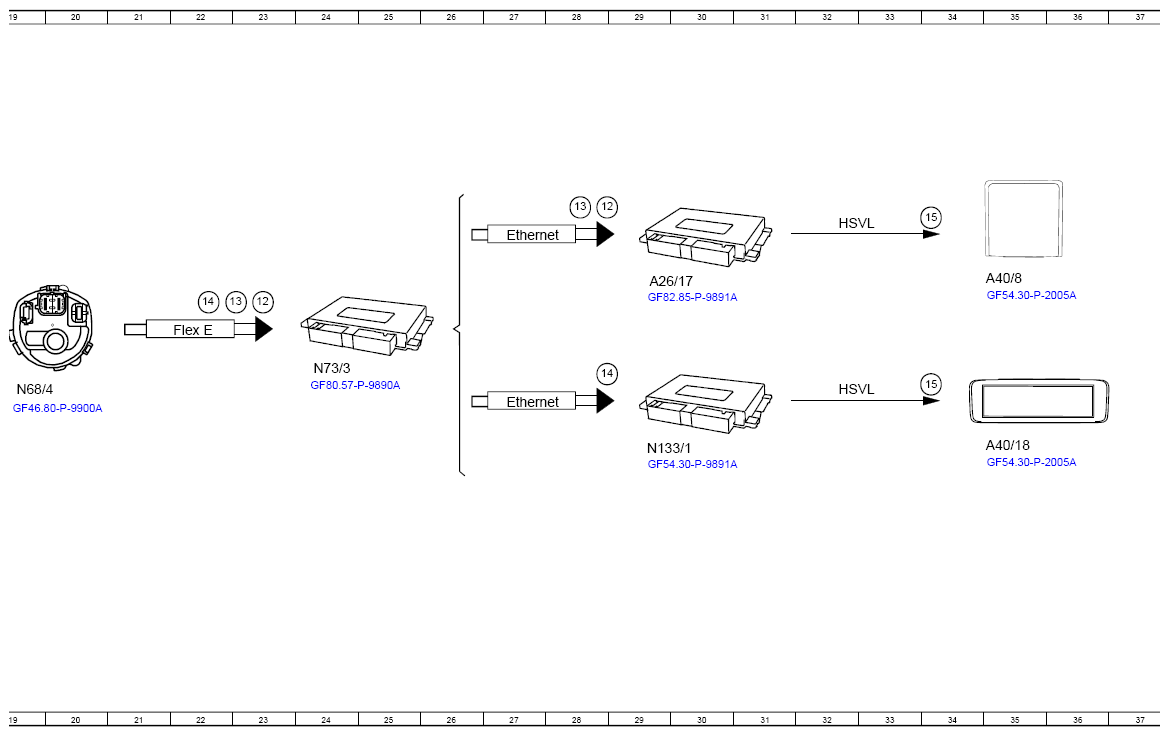

(Function Schematic For Rear Axle Steering - PE46.80-P-2500-97D)
Model 206, 214, 236, 254, 294, 295, 296
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Camera image, signal | 12H |
| 1 | Camera image, signal | 12K |
| 10 | Toe angle change, request | 18B |
| 10 | Toe angle change, request | 16H |
| 11 | Speed, turn rate and lateral acceleration, signal | 17B |
| 12 | Rear axle steering, status | 23E |
| 12 | Rear axle steering, status | 15C |
| 12 | Rear axle steering, status | 28D |
| 12 | Rear axle steering, status | 15E |
| 13 | Rear axle steering position, signal | 23E |
| 13 | Rear axle steering position, signal | 16C |
| 13 | Rear axle steering position, signal | 28C |
| 13 | Rear axle steering position, signal | 16E |
| 14 | Instrument cluster, message | 22E |
| 14 | Instrument cluster, message | 28F |
| 15 | Image data, signal | 34D |
| 15 | Image data, signal | 34F |
| 2 | Operating mode for snow chains, request | 12E |
| 2 | Operating mode for snow chains, request | 18E |
| 3 | Parking system control unit, status | 18H |
| 4 | Rear axle steering, request | 17H |
| 5 | Steering wheel angle sensor, signal | 12C |
| 5 | Steering wheel angle sensor, signal | 17A |
| 6 | Ambient information, data | 18H |
| 7 | Wheel speed, signal | 18C |
| 8 | Wheel rotation direction, signal | 17C |
| 9 | Rear axle steering control mode, request | 17C |
| 9 | Rear axle steering control mode, request | 15J |
| A26/17 | Head unit | 4F |
| A26/17 | Head unit | 29E |
| A40/18 | Instrument cluster display | 35G |
| A40/8 | Touchscreen | 35E |
| A67/1 | Left outside mirror | 4H |
| A67/2 | Right outside mirror | 4H |
| B84/10 | Camera for rear 360° camera | 4K |
| B84/9 | Camera for front 360° camera | 4K |
| Code 235 | Active Park Assist | 4G |
| Code 501 | 360° camera | 4H |
| Code 501 | 360° camera | 17H |
| Ethernet | Ethernet | 27D |
| Ethernet | Ethernet | 10F |
| Ethernet | Ethernet | 27G |
| Flex E | Chassis FlexRay | 10B |
| Flex E | Chassis FlexRay | 15B |
| Flex E | Chassis FlexRay | 10C |
| Flex E | Chassis FlexRay | 16C |
| Flex E | Chassis FlexRay | 16J |
| Flex E | Chassis FlexRay | 22E |
| Flex E | Chassis FlexRay | 16F |
| HSVL | High-speed video link | 32D |
| HSVL | High-speed video link | 10K |
| HSVL | High-speed video link | 10H |
| HSVL | High-speed video link | 32F |
| N133/1 | Instrument cluster control unit | 29G |
| N30/3 | Electronic Stability Program control unit | 13D |
| N62/3 | Parking system control unit | 13K |
| N68/4 | Rear axle steering control unit | 19F |
| N73/3 | Electronic ignition switch control unit | 24F |
| N73/3 | Electronic ignition switch control unit | 13F |
| N80 | Steering column module control unit | 4C |
