Remove/Install Outer Head Restraint Of Rear Bench Seat - AR91.16-P-1770-01LCA
Model 217.3
except code 223 (Electric backrest adjustment and head restraints)
Model 222.0/1
except code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
Remove/install

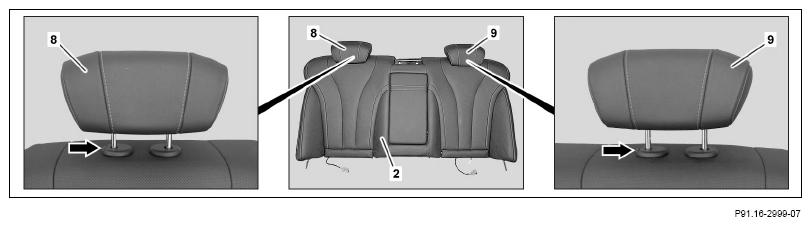

- Pull right head restraint (8) or left head restraint (9) upwards up to end stop.
- Press corresponding button (arrow) and remove right head restraint (8) or left head restraint (9) from head restraint guide.
- Install in the reverse order.
