Remove/Install Middle Head Restraint Of Rear Bench Seat - AR91.16-P-1770-02LCA

Model 222.0/1

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

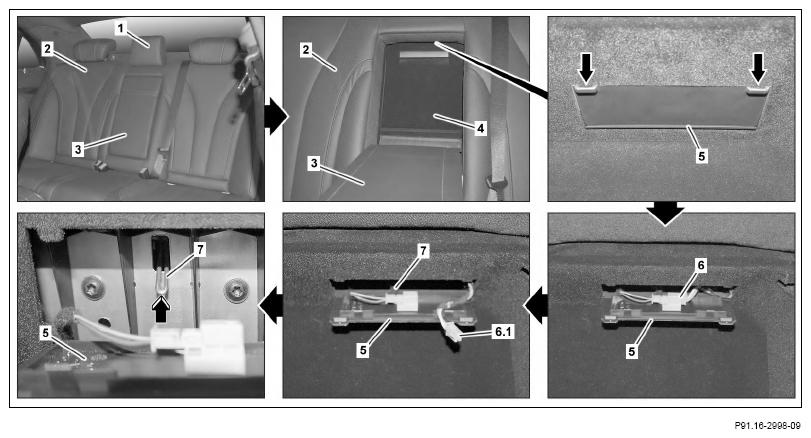

Remove/install

1. Fold up armrest (3).
2. Open flap (4).
3. Release cover (5) (arrows) and open.

   Installation: Make sure that the electrical line of the center head restraint (1) is routed correctly.

4. Disconnect electrical connector (6).
5. Allow electrical line with connector (6.1) to hang down vertically.
6. Pull unlocking stirrup (7) in forward direction until end stop.

   Installation: Unlocking stirrup (7) must audibly latch.

7. Remove center head restraint (1).

   Guide the electrical line with connector (6.1) through the head restraint guide.

8. Install in the reverse order.
