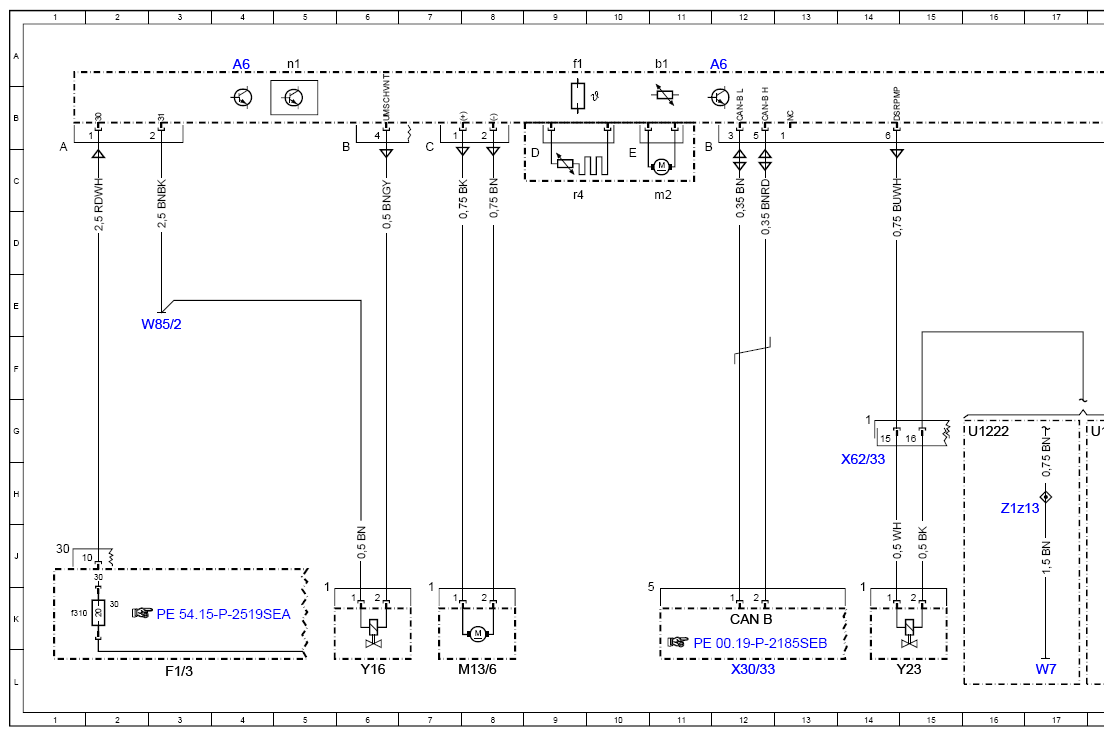

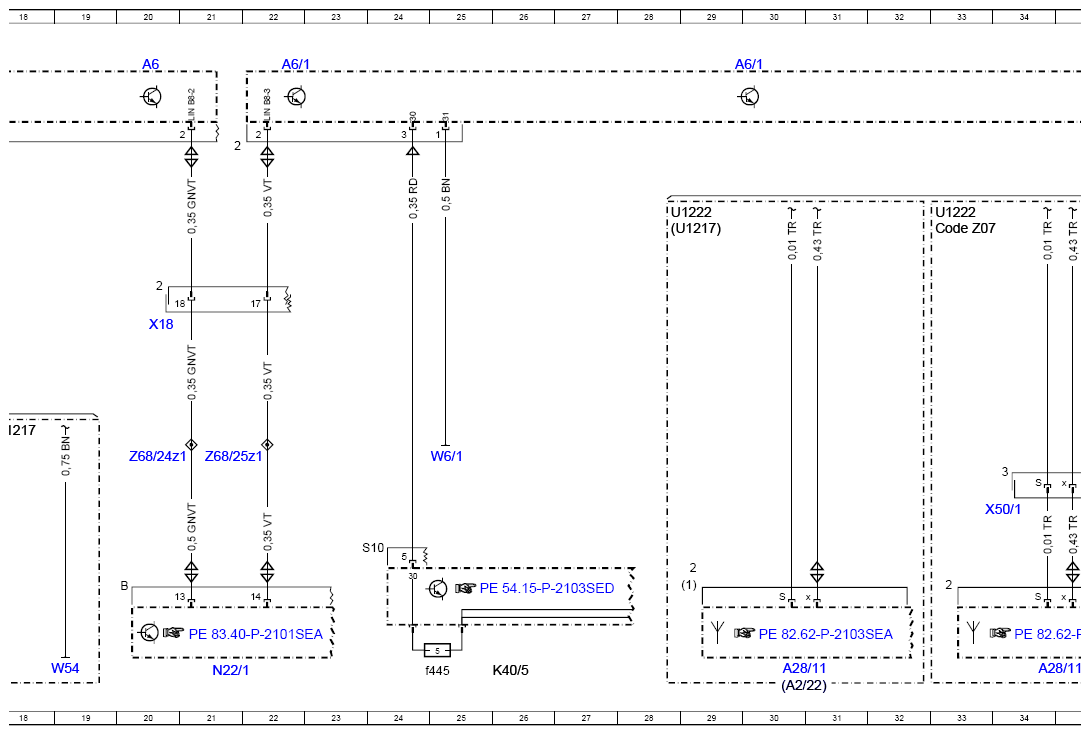

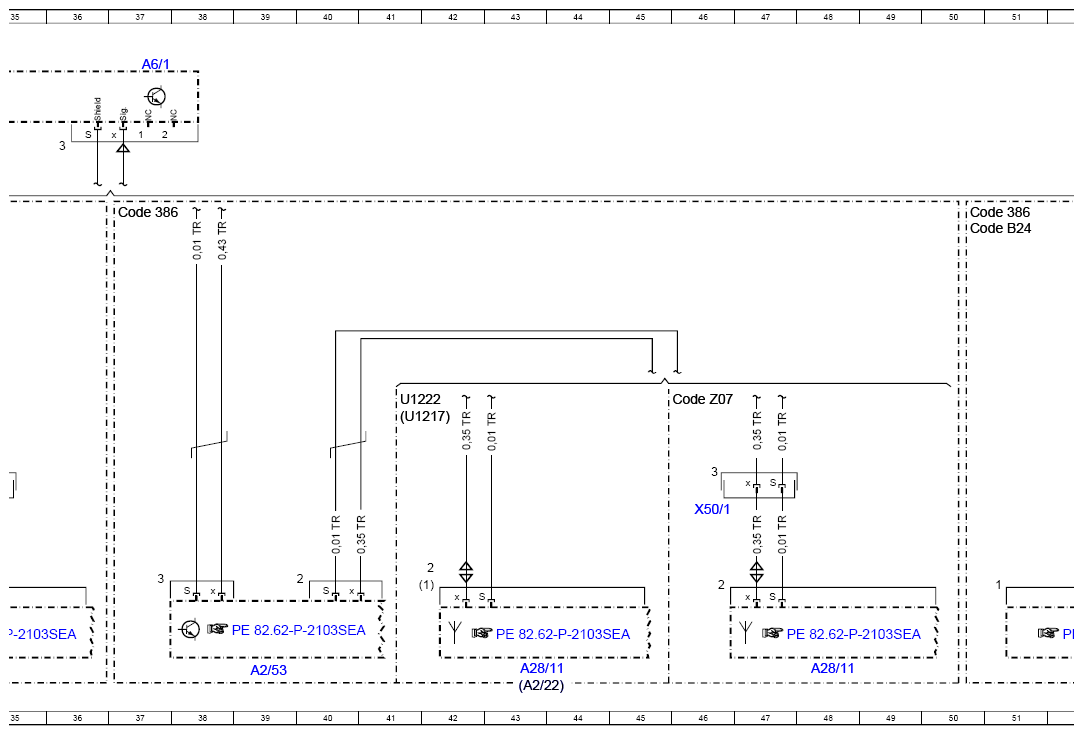

Wiring Diagram Of Stationary Heater (STH) Control Module - PE83.70-P-2101-97SEA
Model 217 up to model year 2018 with code 228 (Auxiliary heater)
Control unit A6
Model 222 up to model year 2018 with code 228 (Auxiliary heater)
Control unit A6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A2/155 | Telephone, stationary heater and Remote Park-Pilot antenna changeover switch | 52L |
| A2/22 | Telephone and stationary heater antenna | 30L |
| A2/22 | Telephone and stationary heater antenna | 43L |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 39L |
| A28/11 | Multifunction antenna | 30L |
| A28/11 | Multifunction antenna | 34L |
| A28/11 | Multifunction antenna | 43L |
| A28/11 | Multifunction antenna | 48L |
| A6 | Stationary heater unit | 4A |
| A6 | Stationary heater unit | 12A |
| A6 | Stationary heater unit | 20A |
| A6/1 | Stationary heater radio remote control receiver | 22A |
| A6/1 | Stationary heater radio remote control receiver | 37A |
| A6/1 | Stationary heater radio remote control receiver | 29A |
| A6b1 | Stationary heater temperature sensor | 11A |
| A6f1 | Stationary heater thermal fuse | 9A |
| A6m2 | Stationary heater combustion air blower | 11C |
| A6n1 | Stationary heater control unit | 5A |
| A6r4 | Stationary heater glow plug/flame monitor unit | 9C |
| CAN B | Interior CAN | 12K |
| Code 386 | Comfort telephony | 37D |
| Code 386 | Comfort telephony | 50D |
| Code B24 | Radio remote control for stationary heater | 50D |
| Code Z07 | Top protection | 46G |
| Code Z07 | Top protection | 33D |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f310 | Fuse 310 | 1K |
| K40/5 | Rear fuse and relay module | 26L |
| K40/5f445 | Fuse 445 | 25L |
| M13/6 | Stationary heater coolant circulation pump | 8L |
| N22/1 | Climate control, control unit | 21L |
| U1217 | Valid for model series 217 | 28D |
| U1217 | Valid for model series 217 | 18G |
| U1217 | Valid for model series 217 | 41G |
| U1222 | Valid for model series 222 | 28D |
| U1222 | Valid for model series 222 | 16G |
| U1222 | Valid for model series 222 | 41G |
| U1222 | Valid for model series 222 | 33D |
| W54 | Right rear wheel well ground point | 19L |
| W6/1 | Left taillamp trunk ground point | 25H |
| W7 | Right wheel house trunk ground point | 17L |
| W85/2 | Front passenger footwell frame floor assembly ground point | 3E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 20E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| X50/1 | Roof antenna line electrical connector, special-purpose vehicle | 46H |
| X50/1 | Roof antenna line electrical connector, special-purpose vehicle | 34H |
| X62/33 | Rear axle electrical connector, right distributor | 14H |
| Y16 | Stationary heater switchover valve | 6L |
| Y23 | Stationary heater fuel pump | 15L |
| Z1z13 | Circuit 31 connector sleeve | 16H |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 20G |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 21G |
