Remove/Install AC Condenser - AR83.30-P-6540MNM
Model 217, 222 With Engine 176
Model 217, 222 With Engine 177
Model 222 With Engine 656
Shown With Code 1U6 (Refrigerant R744)
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 217, 222 with engine 176 with code 2U8 (Alternative refrigerant) Model 217, 222 with engine 177 |
AS83.00-Z-0007-01A | |
| Risk of injury when working on air conditioning systems due to R744 refrigerant escaping under pressure. Risk of suffocation from inhaling R744 refrigerant in high concentrations. Health hazard caused by inhalation of R744 refrigerant | Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 217, 222 with engine 176 with code 1U6 (R744 refrigerant) Model 222 with engine 656 with code 1U6 (R744 refrigerant) |
AS83.00-Z-0008-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on handling refrigerant R1234yf | Model 217, 222 with engine 176 with code 2U8 (Alternative refrigerant) Model 217, 222 with engine 177 |
AH83.30-P-0003-02A | |
| Notes on handling refrigerant R744 | Model 217, 222 with engine 176 with code 1U6 (R744 refrigerant) Model 222 with engine 656 with code 1U6 (R744 refrigerant) |
AH83.30-P-0003-03A | |
| Remove/install | |||
| 1 | Remove radiator package | Model 217, 222 with engine 177 | AR20.20-P-3865MNM |
| Model 222 with engine 656 | AR20.20-P-3865OIA | ||
| Model 217, 222 with engine 176 | AR20.20-P-3865MNL | ||

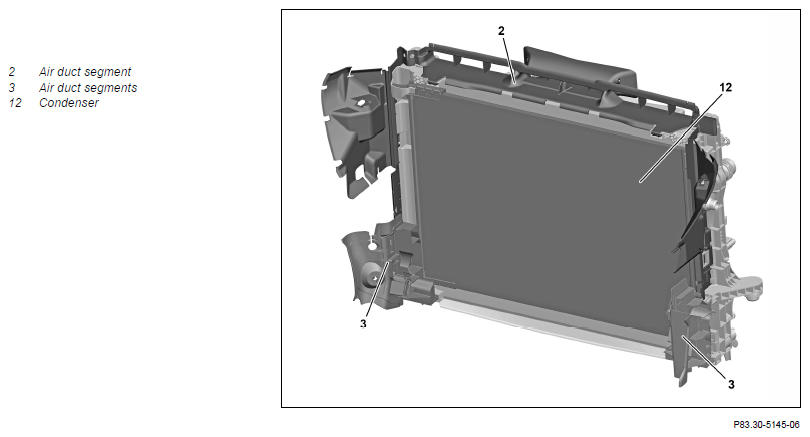

| 2 | Remove air duct segments (3) from radiator package | ||
| 3 | Remove air duct segment (2) from radiator package | ||
| 4 | Remove condenser (12) from radiator package | ||
| 5 | Remove pressure sensor from condenser (12) | Model 217, 222 with engine 176 except code 1U6 (R744 refrigerant) Model 217, 222 with engine 177 except code 1U6 (R744 refrigerant) When replacing condenser (12). |
|
| AR83.30-P-5430LF | |||
| 6 | Install in the reverse order |
