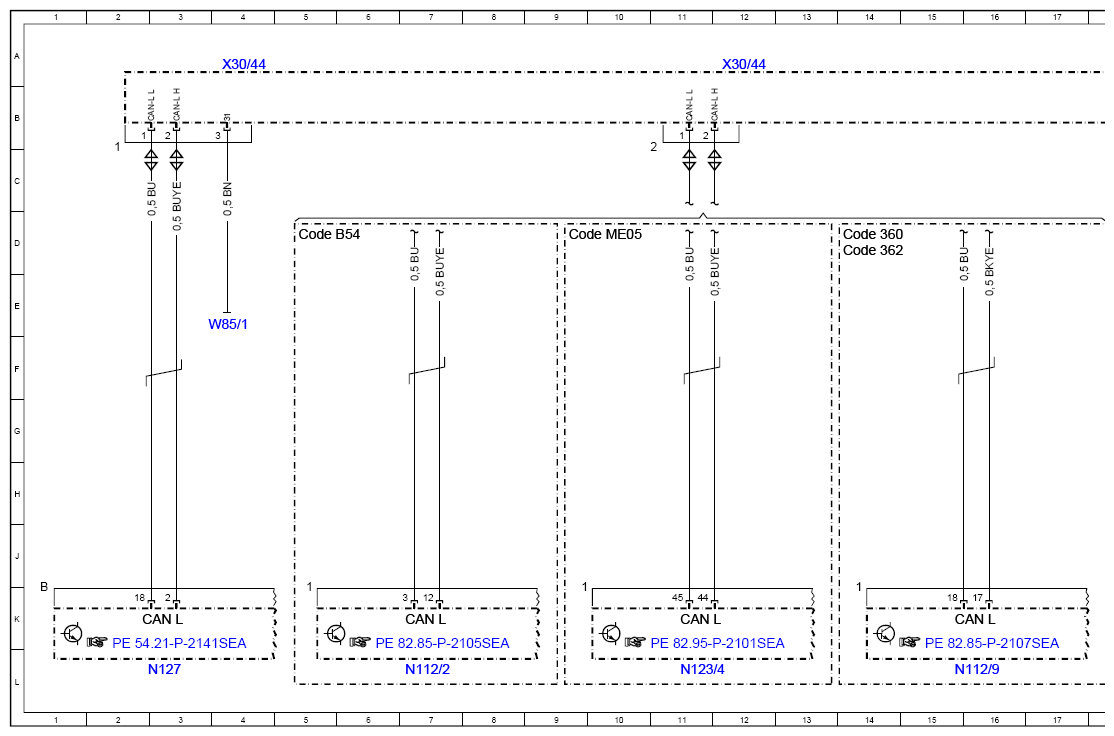

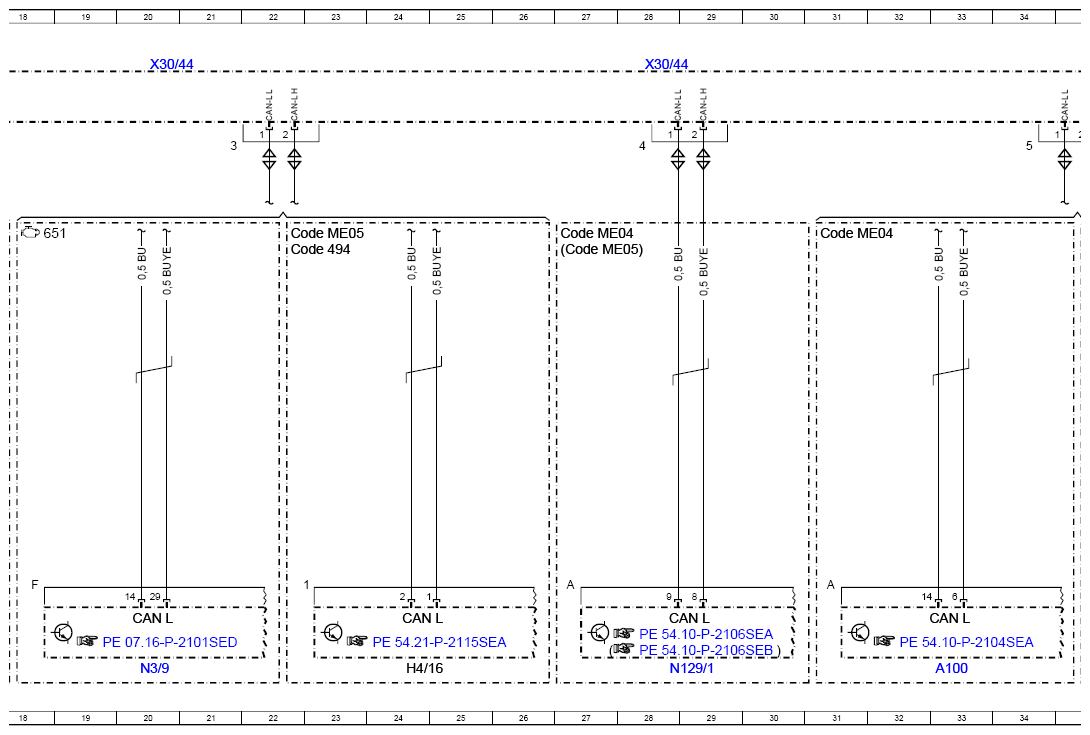

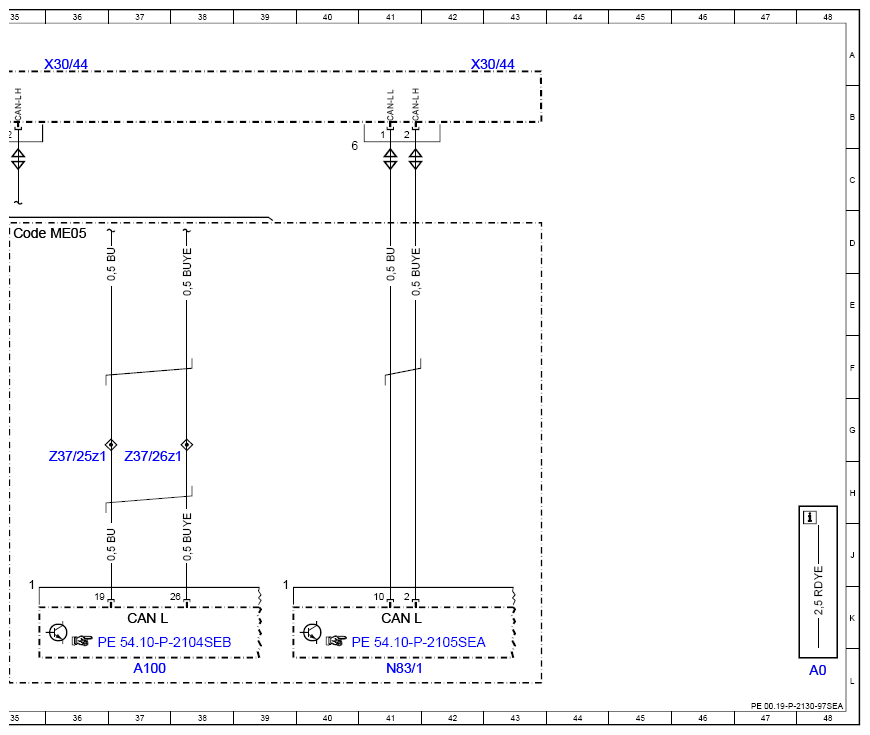

Wiring Diagram, Hybrid CAN - PE00.19-P-2130-97SEA
Model 222 up to model year 2018 Voltage distributorX30/44
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A100 | High-voltage battery module | 33L |
| A100 | High-voltage battery module | 37L |
| CAN L | Hybrid CAN | 24K |
| CAN L | Hybrid CAN | 3K |
| CAN L | Hybrid CAN | 7K |
| CAN L | Hybrid CAN | 11K |
| CAN L | Hybrid CAN | 16K |
| CAN L | Hybrid CAN | 20K |
| CAN L | Hybrid CAN | 29K |
| CAN L | Hybrid CAN | 33K |
| CAN L | Hybrid CAN | 37K |
| CAN L | Hybrid CAN | 41K |
| Code 360 | HERMES UMTS | 14D |
| Code 362 | HERMES LTE | 14D |
| Code 494 | USA version | 22D |
| Code B54 | Live Traffic Information | 5D |
| Code ME04 | Mild hybrid drive | 27D |
| Code ME04 | Mild hybrid drive | 31D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 9D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 22D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 27D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 35D |
| H4/16 | Sound generator | 24L |
| N112/2 | Telematics services communication module | 7L |
| N112/9 | HERMES control unit | 16L |
| N123/4 | Emergency call system control unit | 11L |
| N127 | Drivetrain control unit | 3L |
| N129/1 | Power electronics control unit | 29L |
| N3/9 | CDI control unit | 20L |
| N83/1 | DC/DC converter control unit | 41L |
| W85/1 | Driver footwell frame floor assembly ground point | 4E |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 4A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 12A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 20A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 28A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 36A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 42A |
| Z37/25z1 | Hybrid CAN connector sleeve (CAN-L) high | 36G |
| Z37/26z1 | Hybrid CAN connector sleeve (CAN-L) low | 37G |
