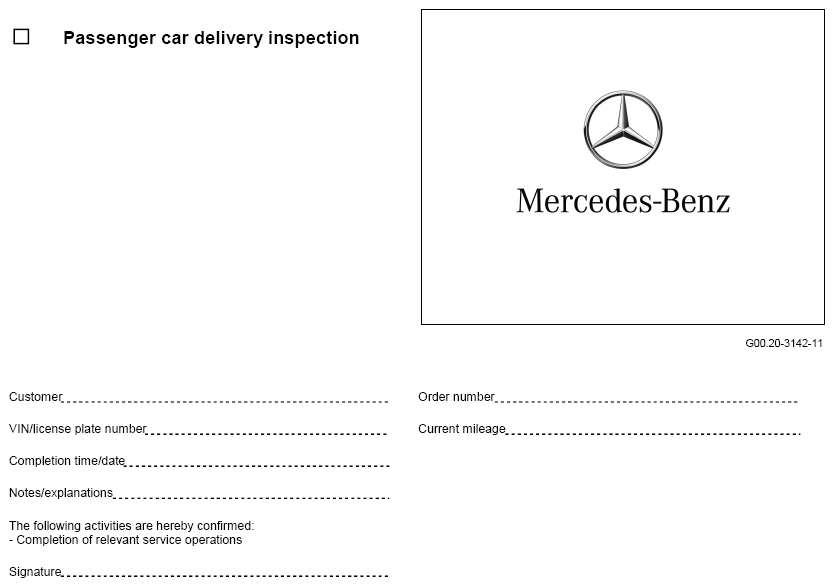

Perform Delivery Check For New Vehicles - AP00.20-P-1101A

Model 117, 118, 156, 166, 167, 172, 176, 177, 205, 213, 217, 222, 231, 238, 243, 247, 253, 257, 290, 292, 293, 461, 463

Courtesy of MERCEDES-BENZ USA

		Input condition not OK:	ⓧ
Completed
[X]
□	Vehicle exterior, body  Check windows, paint, chrome parts and plastic parts for shipping damage.		◦
□	Check condition of vehicle underside in front and rear area for shipping damage.		◦
□	Check condition of vehicle underside in area of high-voltage battery as well as front and rear underbody paneling for damage.	Model 293 If necessary, use commercially available devices/tools.  Swiveling underbody inspection mirror with illumination. If problems are determined, ↓	◦
		Place vehicle on vehicle lift and check problems again. After obtaining special order.
□	Tires, wheels  Check tires and rims for shipping damage.		◦
	Vehicle interior
□	Check vehicle interior for damage and condition.		◦
□	Check charge level of high-voltage battery.	Model 118.386/686, 177.086/186, 247.086/786 Model 166.063, 167.117/317, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/211/216/253, 222.163/173, 253.311/353/354/911/953/954 Model 167.154/354 except code 830 (China version) Model 167.154/354 with code 830 (China version) Model 205.012/212 Model 222.004/057/104/157 Model 243 Model 253.99, 293 Model 290.679	◦
				SI54.10-P-0024A
□	Check navigation system for completeness		◦
	Miscellaneous
□	Enter any other faults into table.
