Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055A
Model 217, 222
Shown on engine 279.980 in model 222.179
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Remove | |||

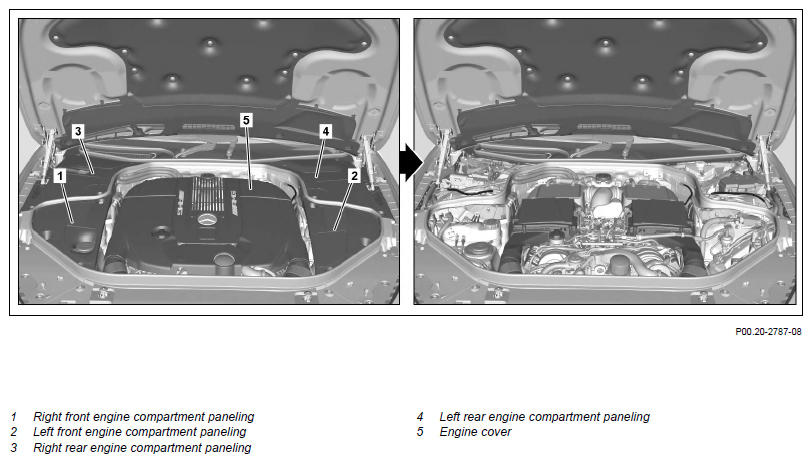

| 1 | Remove right front engine compartment trim (1) | ||
| 2 | Remove left front engine compartment paneling (2) | ||
| 3 | Remove right rear engine paneling (3) | ||
| 4 | Remove left rear engine paneling (4) | ||
| 5 | Remove engine cover (5) | Model 217, 222 | |
| Model 222 with engine 256.9 | AR01.10-P-2405MRT | ||
| Check | |||
| 6 | Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely | If a problem arises ↓ Rectify problem subject to separate repair order. |
|
| 7 | Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely | Equipment-dependent. If a problem arises ↓ Rectify problem subject to separate repair order. |
|
| 8 | Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely | If a problem arises ↓ Rectify problem subject to separate repair order. |
|
| 9 | Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely | Equipment-dependent. ↓ Rectify problem subject to separate repair order. |
|
| 10 | Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion | Model 217 | AP00.20-P-0054C |
| Model 222 | AP00.20-P-0054J | ||
| Install | |||
| 11 | Install engine cover (5) | Model 217, 222 | |
| Model 222 with engine 256.9 | AR01.10-P-2405MRT | ||
| 12 | Install left rear paneling for engine compartment (4) | ||
| 13 | Install right rear engine paneling (3) | ||
| 14 | Install left front engine compartment paneling (2) | ||
| 15 | Install right front engine compartment trim (1) |
