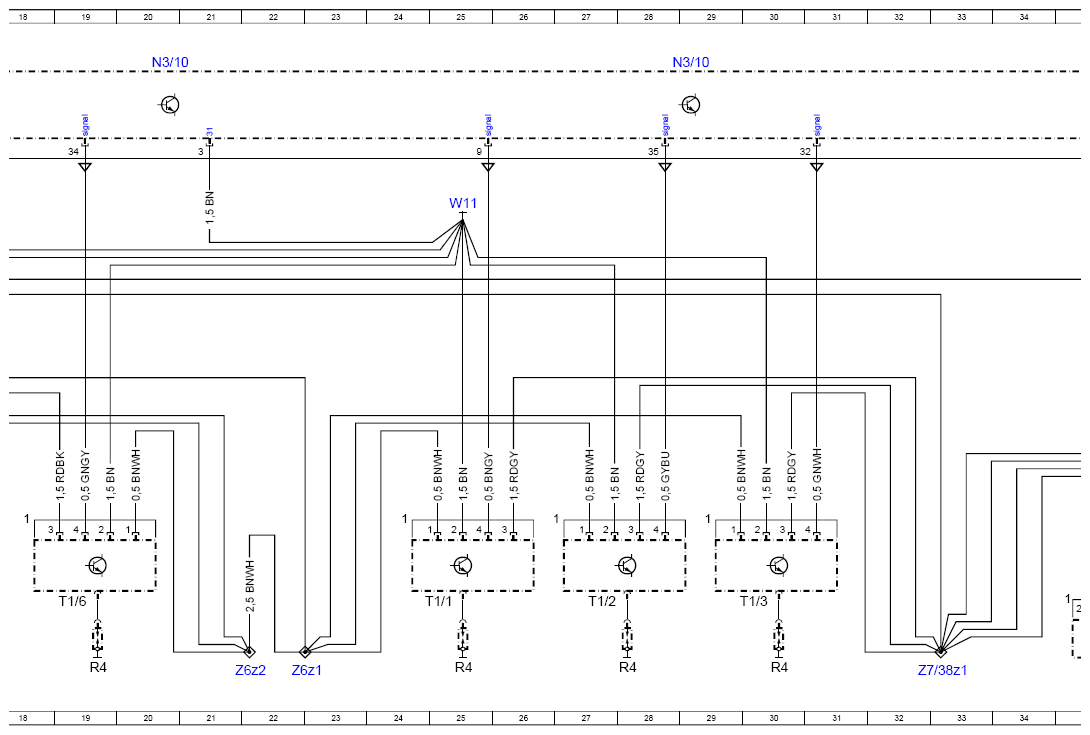

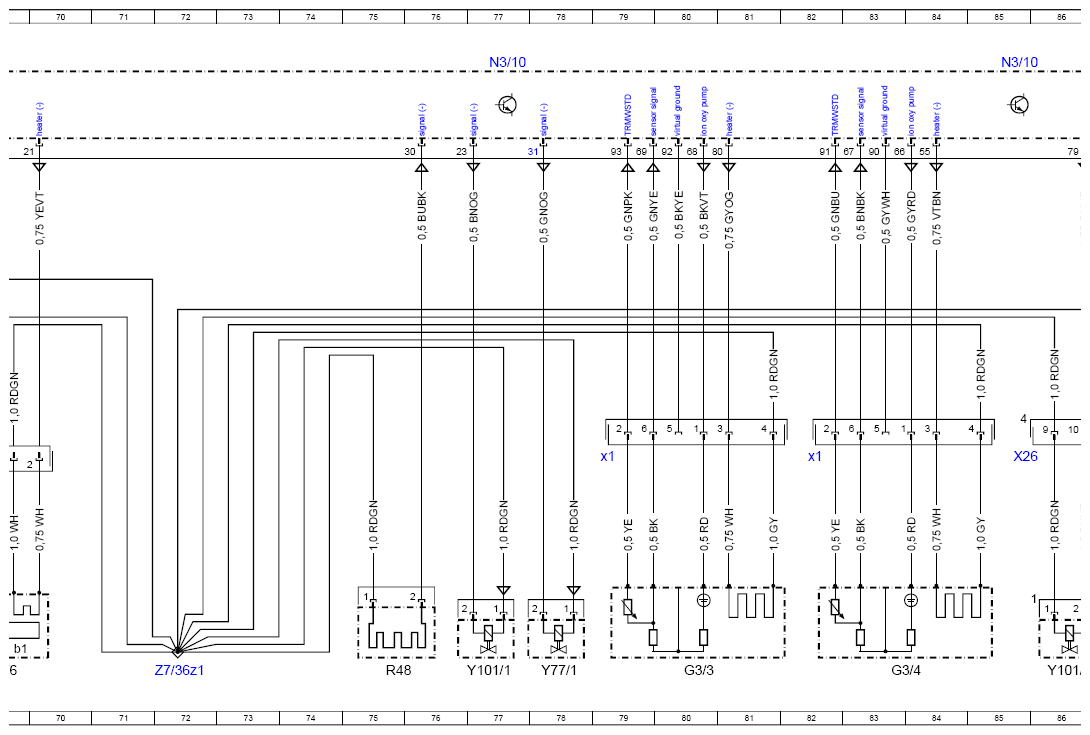

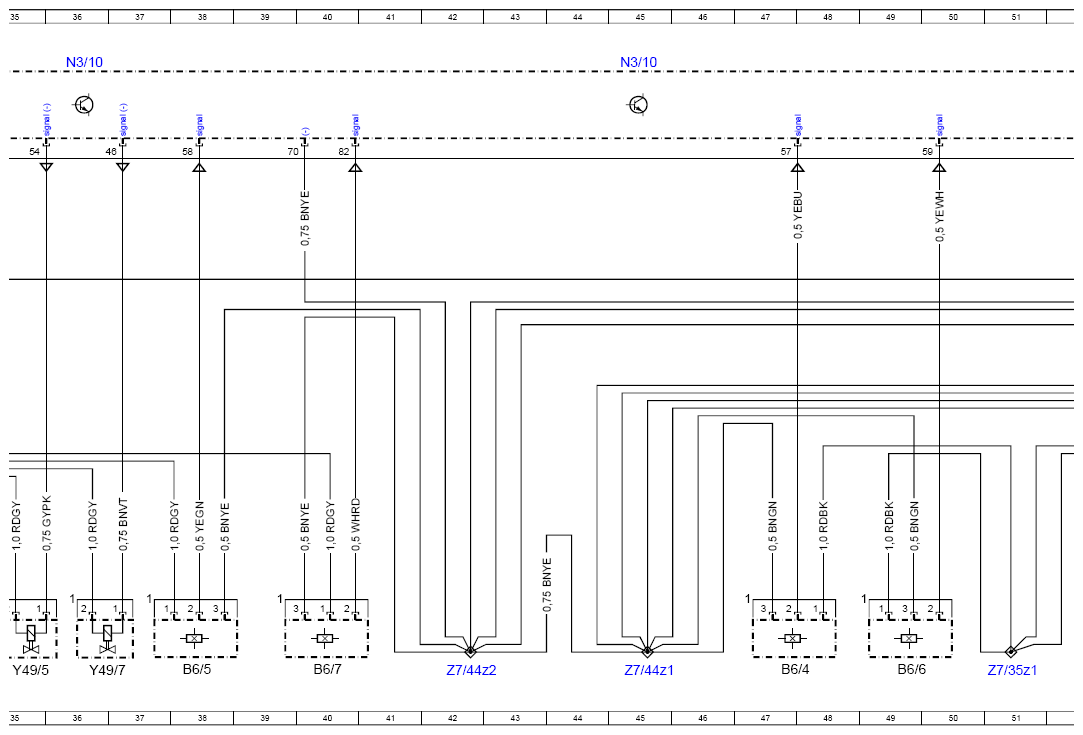

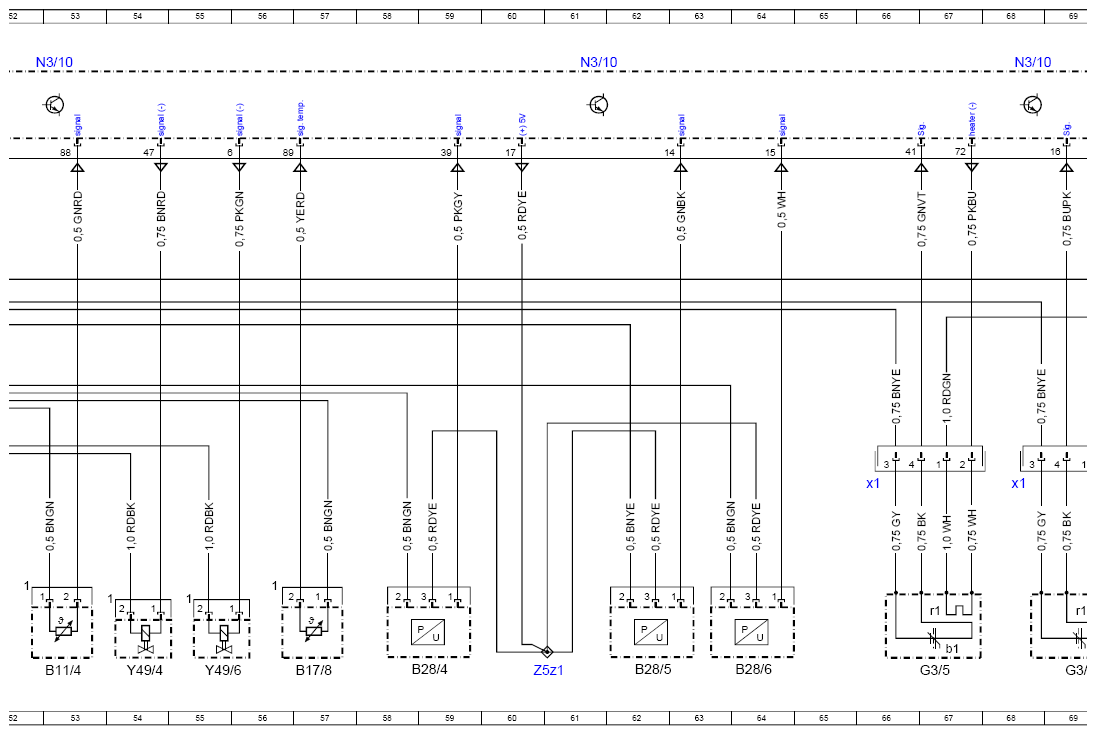

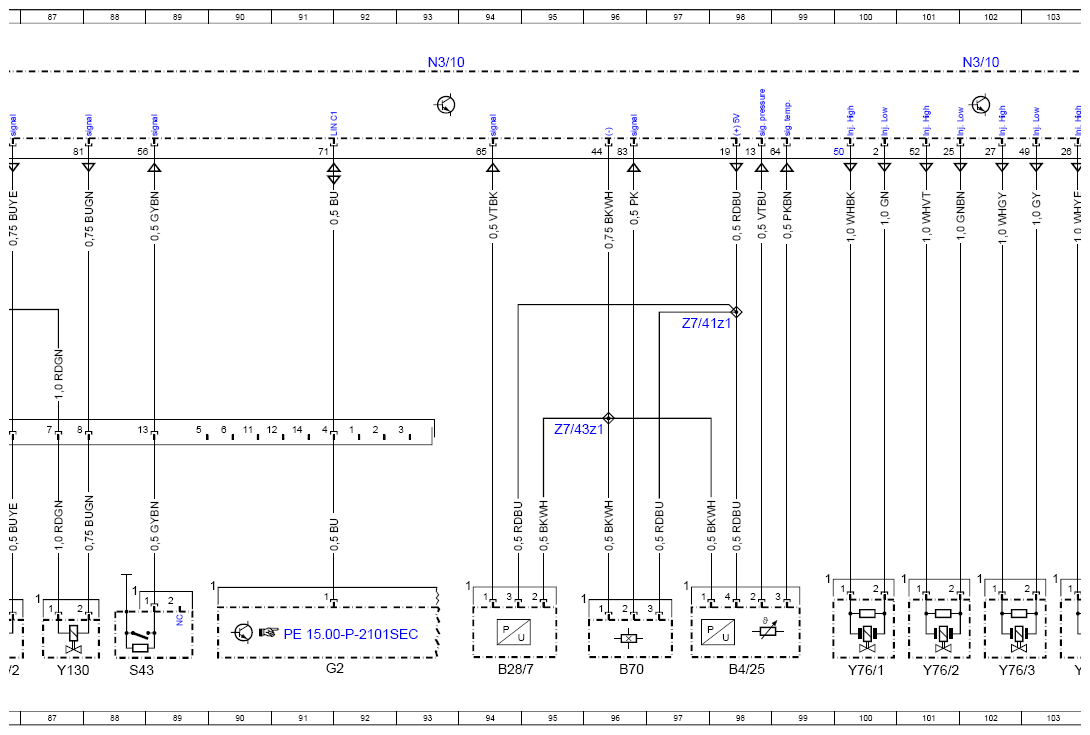

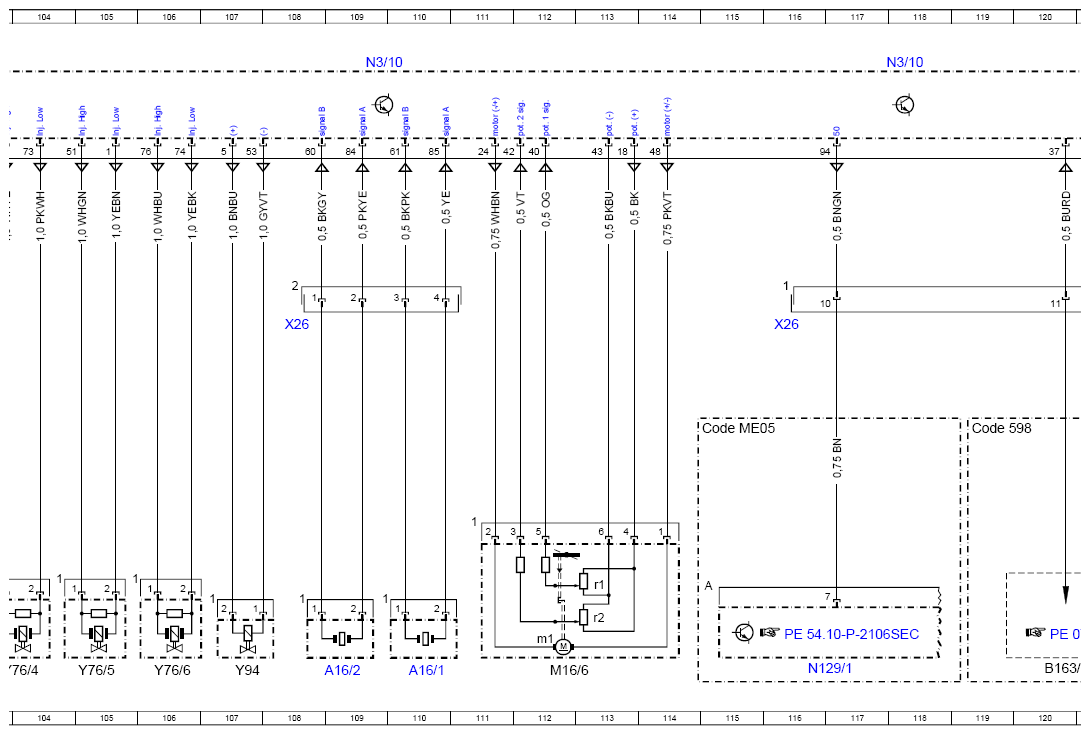

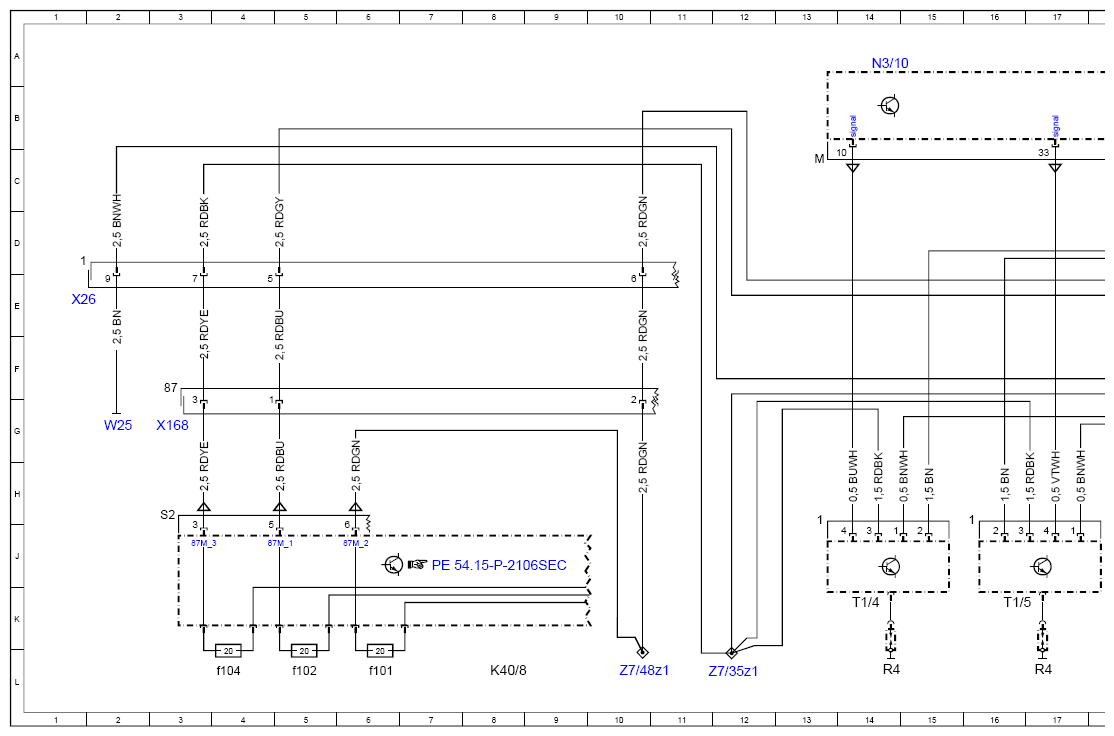

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97SER
Engine 276 in model 217, 222 as of model year 2018 Control unit N3/10, engine side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A16/1 | Knock sensor 1 | 110L |
| A16/2 | Knock sensor 2 | 109L |
| B11/4 | Coolant temperature sensor | 53L |
| B163/5 | Left gasoline particulate filter differential pressure sensor | 120L |
| B163/6 | Right gasoline particulate filter differential pressure sensor | 121L |
| B17/8 | Charge air temperature sensor | 57L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 59L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 62L |
| B28/6 | Pressure sensor upstream of throttle valve | 64L |
| B28/7 | Pressure sensor downstream of throttle valve | 94L |
| B4/25 | Fuel pressure and temperature sensor | 98L |
| B6/4 | Left intake camshaft Hall sensor | 47L |
| B6/5 | Right intake camshaft Hall sensor | 38L |
| B6/6 | Left exhaust camshaft Hall sensor | 49L |
| B6/7 | Right exhaust camshaft Hall sensor | 40L |
| B70 | Crankshaft Hall sensor | 96L |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 119G |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 115G |
| G2 | Alternator | 91L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 80L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 79H |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 83L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 82H |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 67L |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 67L |
| G3/5r1 | Left oxygen sensor heater downstream of catalytic converter | 67K |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 66H |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 69L |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 69L |
| G3/6r1 | Right oxygen sensor heater downstream of catalytic converter | 69K |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 68H |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8f101 | Fuse 101 | 6L |
| K40/8f102 | Fuse 102 | 5L |
| K40/8f104 | Fuse 104 | 4L |
| M16/6 | Throttle valve actuator | 112L |
| M16/6m1 | Throttle valve actuator motor | 112K |
| M16/6r1 | Actual value potentiometer 1 | 113K |
| M16/6r2 | Actual value potentiometer 2 | 113K |
| N129/1 | Power electronics control unit | 116L |
| N3/10 | ME-SFI [ME] control unit | 14A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 45A |
| N3/10 | ME-SFI [ME] control unit | 29A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 53A |
| N3/10 | ME-SFI [ME] control unit | 61A |
| N3/10 | ME-SFI [ME] control unit | 85A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 77A |
| N3/10 | ME-SFI [ME] control unit | 93A |
| N3/10 | ME-SFI [ME] control unit | 102A |
| N3/10 | ME-SFI [ME] control unit | 109A |
| N3/10 | ME-SFI [ME] control unit | 118A |
| N3/10 | ME-SFI [ME] control unit | 125A |
| R4 | Spark plugs | 14L |
| R4 | Spark plugs | 19L |
| R4 | Spark plugs | 17L |
| R4 | Spark plugs | 30L |
| R4 | Spark plugs | 28L |
| R4 | Spark plugs | 25L |
| R48 | Coolant thermostat heating element | 75L |
| S43 | Oil level check switch | 88L |
| T1/1 | Cylinder 1 ignition coil | 25K |
| T1/2 | Cylinder 2 ignition coil | 27K |
| T1/3 | Cylinder 3 ignition coil | 30K |
| T1/4 | Cylinder 4 ignition coil | 14K |
| T1/5 | Cylinder 5 ignition coil | 16K |
| T1/6 | Cylinder 6 ignition coil | 19K |
| W11 | Combustion engine ground point | 25C |
| W25 | ME/CDI control unit ground point | 2G |
| X168 | ME-SFI [ME]/CDI control unit vehicle interior wiring harness electrical connector | 3G |
| X26 | Interior and engine wiring harness electrical connector | 1E |
| X26 | Interior and engine wiring harness electrical connector | 85H |
| X26 | Interior and engine wiring harness electrical connector | 116E |
| X26 | Interior and engine wiring harness electrical connector | 108E |
| Y101/1 | Left bypass air switchover valve | 77L |
| Y101/2 | Right bypass air switchover valve | 86L |
| Y130 | Engine oil pump valve | 87L |
| Y49/4 | Left intake camshaft solenoid | 54L |
| Y49/5 | Right intake camshaft solenoid | 35L |
| Y49/6 | Left exhaust camshaft solenoid | 55L |
| Y49/7 | Right exhaust camshaft solenoid | 36L |
| Y76/1 | Cylinder 1 fuel injector | 100L |
| Y76/2 | Cylinder 2 fuel injector | 101L |
| Y76/3 | Cylinder 3 fuel injector | 102L |
| Y76/4 | Cylinder 4 fuel injector | 103L |
| Y76/5 | Cylinder 5 fuel injector | 105L |
| Y76/6 | Cylinder 6 fuel injector | 106L |
| Y77/1 | Exhaust gas turbocharger guide vanes actuator | 78L |
| Y94 | Quantity control valve | 107L |
| Z5z1 | Connector sleeve in wiring harness | 60L |
| Z6z1 | Circuit 31 connector sleeve | 22L |
| Z6z2 | Circuit 31 connector sleeve | 22L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 12L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 51L |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 72L |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 32L |
| Z7/41z1 | Sensor voltage connector sleeve | 97E |
| Z7/43z1 | Sensor ground connector sleeve | 95G |
| Z7/44z1 | Sensor ground connector sleeve | 45L |
| Z7/44z2 | Sensor ground connector sleeve | 42L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 10L |
