Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97SEI

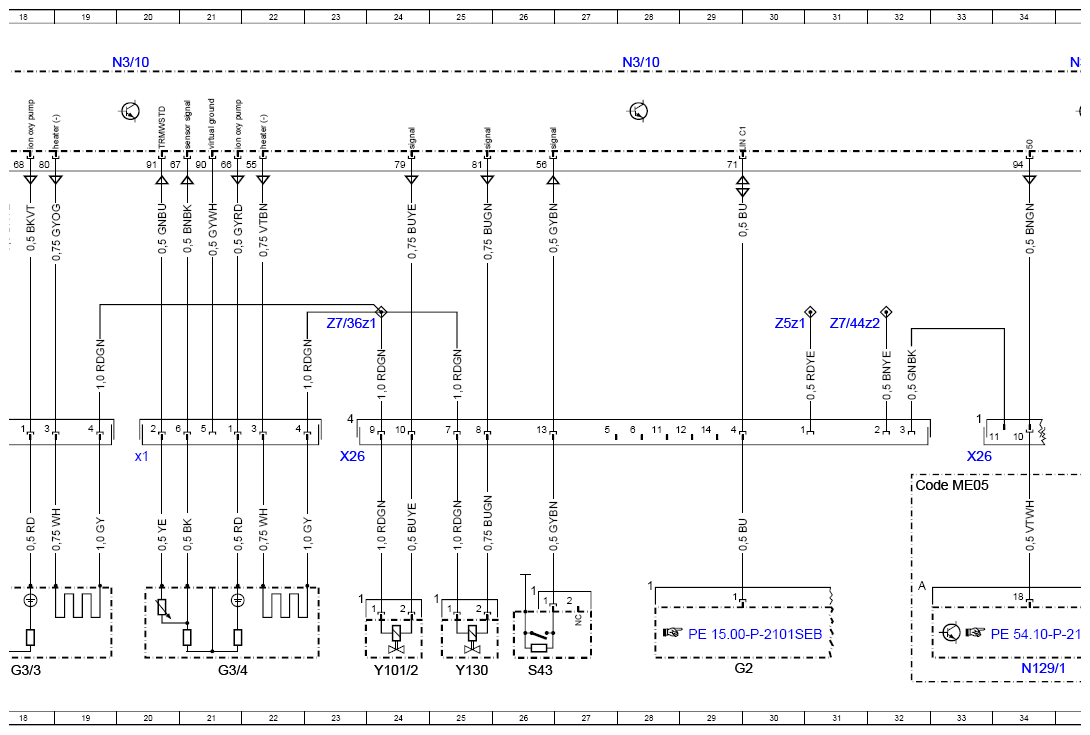

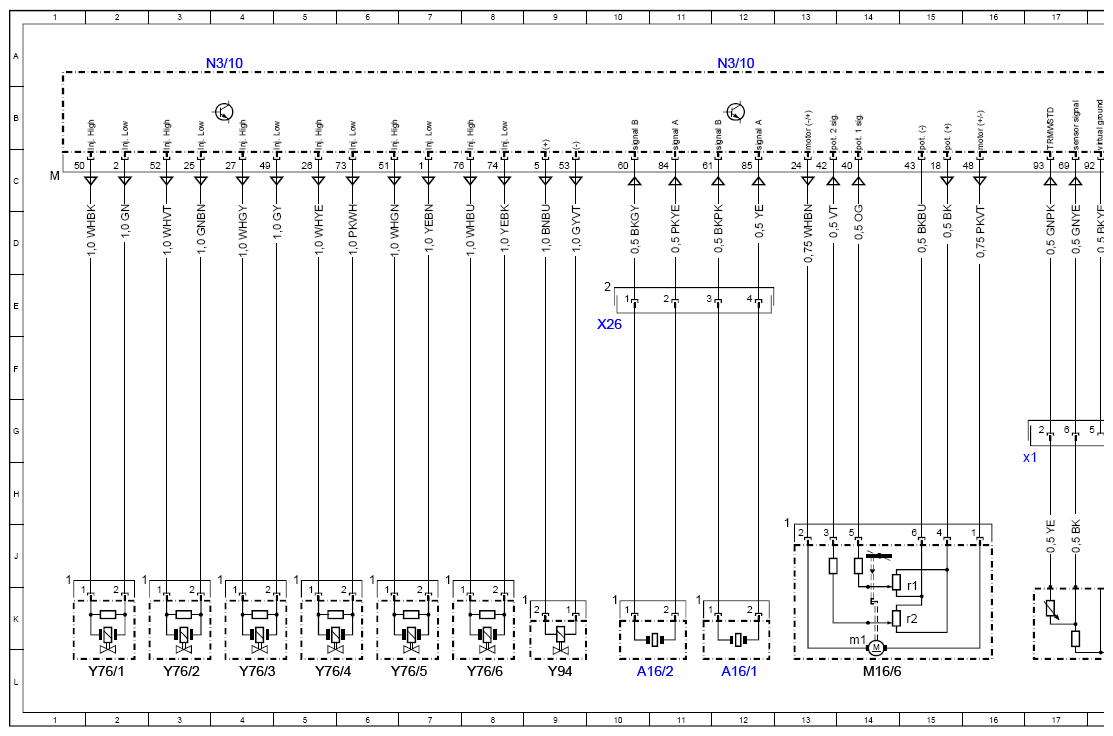

Engine 276.8 in model 222 up to model year 2018 Control unit N3/10, on the engine, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A16/1 | Knock sensor 1 | 12L |
| A16/2 | Knock sensor 2 | 10L |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 32H |
| G2 | Alternator | 29L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 18L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 17H |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 21L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 20H |
| M16/6 | Throttle valve actuator | 14L |
| M16/6m1 | Actuator motor | 14K |
| M16/6r1 | Actual value potentiometer 1 | 15K |
| M16/6r2 | Actual value potentiometer 2 | 15K |
| N129/1 | Power electronics control unit | 34L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 35A |
| S43 | Oil level check switch | 26L |
| X26 | Interior and engine wiring harness electrical connector | 10E |
| X26 | Interior and engine wiring harness electrical connector | 23H |
| X26 | Interior and engine wiring harness electrical connector | 33H |
| Y101/2 | Right bypass air switchover valve | 24L |
| Y130 | Engine oil pump valve | 25L |
| Y76/1 | Cylinder 1 fuel injector | 2L |
| Y76/2 | Cylinder 2 fuel injector | 3L |
| Y76/3 | Cylinder 3 fuel injector | 4L |
| Y76/4 | Cylinder 4 fuel injector | 5L |
| Y76/5 | Cylinder 5 fuel injector | 7L |
| Y76/6 | Cylinder 6 fuel injector | 8L |
| Y94 | Quantity control valve | 9L |
| Z5z1 | Connector sleeve in wiring harness | 30E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 23E |
| Z7/44z2 | Sensor ground connector sleeve | 31E |
