Remove/Install Left High-Pressure Fuel Pump - AR07.02-P-1023MNL
Engine 176 in model 217, 222
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A | |
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it ii pressurized. | AS07.16-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||

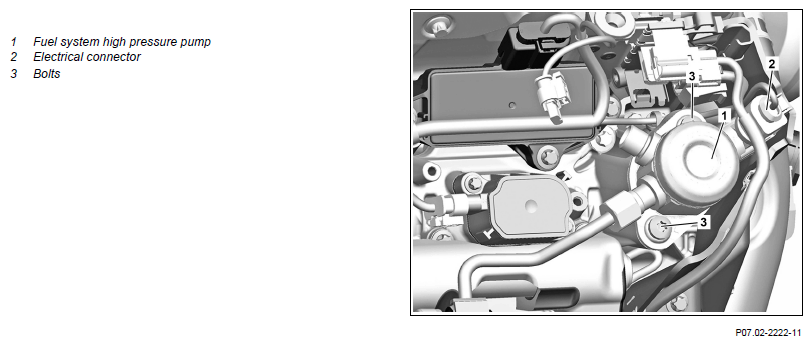

| 1 | Remove left high-pressure line | AR07.03-P-1001MNL | |
| 2 | Remove left low-pressure line from cylinder head cover and fuel high-pressure pump (1) and place left low-pressure line with service connection with connected hose connection to one side | AR07.03-P-1121MNL | |
| 3 | Release and disconnect electrical connector (2) | ||
| 4 | Clean area around fuel high-pressure pump (1) | Thoroughly clean area around fuel high-pressure pump (1) at points to be disconnected. Failure can occur otherwise to the fuel system Assembly cleaner |
*BR00.45-Z-1028-04A |
| 5 | Remove screws (3) and remove fuel high-pressure pump (1) in upward direction | Remove/screw in screws (3) alternately by, in each case, half a turn. Fuel high-pressure pump (1) will otherwise be damaged. |
*BA07.02-P-1001-01E |
| 6 | Install in the reverse order | ||
| 7 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| 8 | Check fuel high-pressure circuit for leaktightness | AR07.03-P-1010-04MM | |
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | |||
| 9 | Perform an engine test run and check engine for proper operation and leak tightness | Secure vehicle to prevent it from starting off b} itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 10 | Install upper engine cover |
INJECTION PUMP, HIGH-PRESSURE FUEL PUMP
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA07.02-P-1001-01E | Bolt, fuel system high pressure pump to cylinder head | Nm | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
