Remove/Install Lower Coolant Expansion Reservoir For Low-Temperature Circuit - AR09.41-P-0060MNP

Engine 176 in model 217, 222

with large lower coolant expansion reservoir for low-temperature circuit

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install

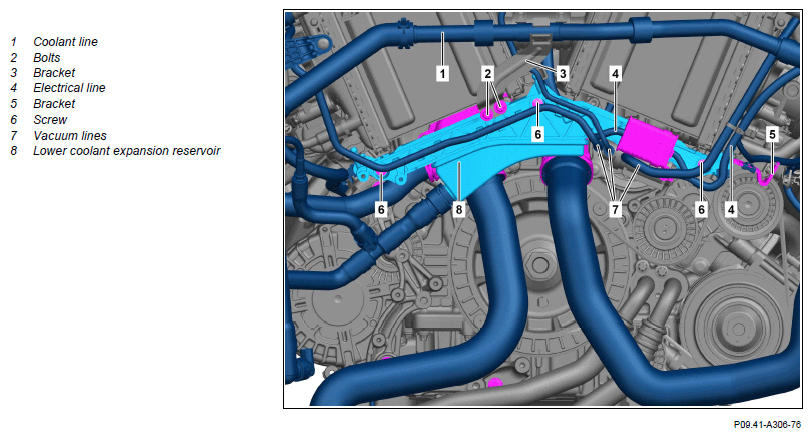

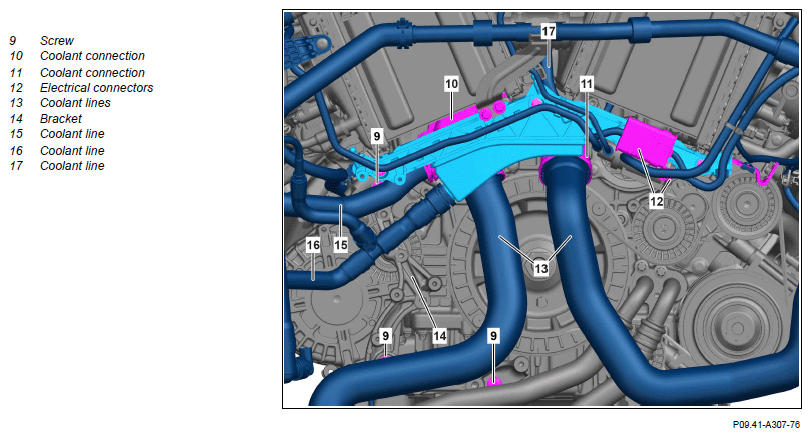

1	Remove fan unit.		AR20.40-P-5050MNL
2	Remove coolant lines (13) at coolant connections (10, 11).		AR20.20-P-7441-01RQ
3	Remove clamping device for poly-V-belt of the alternator.		AR13.20-P-0010MNL
4	Unscrew screws (9) and remove bracket (14).	Bolt, belt tensioner bracket to crankcase/oil pan	*BA13.25-P-1004-01CA
5	Unscrew screws and remove coolant connection (11).	:  Replace sealing ring.
		M6X1	*BA00.10-P-1002-03A
		Assembly tool	Fig 1
6	Remove vacuum lines (7) from lower coolant expansion reservoir (8).
7	Remove coolant line (1) from bracket (3).
8	Remove screws (2) and remove bracket (3).	M6X1	*BA00.10-P-1002-03A
9	Remove vacuum lines (7) at pressure transducer and seal openings with suitable stop plugs.	Record plug	Fig 4
10	Release and disconnect electrical connectors (12).
11	Remove electric lines (4) and electrical connector (12) at lower coolant expansion reservoir (8) and at bracket (5).	Dismantling tool	Fig 2
12	Remove coolant line (16) from lower coolant expansion reservoir (8) and drain low-temperature circuit coolant.		AR09.41-P-6834MNL
		:  Only fill low-temperature circuit coolant after installation of fan unit.
13	Seal openings using suitable protective covers.	Set of protective covers	Fig 3
14	Remove coolant line (15) from coolant connection (10).		AR20.20-P-7441-01RQ
15	Remove screws (6).	Screw, low-temperature circuit expansion reservoir at bottom to charge air cooler/crankcase/cylinder head cover holder	*BA09.41-P-1010-01X
16	Remove lower coolant expansion reservoir (8) until coolant line (17) at lower coolant expansion reservoir (8) is accessible.	Do not crush, kink or subject coolant line (17) to tension. This will result in damage to coolant line (17) and can impair its function.
17	Remove coolant line (17) at lower coolant expansion reservoir (8) and seal openings with suitable stop plugs.		AR20.30-P-0010-02XGA
		Record plug	Fig 4
	Check
18	Check elastomer bearings of charge air coolers for damage.	:  Wet elastomer bearings at charge air coolers wet with lubricant.
		Lubricant, rubber assembly 1 L If damage is present: ↓ Replace appropriate elastomer bearing.	*BR00.45-Z-1010-06A
19	Remove pressure transducer at lower coolant expansion reservoir (8).	When replacing lower coolant expansion reservoir (8).
			AR09.41-P-2004MNL
20	Remove bracket (5).	When replacing lower coolant expansion reservoir (8).
21	Install in the reverse order.

Fig 1: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Protective Covers (001 589 11 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
