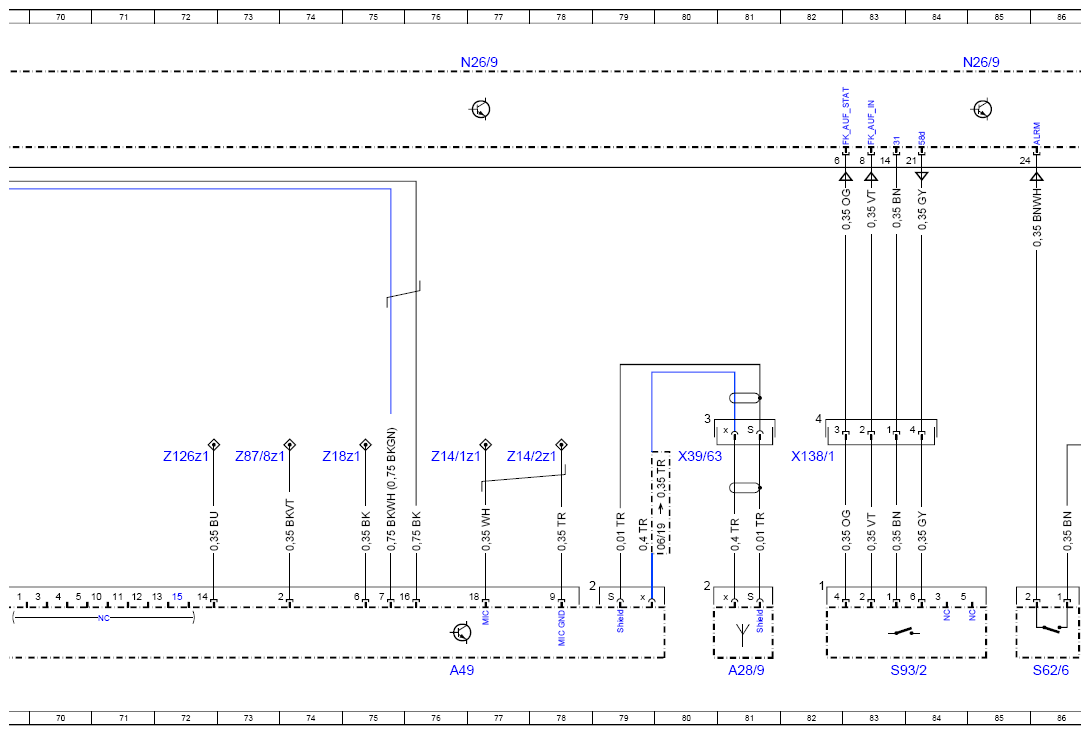

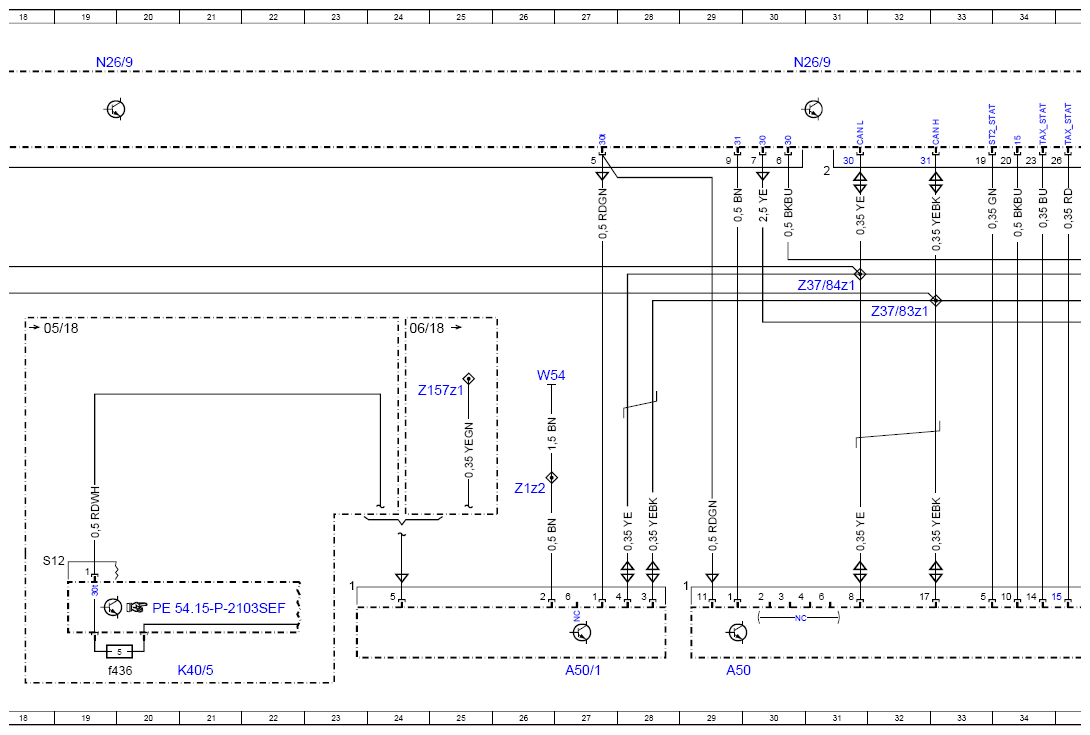

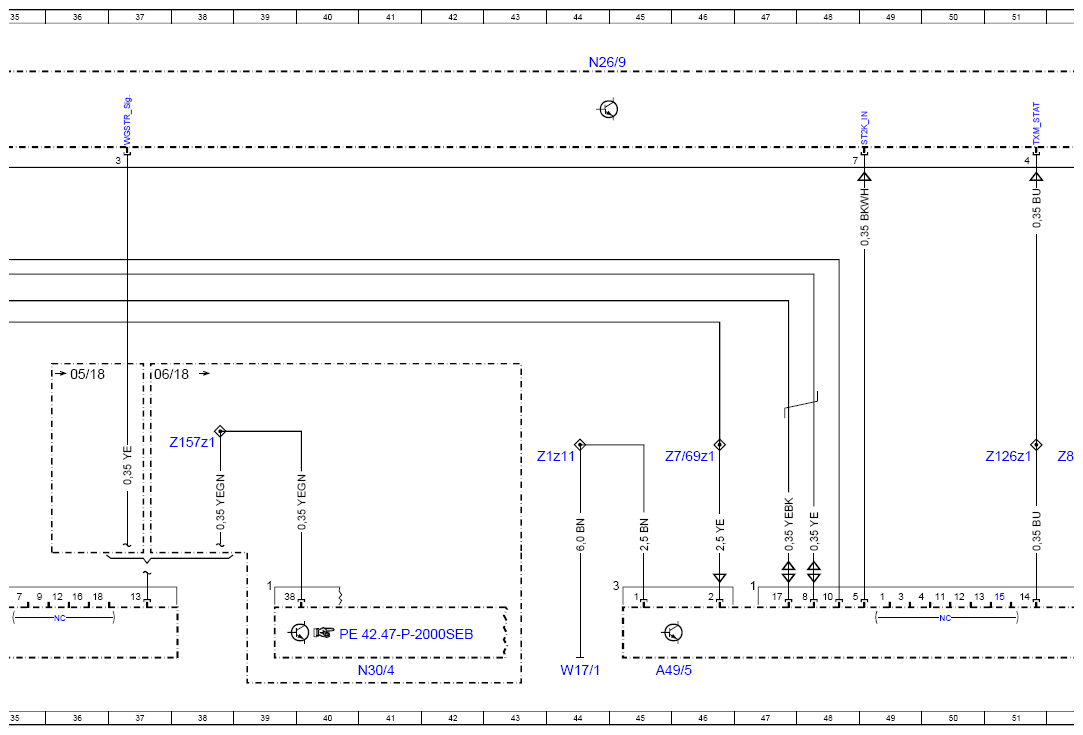

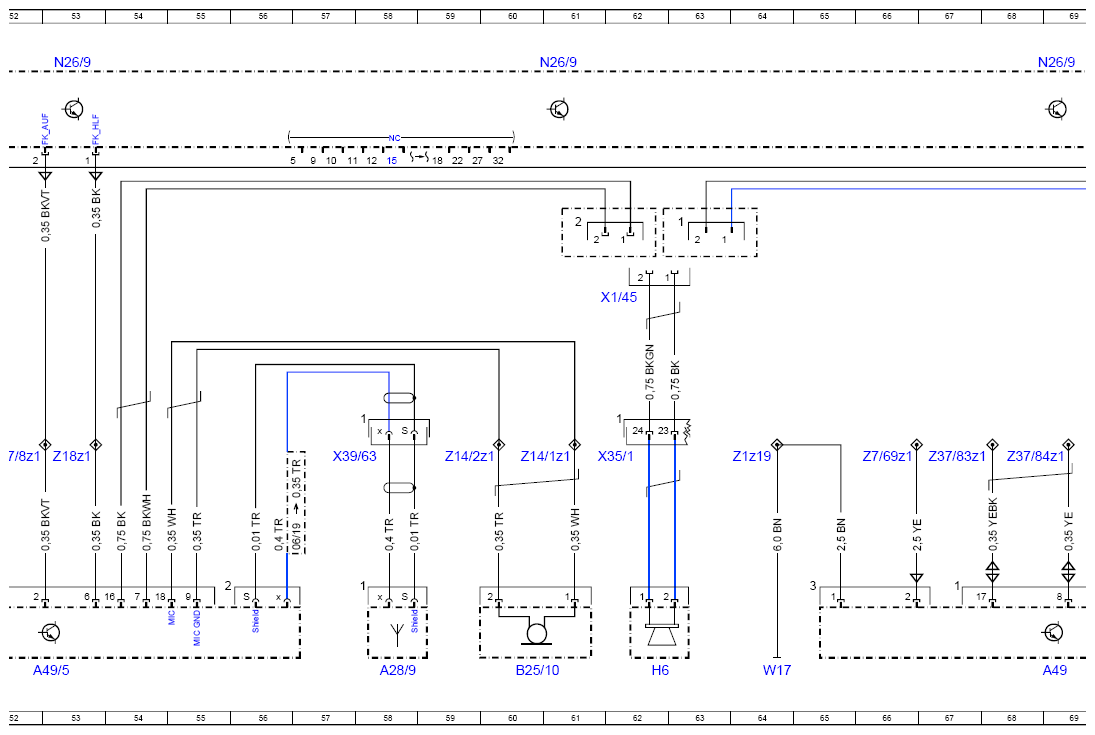

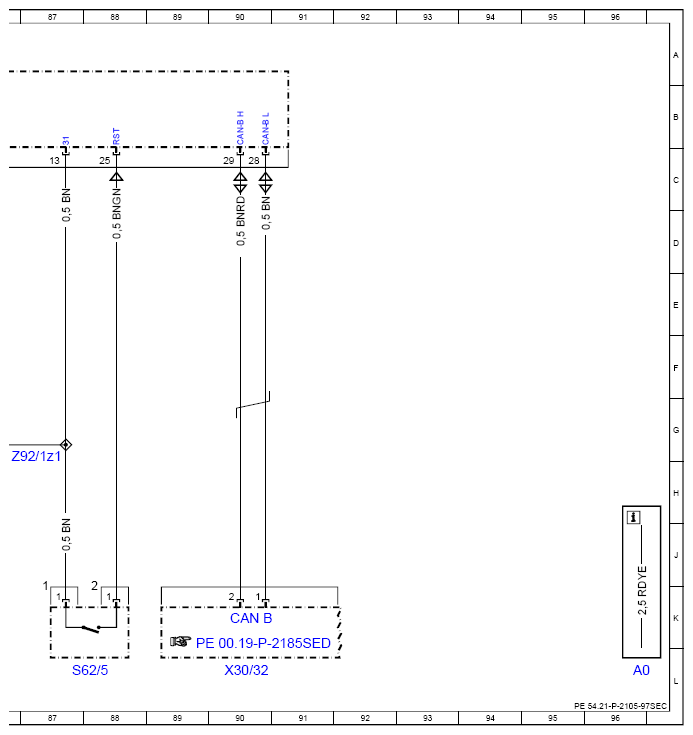

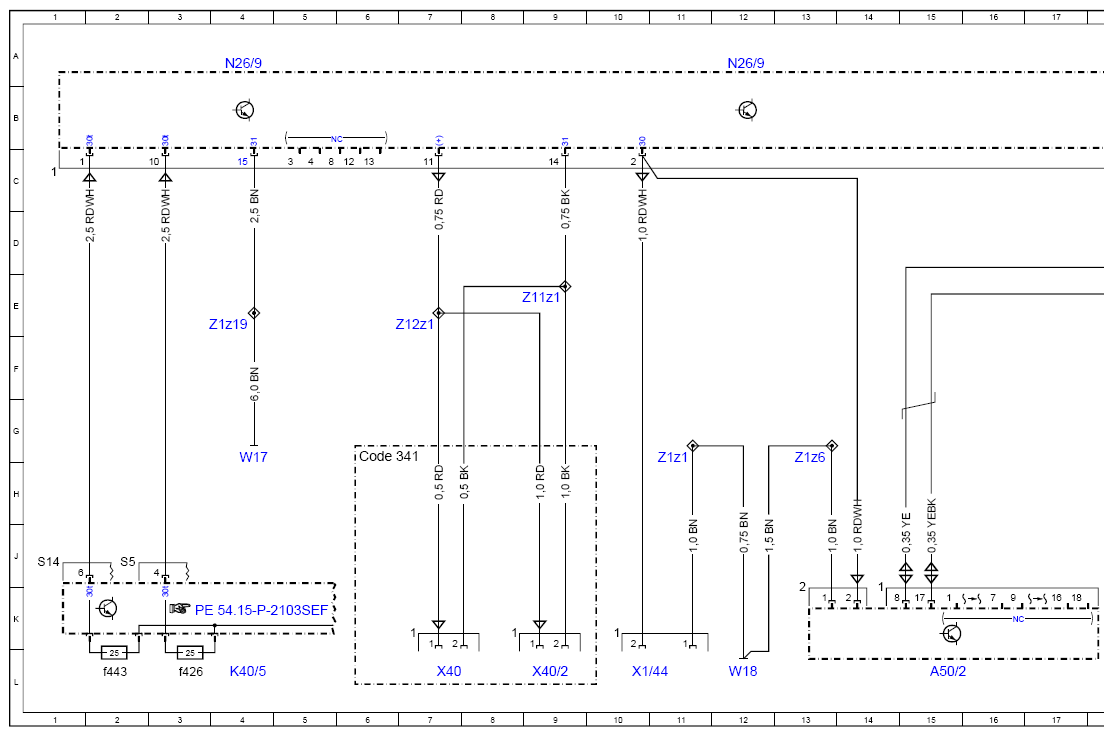

Wiring Diagram, Special Vehicle Multifunction Control Unit (SVMCU (MSS)) - PE54.21-P-2105-97SEC
Model 222 as of model year 2018 with code 965 (Taxi/rental car - electrical pre-installation) Control unit N26/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A28/9 | Two-way radio roof antenna | 58L |
| A28/9 | Two-way radio roof antenna | 81L |
| A49 | Two-way radio | 69L |
| A49 | Two-way radio | 76L |
| A49/5 | Radio data transmission two-way radio | 45L |
| A49/5 | Radio data transmission two-way radio | 52L |
| A50 | Taximeter | 29L |
| A50/1 | Mirror taximeter | 27L |
| A50/2 | Card reader and printer | 15L |
| B25/10 | Two-way radio microphone | 60L |
| CAN B | Interior CAN | 90K |
| Code 341 | Taxi roof sign | 6G |
| H6 | Taxi two-way radio speaker | 62L |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5 | Rear fuse and relay module | 21L |
| K40/5f426 | Fuse 426 | 3L |
| K40/5f436 | Fuse 436 | 19L |
| K40/5f443 | Fuse 443 | 2L |
| N26/9 | Special-purpose vehicle multifunction control unit | 4A |
| N26/9 | Special-purpose vehicle multifunction control unit | 12A |
| N26/9 | Special-purpose vehicle multifunction control unit | 19A |
| N26/9 | Special-purpose vehicle multifunction control unit | 30A |
| N26/9 | Special-purpose vehicle multifunction control unit | 44A |
| N26/9 | Special-purpose vehicle multifunction control unit | 53A |
| N26/9 | Special-purpose vehicle multifunction control unit | 61A |
| N26/9 | Special-purpose vehicle multifunction control unit | 69A |
| N26/9 | Special-purpose vehicle multifunction control unit | 77A |
| N26/9 | Special-purpose vehicle multifunction control unit | 85A |
| N30/4 | Electronic Stability Program control unit | 41L |
| S62/5 | Emergency alarm system "Cancel" button | 87L |
| S62/6 | Emergency alarm system "Trigger" button | 86L |
| S93/2 | Two-way radio switch | 83L |
| W17 | Right rear seat ground point | 4H |
| W17 | Right rear seat ground point | 64L |
| W17/1 | Left rear seat ground point | 44L |
| W18 | Left front seat crossmember ground point | 12L |
| W54 | Right rear wheel well ground point | 26F |
| X1/44 | Taxi peripheral device electrical connector | 10L |
| X1/45 | Two-way radio speaker electrical connector | 62E |
| X138/1 | Front center console electrical connector | 82H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 90L |
| X35/1 | Driver door electrical connector | 62H |
| X39/63 | Taxi two-way radio antenna electrical connector | 57H |
| X39/63 | Taxi two-way radio antenna electrical connector | 80H |
| X40 | Roof sign lamp electrical connector | 7L |
| X40/2 | International roof sign electrical connector | 9L |
| Z11z1 | Roof sign lamp circuit 31 connector sleeve | 9E |
| Z126z1 | Taximeter status connector sleeve | 51G |
| Z126z1 | Taximeter status connector sleeve | 72G |
| Z12z1 | Roof sign lamp power supply connector sleeve | 7E |
| Z14/1z1 | Microphone connector sleeve (+) | 61G |
| Z14/1z1 | Microphone connector sleeve (+) | 76G |
| Z14/2z1 | Microphone connector sleeve (-) | 59G |
| Z14/2z1 | Microphone connector sleeve (-) | 78G |
| Z157z1 | Travel distance connector sleeve | 25F |
| Z157z1 | Travel distance connector sleeve | 38G |
| Z18z1 | Emergency call connector sleeve | 53G |
| Z18z1 | Emergency call connector sleeve | 74G |
| Z1z1 | Connector sleeve 2 in wiring harness | 11G |
| Z1z11 | Circuit 31 connector sleeve | 44G |
| Z1z19 | Circuit 31 connector sleeve | 4E |
| Z1z19 | Circuit 31 connector sleeve | 64G |
| Z1z2 | Circuit 31 connector sleeve | 26H |
| Z1z6 | Circuit 31 connector sleeve | 13G |
| Z37/83z1 | Special-purpose vehicle multifunction control unit CAN bus (high) connector sleeve | 32E |
| Z37/83z1 | Special-purpose vehicle multifunction control unit CAN bus (high) connector sleeve | 67G |
| Z37/84z1 | Special-purpose vehicle multifunction control unit CAN bus (low) connector sleeve | 31E |
| Z37/84z1 | Special-purpose vehicle multifunction control unit CAN bus (low) connector sleeve | 68G |
| Z7/69z1 | Two-way radio circuit 30 connector sleeve | 46G |
| Z7/69z1 | Two-way radio circuit 30 connector sleeve | 66G |
| Z87/8z1 | Two-way radio cut-in connector sleeve | 52G |
| Z87/8z1 | Two-way radio cut-in connector sleeve | 73G |
| Z92/1z1 | Emergency alarm circuit 31 connector sleeve | 87G |
