Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEL
Model 217 up to model year 2018 X62/6(1), X62/7(1), X62/32(1), X62/33(1)
Model 222 up to model year 2018 X62/6(1), X62/7(1), X62/32(1), X62/33(1)
| Code: | Designation: | Position: |
|---|---|---|

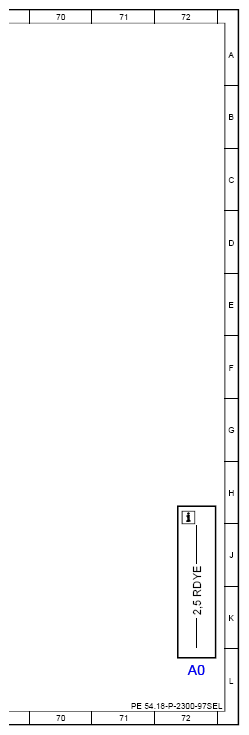

| A0 | Use of wiring diagrams | 72L |
| A6 | Stationary heater unit | 64A |
| Code 489 | AIRMATIC | 1A |
| Code 489 | AIRMATIC | 16A |
| Code 489 | AIRMATIC | 27A |
| Code 489 | AIRMATIC | 42A |
| L6/1 | Left front axle rpm sensor | 23L |
| L6/2 | Right front axle rpm sensor | 8L |
| L6/3 | Left rear axle rpm sensor | 34L |
| L6/4 | Right rear axle rpm sensor | 50L |
| M76/2 | Right electric parking brake actuator motor | 39L |
| M76/2 | Right electric parking brake actuator motor | 54L |
| N10/6 | Front SAM control unit | 14A |
| N10/8 | Rear SAM control unit | 60A |
| N128 | Electric parking brake control unit | 40A |
| N128 | Electric parking brake control unit | 55A |
| N30/4 | Electronic Stability Program control unit | 9A |
| N30/4 | Electronic Stability Program control unit | 24A |
| N30/4 | Electronic Stability Program control unit | 35A |
| N30/4 | Electronic Stability Program control unit | 51A |
| N51/3 | AIRMATIC control unit | 4A |
| N51/3 | AIRMATIC control unit | 19A |
| N51/3 | AIRMATIC control unit | 30A |
| N51/3 | AIRMATIC control unit | 46A |
| S10/2 | Right front brake wear sensor | 13L |
| S10/2x1 | Right front brake wear sensor electrical connector | 12K |
| S10/4 | Right rear brake wear sensor | 59L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 58K |
| U12 | Valid for left-hand drive vehicles | 14H |
| U1217 | Valid for model series 217 | 65F |
| U1222 | Valid for model series 222 | 67F |
| U13 | Valid for right-hand drive vehicles | 14H |
| W7 | Right wheelhouse trunk ground point | 65L |
| W7 | Right wheelhouse trunk ground point | 67L |
| W85/1 | Driver footwell frame floor assembly ground point | 15L |
| W85/2 | Front passenger footwell frame floor assembly ground point | 15L |
| X18/7 | Vehicle interior and engine compartment electrical connector | 12E |
| X62/32 | Rear axle electrical connector, left distributor | 28H |
| X62/33 | Rear axle electrical connector, right distributor | 43H |
| X62/6 | Front axle electrical connector, right distributor | 2H |
| X62/7 | Front axle electrical connector, left distributor | 17H |

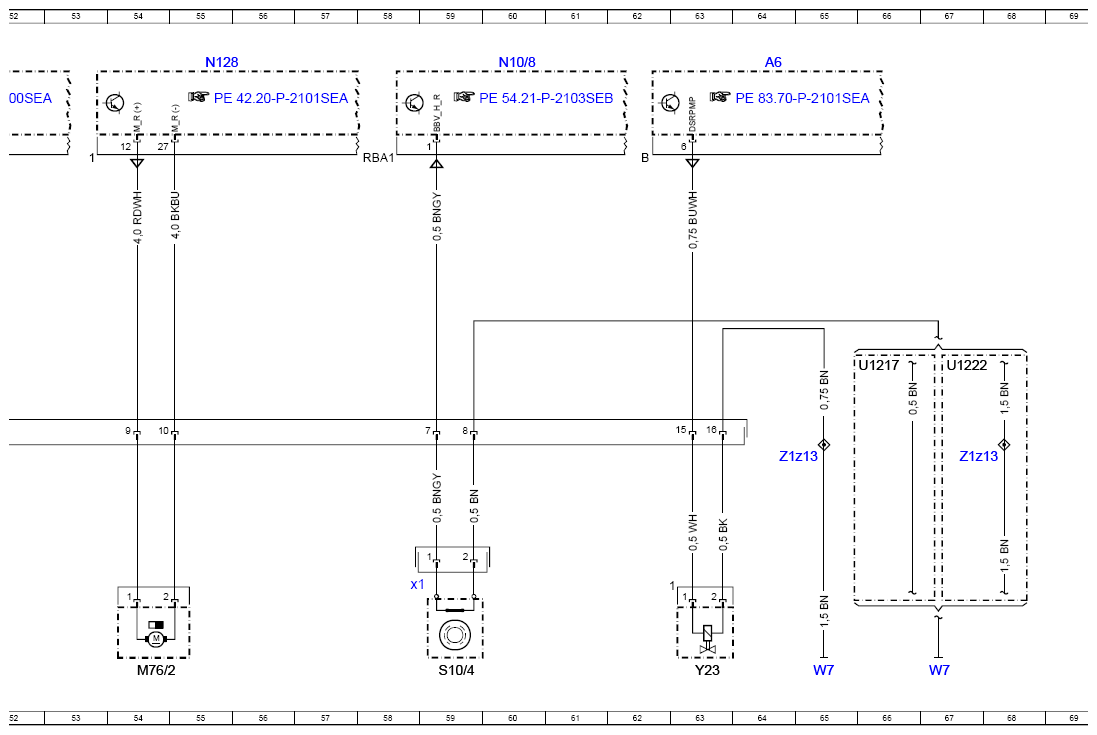

| Y23 | Stationary heater fuel pump | 63L |

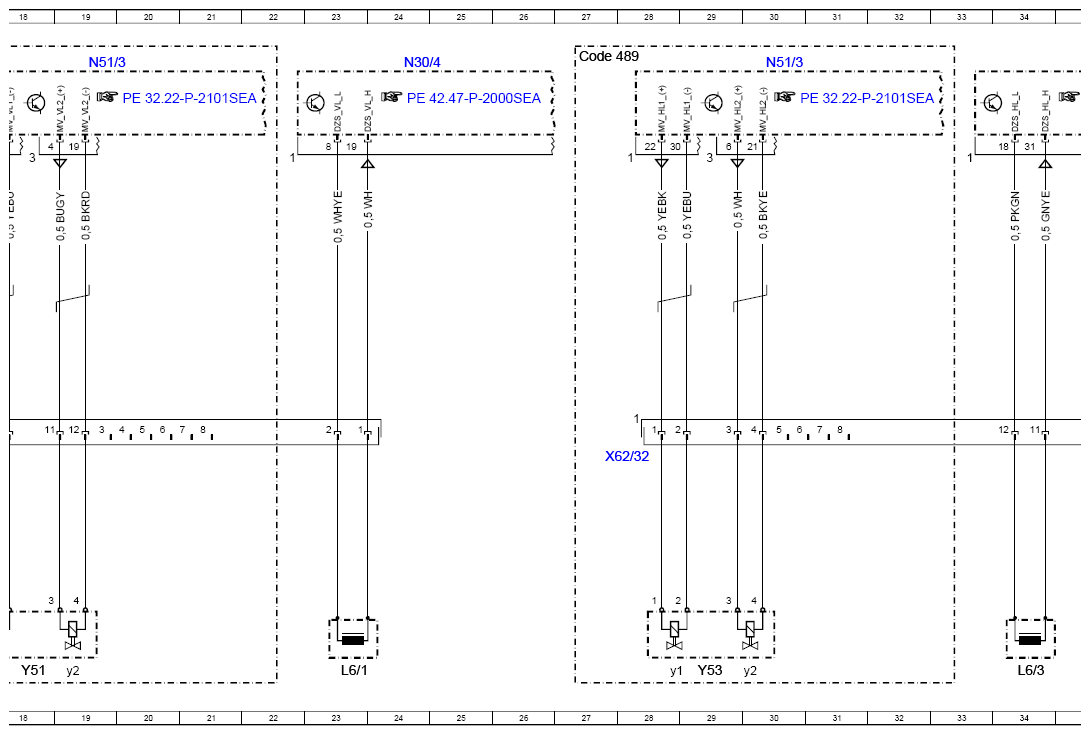

| Y51 | Left front axle damping valve unit | 18L |
| Y51y1 | Solenoid valve 1, front left | 18L |
| Y51y2 | Solenoid valve 2, front left | 19L |

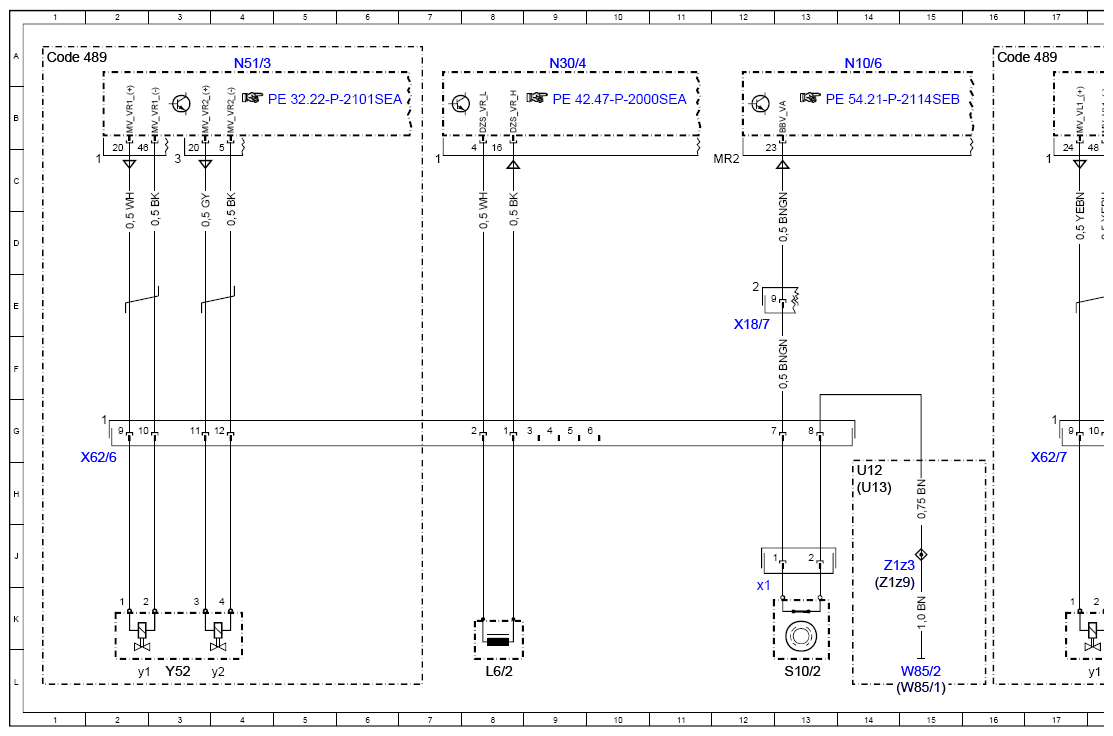

| Y52 | Right front axle damping valve unit | 3L |
| Y52y1 | Solenoid valve 1, front right | 2L |
| Y52y2 | Solenoid valve 2, front right | 4L |
| Y53 | Left rear axle damping valve unit | 29L |
| Y53y1 | Solenoid valve 1, rear left | 28L |
| Y53y2 | Solenoid valve 2, rear left | 30L |

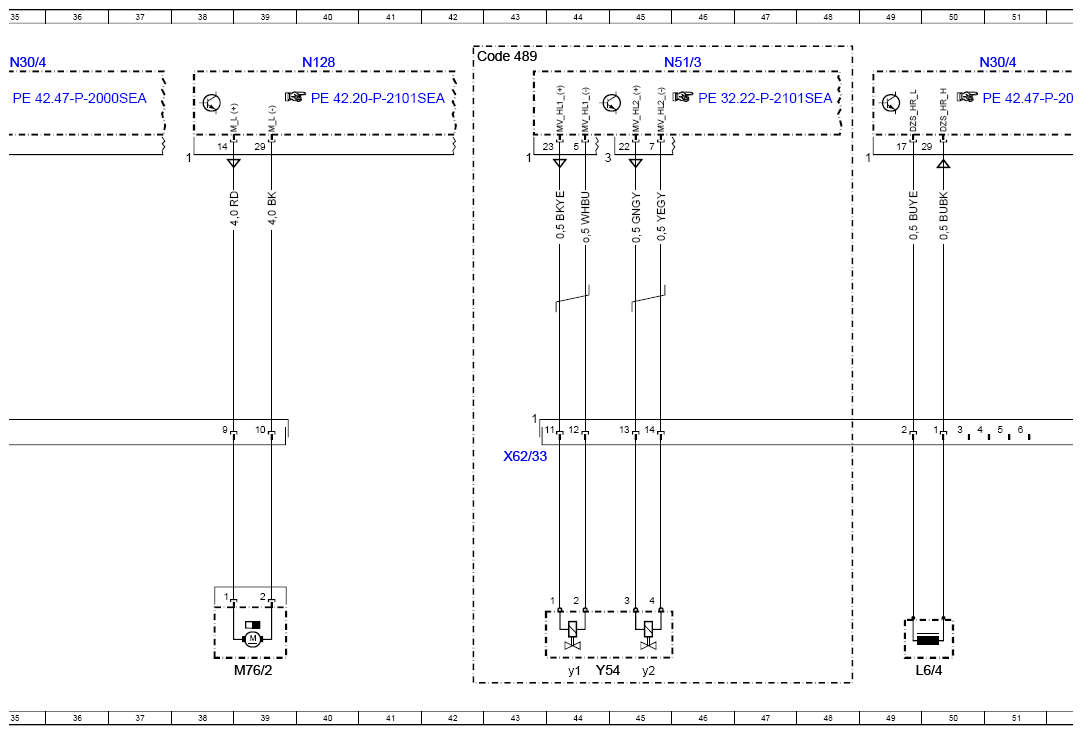

| Y54 | Right rear axle damping valve unit | 44L |
| Y54y1 | Solenoid valve 1, rear right | 44L |
| Y54y2 | Solenoid valve 2, rear right | 45L |
| Z1z13 | Circuit 31 connector sleeve | 65G |
| Z1z13 | Circuit 31 connector sleeve | 67G |
| Z1z3 | Circuit 31 connector sleeve | 15J |
| Z1z9 | Circuit 31 connector sleeve | 14J |
