Replace Night View Assist Camera Lens - AR54.30-P-2999LF

Model 217, 222, 231

With Code 610 (Night view assist)

Shown On model 222

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove radiator grille	Model 222 with code 610 (Night view assist)
			AR88.40-P-4001LF
1.2	Remove Night View Assist infrared camera 2 (B84/11)	Model 231 with code 610 (Night view assist)
			AR54.30-P-3008LFA
		Install camera lens (8) parallel to front of vehicle.
1.3	Remove front bumper	Model 217 with code 610 (Night view assist)
			AR88.20-P-2000LC

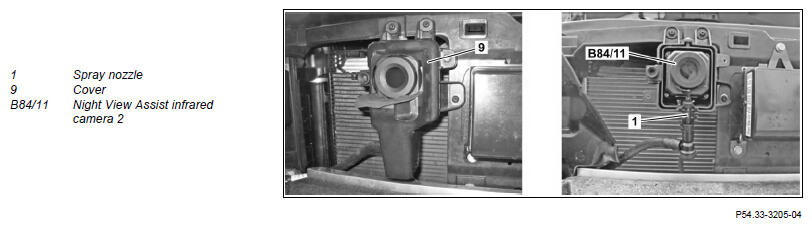

2	Remove cover (9)	Model 222 with code 610 (Night view assist)
3	Unclip spray nozzle (1) and place to one side	Model 217, 222 with code 610 (Night view assist)
			AD00.00-P-2000-04B
		Check the spray pattern of the spray nozzle (1) using the diagnostic system.
4	Clean surface around Night View Assist infrared camera 2 (B84/11)

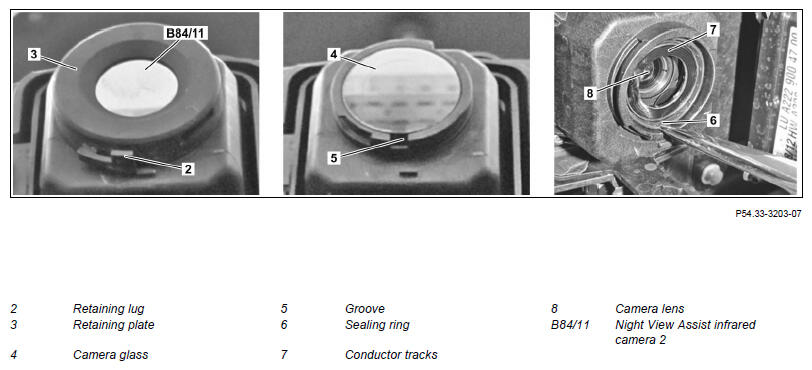

5	Release retaining lug (2), turn retaining plate (3) counterclockwise and take off	Replace retaining plate (3).
		Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
6	Pry out camera glass (4) at the groove (5) carefully	Wear gloves. Otherwise the Night View Assist infrared camera 2 (B84/11) can get damaged due to particles of dust or grease. Pay attention to the direction of installation of the camera glass (4). The protective foil must face toward the outside. Remove the protective foil. Replace the camera glass (4); install making sure that it is free of dust and grease.
		Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
7	Remove sealing ring (6) using a suitable tool (e.g. tweezers)	Do not touch the conductor tracks (7) or the camera lens (8). The Night View Assist infrared camera 2 (B84/11) can get damaged otherwise.
		Replace sealing ring (6). Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
	Clean
8	Clean contact surface of sealing ring (6)	With cleaning swabs provided.
		Repair kit for Night View camera IR	*BR00.45-Z-1019-08A
		Windshield washer fluid	*BR00.45-Z-1077-04A
9	Install in the reverse order
