Remove/Install Switch Panel - AR54.25-P-1001LF
Model 222.0/1/9
With Code 235 (Active Parking Assist with PARKTRONIC)
Model 222.0/1/9
With Code 238 (Active lane keeping Assist)
Model 222.0/1/9
With Code 266 (Steer Assist)
Model 222.0/1/9
With Code 501 (360° camera)
Model 222.0/1/9
With Code 610 (Night view assist)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

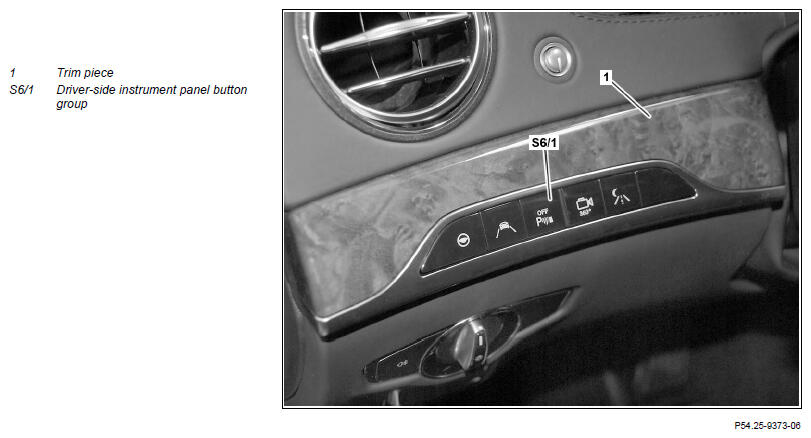

| 2 | Remove left trim piece (1) from steering wheel | AR68.10-P-1180LF | |

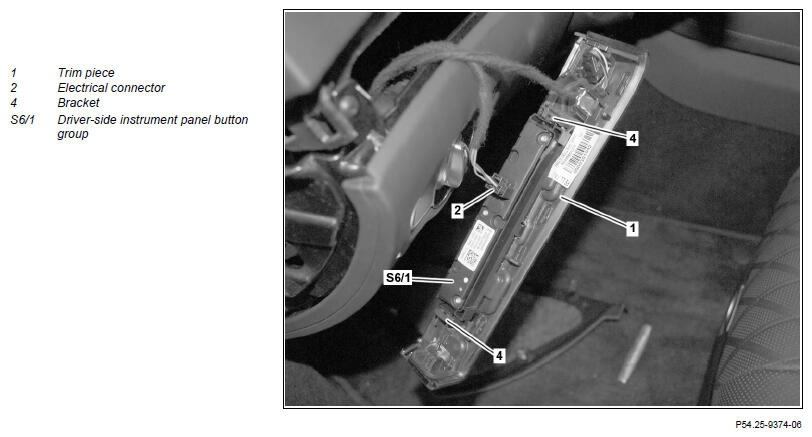

| 3 | Separate electrical connection (2) from driver-side instrument panel button group (S6/1) | ||
| 4 | Release bracket (4) and remove instrument panel button group on driver side (S6/1) from trim piece (1) | ||
| 5 | Install in the reverse order |
