Remove/Install Start/Stop Button - AR54.25-P-4001LFM
Model 222
as of model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003LF | |

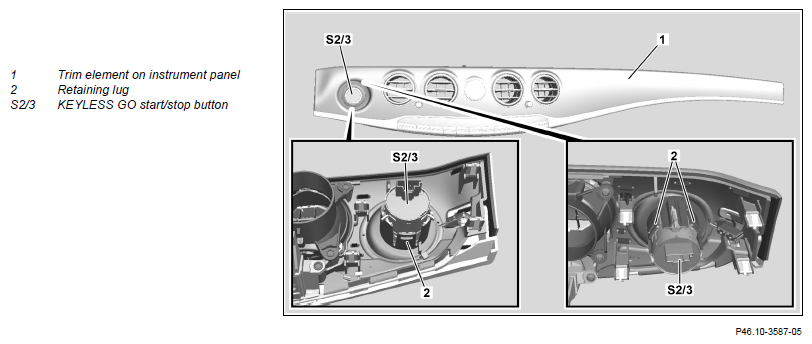

| 2 | Remove trim piece from instrument panel (1) | AR68.10-P-1180LF | |
| 3 | Release retaining lugs (2) | ||
| 4 | Remove KEYLESS-GO start/stop button (S2/3) towards the rear | ||
| 5 | Install in the reverse order |
