Remove/Install Long-Range Infrared Camera For Night View Assist - AR54.30-P-3008LF
Model 222
With Code 610 (Night view assist)
MODIFICATION NOTES
| 26.09.2017 | Document validity changed. | Operation steps 1 to 9. |
Shown On model 222 up to model year 2018

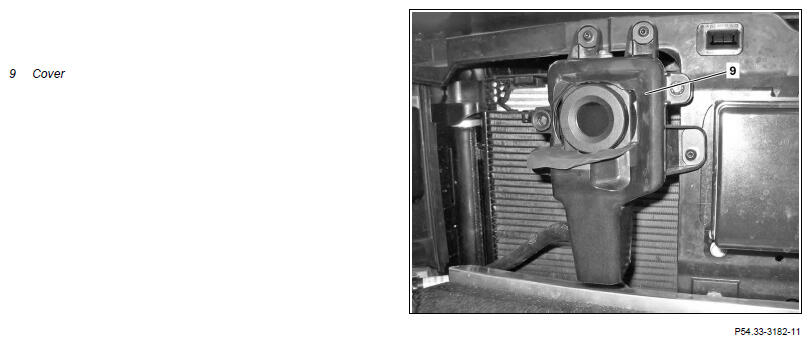

Fig 1: Long-Range Infrared Camera For Night View Assist Components Location - Model 222 With Code 610 (Shown Up To Model Year 2018)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove radiator grille | AR88.40-P-4001LF | |
| 3 | Remove cover (9) | Model 222 (except 222.964/967/976/980/982/983/984/985/986) as of model year 2018 with code 610 (Night view assist) Model 222 up to model year 2018 with code 610 (Night view assist) |
|
| 4 | Unclip spray nozzle (1) and place to one side | ||
| AD00.00-P-2000-04B | |||
| 5 | Release and disconnect electrical connection (2) | ||
| 6 | Unscrew screws (4) and remove Night View Assist infrared camera 2 (B84/11) with holder | ||
| 7 | Unscrew screws (3) and remove Night View Assist infrared camera 2 (B84/11) from holder | When replacing Night View Assist infrared camera 2 (B84/11). |
|
| 8 | Install in the reverse order | ||
| Finishing activity | |||
| 9 | Calibrate Night View Assist infrared camera 2 (B84/11) and infrared camera (B84) using vehicle diagnosis system | When replacing Night View Assist infrared camera 2 (B84/11) or its holder. | |
| AD00.00-P-2000-04B | |||

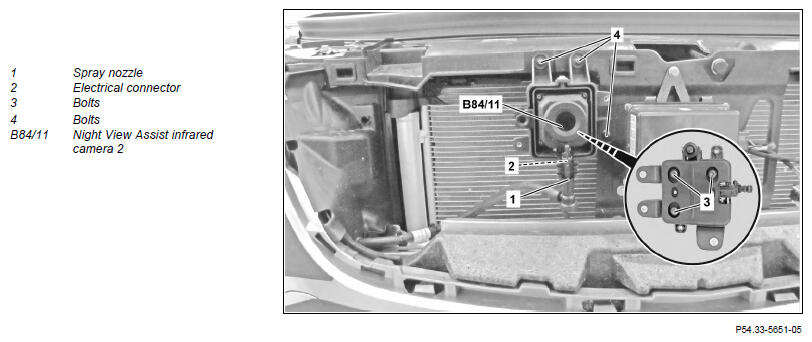

| Fig 2 |
