Remove/Install Left Front Engine Compartment Fuse And Relay Module - AR54.15-P-1257LF
Model 217, 222

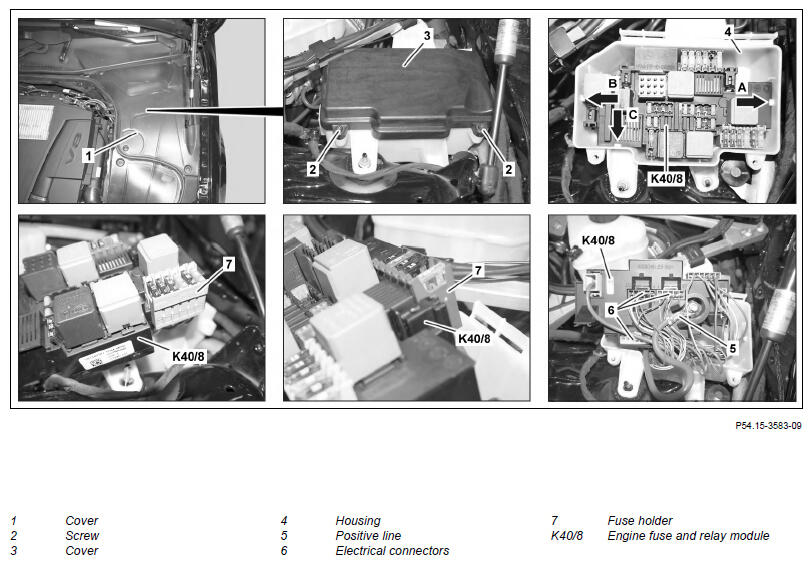

Fig 1: Left Front Engine Compartment Fuse And Relay Module Components Location - Model 222 (Shown On Model 222)
Shown On Model 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LF | |
| 2 | Open engine hood | ||
| 3 | Remove cover (1) | ||
| 4 | Remove screws/bolts (2) and remove cover (3) | ||
| 5 | Unlock catch hooks (arrows A, B, C) on housing (4) and remove engine fuse and relay module (K40/8) from the housing (4) and turn it around | ||
| 6 | Remove positive line (5) from engine fuse and relay module (K40/8) | *BA54.15-P-1005-01J | |
| 7 | Separate electrical connectors (6) | ||
| 8 | Unclip fuse holder (7) from engine fuse and relay module (K40/8) | ||
| 9 | Remove engine fuse and relay module (K40/8 | ||
| 10 | Install in the reverse order |
FUSE AND RELAY BOX
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA54.15-P-1005-01J | Nut, positive terminal to engine fuse and relay module | M8 | Nm | 16 | 16 |
