Remove/Install Front Central Operating Unit - AR54.21-P-0500LF
Model 217
Model 222
MODIFICATION NOTES
| 12.10.2020 | Document revised. | Operation steps 1 to 8 |

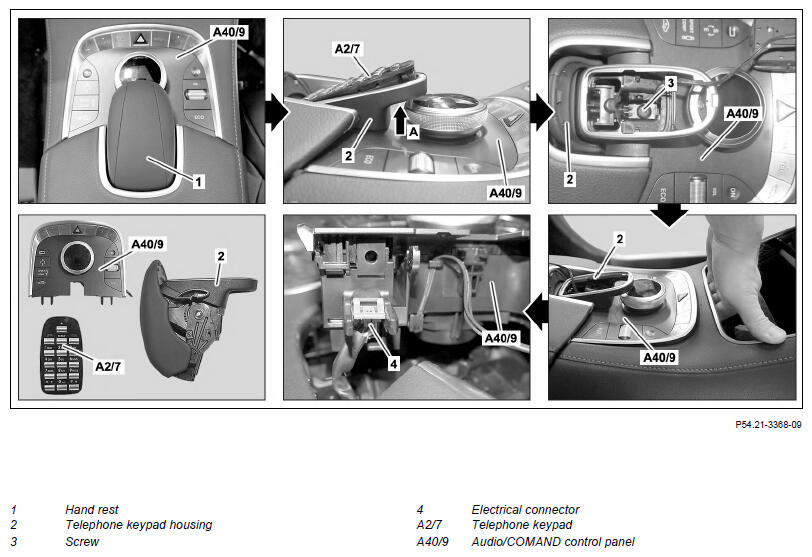

Fig 1: Front Central Operating Unit/Audio/COMAND Control Panel Components Location - Model 222 (Shown On Model 222.032)
Shown On model 222.032
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open front cover on center console. | ||
| 3 | Remove cup holder. | Model 217, 222 with code 310 (Double cup holder) |
|
| 4 | Remove touchpad (A105). | Model 217 with code 448 (Touchpad) Model 222 with code 448 (Touchpad) |
AR54.21-P-0503LF |
| 5 | Open hand rest (1), unclip telephone keypad (A2/7) through the opening (arrow A) from the housing for the telephone keypad (2) and detach electrical connector from telephone keypad (A2/7). | Model 217, 222 except code 446 (Touchpad only) except code 448 (Touchpad) |
|
| 6 | Remove bolt (3). | Model 217, 222 except code 446 (Touchpad only) except code 448 (Touchpad) |
|
| 7 | Grasp with hand between cover of center console stowage tray and center console, then push Audio/COMAND control panel (A40/9) upwards. | ||
| 8.1 | Lift up Audio/COMAND control panel (A40/9) until electrical connector (4) is accessible. | Model 217, 222 with code 448 (Touchpad) |
|
| 8.2 | Lift up Audio/COMAND control panel (A40/9) together with touchpad (A105) until electrical connector (4) and electrical connector on touchpad (A105) are accessible. | Model 217, 222 with code 446 (Touchpad only) |
|
| 8.3 | Lift up Audio/COMAND control panel (A40/9) together with telephone keypad housing (2) until electrical connector (4) is accessible. | Model 217, 222 except code 446 (Touchpad only) except code 448 (Touchpad) |
|
| 9.1 | Release and disconnect electrical connector (4). | Model 217, 222 except code 446 (Touchpad only) |
|
| 9.2 | Release and disconnect electrical connector at touchpad (A105) and electrical connector (4). | Model 217, 222 with code 446 (Touchpad only) |
|
| 10 | Install in the reverse order. |
