Remove/Install Fanfare Horns - AR54.35-P-1555LF
Model 222
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | ||

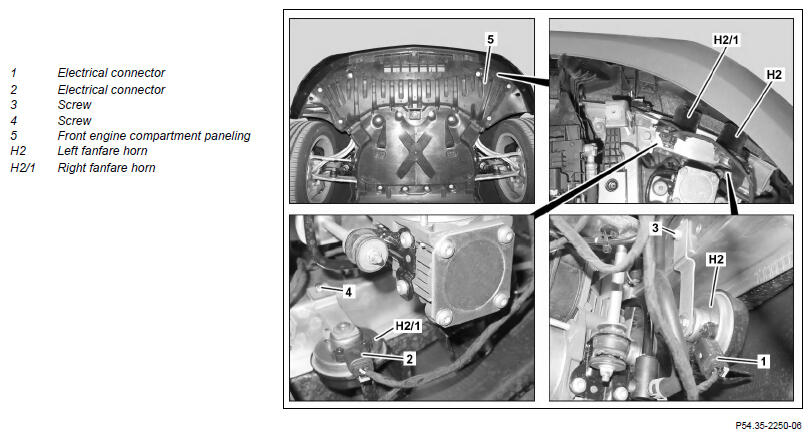

| 2 | Release fender liner in left front fender far enough to gain access to the left horn (H2) or right horn (H2/1) | MODEL 222 with CODE 487 (Active Body Control (ABC)) when removing left horn (H2) |
|
| AR88.10-P-1300LF | |||
| 3 | Remove front engine compartment paneling (5) | MODEL 222 with CODE 487 (Active Body Control (ABC)) when removing right horn (H2/1) |
|
| AR61.20-P-1105LF | |||
| 4 | Disconnect electrical connection (1) | When removing left horn (H2). | |
| 5 | Disconnect electrical connector (2) | When removing right horn (H2/1). | |
| 6 | Remove bolt (3) and remove left horn (H2) | When removing left horn (H2). | |
| *BA54.35-P-1001-01F | |||
| 7 | Remove bolt (4), then remove right horn (H2/1) | When removing right horn (H2/1). | |
| *BA54.35-P-1001-01F | |||
| 8 | Install in the reverse order |
SIGNALING SYSTEM
| Number | Designation | MODEL 222 | |
|---|---|---|---|
| BA54.35-P-1001-01F | Bolt, horn to crossmember | Nm | 8 |
