Remove/Install Charger Feed Socket Flap - AR54.10-P-5110LFH

Model 222.163/173

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
Topical note	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
Topical note	Notes on battery		AH54.10-P-0001-01A
	Notes on HANDS-FREE ACCESS	Model 222.163/173 with code P17 (KEYLESS-GO package)	AH80.61-P-0001-01A
	Remove
1	Switch off ignition and keep transmitter key outside transmitter range (at least 2 m)
2.1	Unplug charger cable plug from charger feed socket	If the charger cable plug is plugged in.

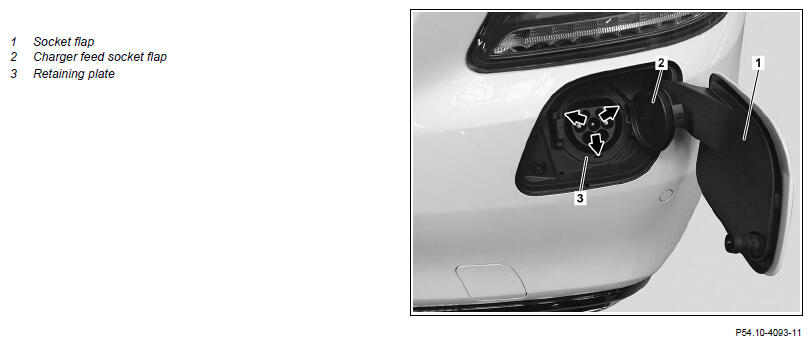

2.2	Open socket flap (1) in the rear bumper	If the charger cable plug is not plugged in. After activating the high voltage on-board electrical system, the socket flap (1) can no longer be opened!
3	Open the charger feed socket flap (2)
4	Remove the charger feed socket flap (2)	Release catches (arrows) on retaining plate (3) using a suitable tool and remove retaining plate (3) with charger feed socket flap (2).
	Install
5	Install the charger feed socket flap (2)	Position retaining plate (3) with charger feed socket flap (2) on charger feed socket and press down until catches (arrows) engage.
6	Close the charger feed socket flap (2)
7	Close socket flap (1) in the rear bumper
