Remove/Install Additional Fan For Instrument Cluster/COMAND Display - AR54.30-P-6000LF
Model 217, 222.0/1/9
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim under instrument panel on left | AR68.10-P-1500LF | |

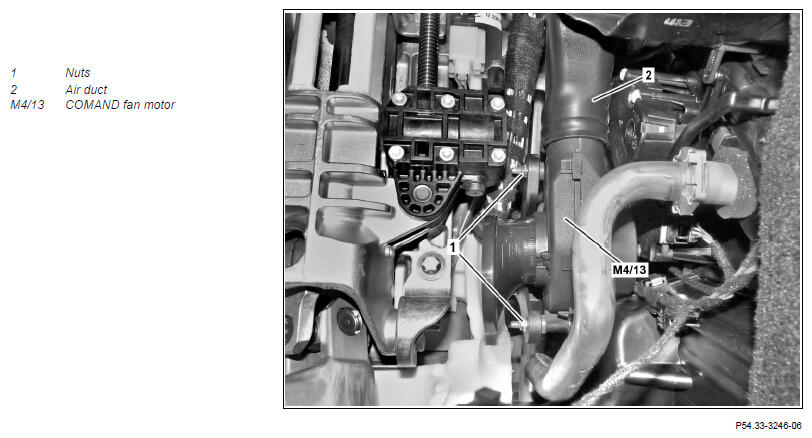

| 2 | Unscrew nuts (1) | ||
| 3 | Release COMAND fan motor (M4/13) far enough until the electrical connection is accessible | ||
| 4 | Separate electrical connection of the COMAND fan motor (M4/13) | ||
| 5 | Remove COMAND fan motor (M4/13) | ||
| 6 | Install in the reverse order |
