Emergency Release Of Charging Cable Plug At Charger Feed Socket - AR54.10-P-5111LFH
Model 222.163/173
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Topical note | General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | |
| Topical note | Notes on battery | AH54.10-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | Model 222.163/173 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Emergency release | |||
| 1 | Unlock vehicle and manually open the trunk lid | ||

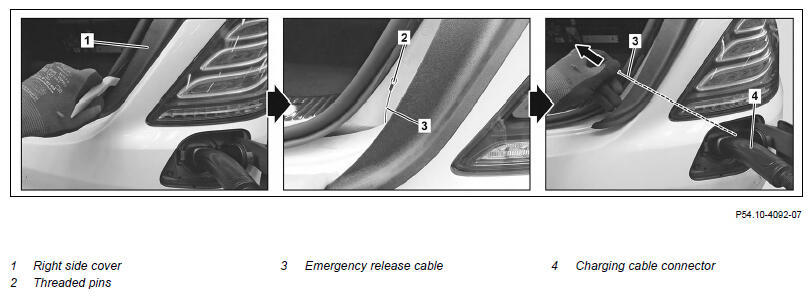

| 2 | Carefully pry off cover at right side (1) from threaded pin (2) towards rear | Fig 1 | |
| 3 | Remove emergency release cable (3) from threaded pin (2) | ||
| 4 | Pull emergency release cable (3) in direction of the arrow and unplug the charging cable connector (4) from the charger feed socket | ||
| 5 | Plug emergency release cable (3) onto threaded pin (2) | ||
| 6 | Press cover at right side (1) onto threaded pin (2) | ||
| 7 | Close charger feed socket flap | ||
| 8 | Close socket flap in the bumper |
