Check On-Board Electrical System Battery For 48 Volt On-Board Electrical System, When Removed, For Transportability - AR54.10-P-0048ME

Model 167, 192, 205, 206, 213, 214, 218, 222, 223 (except 223.182), 232, 236, 238, 253, 254, 257, 290, 293

With Code B01 (48V technology)

Courtesy of MERCEDES-BENZ USA

	Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Check
1	Print out analysis sheet.
	Analysis sheet for lithium-ion battery 48 V, form	Model 167, 205, 206, 213, 223 (except 223.182), 232, 238, 253, 254, 257, 290 with code B01 (48V technology)	OF54.10-P-3000-15FR
2	Check hazard potential of on-board electrical system battery (2).	When replacing the on-board electrical system battery (2). In the event of smoke generation or fire, the fire department must be notified. The analysis sheet must be used to check whether the on-board electrical system battery (2) presents an acute hazard.	AR47.70-P-0017-01A
3	Check housing of on-board electrical system battery (2) for mechanical damage.	The analysis sheet must be used to check whether there is damage to the on-board electrical system battery (2) causing electrolyte to leak out. If there is an electrolyte leakage. ↓ Notify MPC/general representative.	AR47.70-P-0017-02A

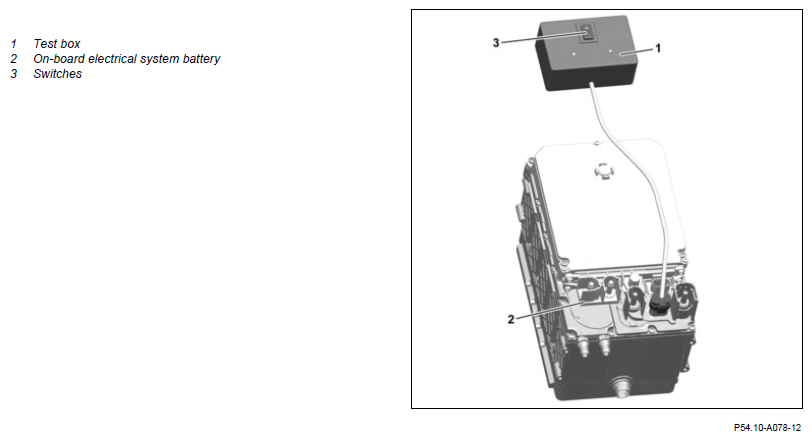

4	Connect test box (1) to on-board electrical system battery (2).
	000 588 08 19 00 Test box	Model 167, 205, 206, 213, 218, 222, 223 (except 223.182), 232, 238, 253, 254, 257, 290, 293 with code B01 (48V technology)	WS54.00-P-0069B
5	Set switch (3) to position "1".	The "POWER" lamp must light up.
6	Check flash code of "TEST" lamp.	The "TEST' lamp flashes (1 s ON, 1 s OFF): on-board electrical system battery (2) is safe for transportation. The "TEST" lamp flashes (0.1 s ON, 1 s OFF): on-board electrical system battery (2) is not safe for transportation. If the on-board electrical system battery (2) is not safe for transportation, ↓ set switch (3) to position "0", disconnect test box (1) and repeat test after 70 min. If the on-board electrical system battery (2) is not safe for transportation, ↓ contact responsible MPC/general distributor.
7	Set switch (3) to position "0".
8	Disconnect test box (1).
