Control/Warning Messages, Function - GF54.30-P-2001LF
Model 217, 222
Function requirements in general
- Circuit 15R ON
The electronic ignition lock control unit (N73) transmits the status of circuit 15 via the user interface CAN (CAN HMI) to the instrument cluster (A1).
Control/warning messages, general

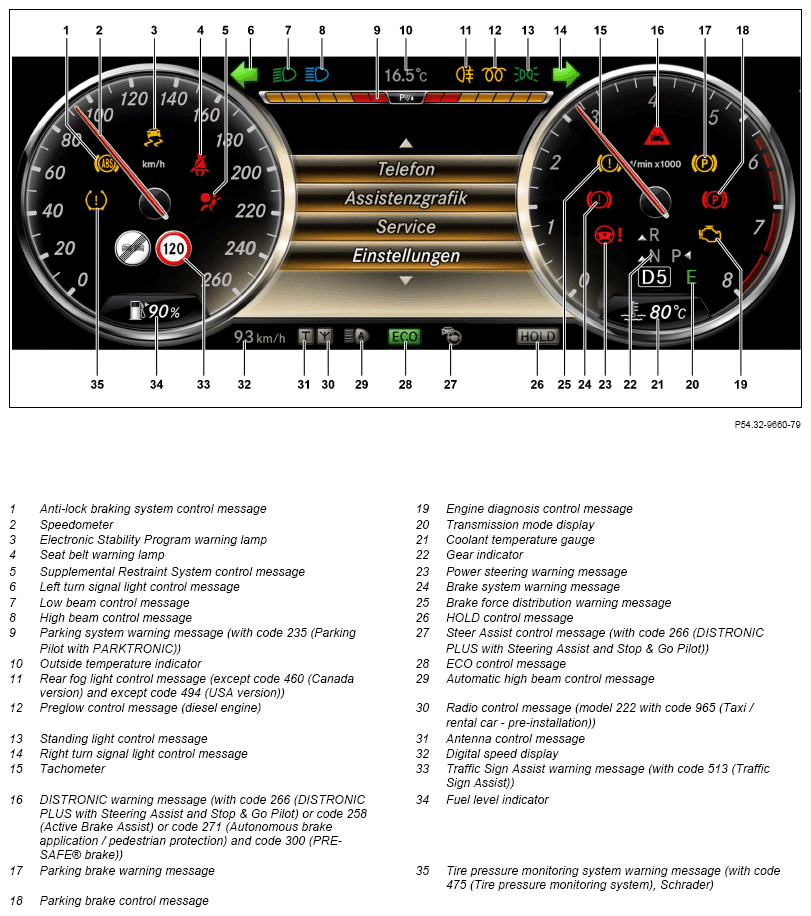

The instrument cluster notifies the driver of the function or the status of the systems installed in the vehicle in the form of control and warning messages.
These messages can be issued optically and acoustically on the instrument cluster display through actuation of the instrument cluster speaker (H4/61) in the driver footwell.
Text messages or pictograms can be shown on the instrument cluster display.
Control messages are shown in green, yellow, red or blue.
Warning messages are shown in red.
Shown on model 222.032 (Economic Commission for Europe (ECE) national version) up to 31.05.2017
Model 222.004/057/104/157/163/173
The instrument cluster also displays the energy flow, charge level, output and the READY control message.
Model 217, 222 with engine 157, 279
The instrument cluster also displays the transmission oil temperature and the engine oil temperature.
Function sequence for control/warning messages
The messages shown on the instrument cluster are split up into four categories according to their level of urgency:
Category 1 (messages with highest priority):
Category 1 messages refer to states and situations which impair safety, and they take priority over messages with lower priority. These messages are displayed within a maximum period of t = 2 s after they occur, are stored automatically in the message memory and cannot be acknowledged. When they occur, a brief acoustic warning is sounded on the instrument cluster speaker.
Category 2 (messages with medium priority):
Category 2 messages require intervention from the driver and appear with a time delay of a maximum of t = 2 s. These messages also include operating feedback. Category 2 messages can be acknowledged. When they occur, a brief acoustic warning is sounded on the instrument cluster speaker.
Category 3 and 4 (messages with low priority):
These messages are shown in the menu and they are only for providing information to the driver (e.g. low washer fluid level). No warning chime is emitted.
Messages with low priority are overlaid by messages with high priority. If several messages with the same priority occur, the message currently displayed is overlaid by the new message after the minimum display time has elapsed.
The instrument cluster is connected to the vehicle electronics system via user interface CAN. Requests to issue control and warning messages from control units that are connected to these CANs, are read in by the instrument cluster over the user interface CAN. The electronic ignition lock control unit sends requests to output control and warning messages from control units that are connected to one of the following CANs via user interface CAN to the instrument cluster:
- Interior CAN (CAN B)
- Diagnostic CAN (CAN D)
- Periphery CAN (CAN PER)
- Suspension FlexRay (Flex E)
Requests to issue control and warning messages from control units connected to one of the following CANs are sent by the powertrain control unit (N127) over the chassis FlexRay, electronic ignition lock control unit and the user interface CAN to the instrument cluster:
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
- Hybrid CAN (CAN L)
Requests to issue control and warning messages from control units connected to the drive train sensor CAN (CAN I), are sent by the CDI control unit or the ME-SFI [ME] control unit over the engine CAN, powertrain control unit, suspension FlexRay, electronic ignition lock control unit and the user interface CAN to the instrument cluster.
The systems and functions listed in the table below can request the output of control and warning messages via the corresponding control unit.
| System/Function | Control unit | Connection | Output | ||
|---|---|---|---|---|---|
| Control message | Display | Acoustic | |||
| Exhaust aftertreatment | AdBlue® control unit (N118/5) (engine 642 with code U77 (BLUETEC (SCR) diesel exhaust treatment)), engine 654) | CAN I/CAN C/Flex E/CAN HMI | - | x | - |
| ADAPTIVE BRAKE | Electronic Stability Program control unit (N30/4) | Flex E/CAN HMI | Anti-lock braking system control message, Electronic Stability Program warning message, brake system warning message, brake force distribution warning message | x | - |
| Adaptive Highbeam Assist (with code P35 (Light Package)) | Front SAM control unit (N10/6) | CAN B/CAN HMI | High beam control message | x | - |
| Active Brake Assist with cross-traffic function (with code 23P (Driving Assistance Package)) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217)) | Mercedes-Benz Intelligent Drive control unit (N62/4) | Flex E/CAN HMI | - | x | x |
| Active Blind Spot Assist (with code P20 (Driving Assistance Plus Package) or code 23P (Driving Assistance Package)) | Mercedes-Benz Intelligent Drive control unit (N62/4) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217) with code 23P (Driving Assistance Package)) Radar sensors control unit (N62/1) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217) with code P20 (Driving Assistance Plus Package)) | Flex E/CAN HMI | - | - | x |
| Active Lane Keeping Assist (with code P20 (Driving Assistance Plus Package) or code 23P (Driving Assistance Package)) | Stereo multifunction camera (A40/13) | Flex E/CAN HMI | - | x | - |
| Active Lane Keeping Assist (with code 243 (Active Lane Keeping Assist)) | Mono multifunction camera (A40/11) | CAN PER/CAN HMI | - | x | - |
| Trailer recognition (model 222 with code 550 (Trailer hitch)) | Trailer recognition control unit (N28/1) | CAN B/CAN HMI | - | x | - |
| Attention assistance system | Electronic Stability Program control unit (N30/4) | Flex E/CAN HMI | - | x | x |
| Audio/Navigation/Communication | Head unit (A26/17) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217)) COMAND controller unit (A40/3) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217)) | HMI CAN | - | x | - |
| Exterior lights (ABL) | Front SAM control unit (N10/6) | CAN B/CAN HMI | Low beam control message, high beams control message, rear fog light control message (except code 460 (Canada version) and except code 494 (USA version)), standing light control message | x | x |
| Left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | CAN PER/CAN HMI | x | - | ||
| Automatic transmission control | Fully integrated transmission control unit (Y3/8n4) | CAN C1/Flex E/CAN HMI | - | x | - |
| Brake Assist System PLUS (BAS PLUS) (with code P20 (Driving Assistance Plus Package)) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217)) | Radar sensors control unit (N62/1), stereo multifunction camera (A40/13) | Flex E/CAN HMI | - | - | x |
| Turn signal confirmation | Front SAM control unit (N10/6) | CAN B/CAN HMI | Left turn signal light control message, Right turn signal light control message | - | x |
| Brake fluid level | Front SAM control unit (N10/6) | CAN B/CAN HMI | Brake system warning message | x | - |
| Brakepad wear display | Front SAM control unit (N10/6) | CAN B/CAN HMI | - | x | - |
| COLLISION PREVENTION ASSIST (with code 258 (Active Brake Assist)) | Active Brake Assist controller unit (A108) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217)) COLLISION PREVENTION ASSIST controller unit (A90) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217)) | CAN PER/CAN HMI | - | x | x |
| Damping system (except CODE 487 (MAGIC BODY CONTROL)) | AIRMATIC control unit (N51/3) | Flex E/CAN HMI | - | x | - |
| Damping system (with CODE 487 (MAGIC BODY CONTROL)) | Active Body Control, control unit (N51/2) | Flex E/CAN HMI | - | x | - |
| Distance Pilot DISTRONIC (with code 233 (DISTRONIC PLUS)) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217)) or DISTRONIC PLUS (with code P20 (Driving Assistance Plus Package)) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217)) | Mercedes-Benz Intelligent Drive control unit (N62/4) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217) with code 23P (Driving Assistance Package)) Radar sensors control unit (N62/1) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217) with code P20 (Driving Assistance Plus Package)) | Flex E/CAN HMI | DISTRONIC warning message | x | x |
| Parking system (with code 235 (Parking Pilot with PARKTRONIC)) | Parking system control unit (N62) | Flex E/CAN HMI | Parking system warning message | x | x |
| Electrical power steering | Electrical power steering control unit (N68) | Flex E/CAN HMI | Brake system warning message | x | - |
| Electronic Stability Program (ESP®) | Electronic Stability Program control unit (N30/4) | Flex E/CAN HMI | ESP®/ASR warning message OFF (ESP® ON/OFF status) Electronic Stability Program warning message (ESP® system active) | x | - |
| Parking brake warning (up to 31.05.2017 (model 222) or 30.11.2017 (model 217)) | Electric parking brake control unit (N128) | CAN PER/CAN HMI | Brake system warning message | x | - |
| Windshield washer system fluid level | Front SAM control unit (N10/6) | CAN B/CAN HMI | - | x | - |
| Vehicle speed warning (Gulf States national version) | Instrument cluster (A1) | Internal | - | x | x |
| Automatic transmission fluid warning | Automatic transmission fluid auxiliary oil pump control unit (N89) | CAN C1/Flex E/CAN HMI | - | x | x |
| Seat belt reminder warning | Supplemental Restraint System control unit (N2/10) | HMI CAN | Seat belt warning lamp | - | x |
| Rear SAM control unit (N10/8) | CAN B/CAN HMI | - | - | x | |
| Active belt buckle control unit (N2/3) (model 222 with code 305 (PRE-SAFE, rear compartment)) | CAN B/CAN HMI | - | - | x | |
| HYBRID high-voltage on-board electrical system (model 222.004/057/104/157/163/173) | Power electronics control unit (N129/1), battery management system control unit (N82/2) | CAN L/Flex E/CAN HMI | READY control message | x | - |
| KEYLESS-GO | KEYLESS-GO control unit (N69/5) | CAN B/CAN HMI | - | x | - |
| Climate control | Climate control, control unit (N22/1) | CAN B/CAN HMI | - | x | x |
| Fuel level | Fuel system control unit (N118) | CAN C1/Flex E/CAN HMI | - | x | - |
| Coolant level | Front SAM control unit (N10/6) | CAN B/CAN HMI | - | x | - |
| Coolant temperature | CDI control unit (N3/9) (diesel engine) or ME-SFI [ME] control unit (N3/10) (gasoline engine) | CAN C/Flex E/CAN HMI | Coolant temperature gauge | x | - |
| Lights on warning | Front SAM control unit (N10/6) | CAN B/CAN HMI | - | x | x |
| Memory setting (with CODE 275 (Memory package), model 217) | Driver's seat control unit (N32/1), front passenger seat control unit (N32/2) | CAN B/CAN HMI | - | - | x |
| Right rear seat control unit (N32/5) or left rear seat control unit (N32/6) (model 222 with code 223 (Electrically adjustable rear bench seat)) | CAN B/CAN HMI | - | - | x | |
| Engine diagnosis | CDI control unit (N3/9) (diesel engine) or ME-SFI [ME] control unit (N3/10) (gasoline engine) | CAN C/Flex E/CAN HMI | Engine diagnosis control message | x | - |
| Engine oil level warning | CDI control unit (N3/9) (diesel engine) or ME-SFI [ME] control unit (N3/10) (gasoline engine) | CAN C/Flex E/CAN HMI | - | x | - |
| Night View Assist (with CODE 610 (Night View Assist)) | Night View Assist control unit (N101) | HMI CAN | - | x | - |
| Emergency call system (with CODE 348 (Emergency call/assist system)) | Emergency call system control unit (N123/4) | CAN D/CAN HMI | - | x | - |
| Emergency call system (with code 350 (eCall Europe emergency call system)) | Telematics services communications module (N112/2) | CAN D/CAN HMI | - | x | - |
| Emergency call system (with code 360 (HERMES UMTS) or code 362 (HERMES LTE)) | HERMES control unit (N112/9) | CAN D/CAN HMI | - | x | - |
| PRE-SAFE® | Left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1) | HMI CAN | Supplemental Restraint System control message | x | - |
| PRE-SAFE® brake (with code P20 (Driving Assistance Plus Package)) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217)) | Radar sensors control unit (N62/1) | Flex E/CAN HMI | - | x | x |
| Tire pressure monitoring system (with code 475 (Tire pressure monitoring system)) | Tire pressure monitor control unit (N88) | HMI CAN | Tire pressure monitoring system warning message | x | - |
| Tire pressure loss warning (with code 477 (Tire pressure loss warning)) | Electronic Stability Program control unit (N30/4) | Flex E/CAN HMI | - | x | - |
| Stationary heater (with CODE 228 (Stationary heater)) | Stationary heater control unit (A6n1) | CAN B/CAN HMI | - | x | - |
| Supplemental restraint system | Supplemental Restraint System control unit (N2/10) | HMI CAN | Supplemental Restraint System control message | x | - |
| Fuel cap warning (with code 494 (USA version)) | CDI control unit (N3/9) (diesel engine) or ME-SFI [ME] control unit (N3/10) (gasoline engine) | CAN C/Flex E/CAN HMI | Fuel reserve warning message | x | - |
| CRUISE CONTROL (except code P20 (Driving Assistance Plus Package) or code 23P (Driving Assistance Package)) | Electronic Stability Program control unit (N30/4) | Flex E/CAN HMI | Speedometer | x | x |
| CRUISE CONTROL (with code P20 (Driving Assistance Plus Package) or code 23P (Driving Assistance Package)) | Mercedes-Benz Intelligent Drive control unit (N62/4) (as of 01.06.2017 (model 222) or 01.12.2017 (model 217) with code 23P (Driving Assistance Package)) Radar sensors control unit (N62/1) (up to 31.05.2017 (model 222) or 30.11.2017 (model 217) with code P20 (Driving Assistance Plus Package)) | Flex E/CAN HMI | Speedometer | x | x |
| Doors OPEN warning | Front SAM control unit (N10/6), rear SAM control unit (N10/8), left front door control unit (N69/1), right front door control unit (N69/2), left rear door control unit (N69/3) (model 222), right rear door control unit (N69/4) (model 222) | CAN B/CAN HMI | - | x | x |
| Soft top warning (model 217.4) | Rear control unit (N22/6) | CAN B/CAN HMI | - | x | - |
| Traffic sign recognition (with code 513 (Traffic Sign Assist)) | Mono multifunction camera (A40/11) (except code P20 (Driving Assistance Plus Package)), Stereo multifunction camera (A40/13) (with CODE P20 (Driving assistance package Plus)) | CAN PER/CAN HMI, Flex E/CAN HMI | - | x | x |
| Preglow indicator (diesel engine) | CDI control unit (N3/9) | CAN C/Flex E/CAN HMI | Preglow control message | - | - |
Special case of country-dependent seat belt reminder warning:
If a seat belt is detected as not being worn directly before starting a journey or whilst traveling, then, depending on the country, the instrument cluster will issue an optical warning and a warning tone (seat belt warning).
The Supplemental Restraint System control unit (N2/10) sends information on the status of the driver and front passenger seat belts to the instrument cluster via user interface CAN.
The rear SAM control unit (N10/8) transmits information on the status of the rear seat belts via interior CAN, electronic ignition lock control unit and user interface CAN to the instrument cluster.
The instrument cluster evaluates this information for issuing a seat belt reminder warning.
The seat belt reminder message for the front passenger is only issued if the front passenger seat is occupied. The Supplemental Restraint System control unit sends information on the assignment of front passenger seat to the instrument cluster via user interface CAN. The rear passenger compartment seat belt warning is always issued from v = 6 km/h. After t = 5 s or acknowledgment, the rear passenger compartment seat belt warning is cleared. The output of the rear seat belt warning does not have any effect on the deployment of the restraint equipment; it only serves as information for the driver.
The way in which the seat belt reminder warning is output depends on whether the seat belt reminder warning is legally required or not and contributes to the assessment by the New Car Assessment Program (NCAP).
NCAP is a program for assessing the safety of new vehicles.
Countries with legally prescribed seat belt reminder:
Extended NCAP: USA and Canada.
Countries without seat belt reminder warning prescribed by law:
European New Car Assessment Program (Euro NCAP): Europe, China, Australia, Japan, Arab States of the Gulf and Korea. In countries in which the seat belt warning is prescribed by law (extended NCAP), the seat belt warning message is actuated for a duration of t = 6 ± 2 s. It is irrelevant here whether the driver seat belt is fitted or not. If the driver's seat belt is not fastened, the instrument cluster also outputs an acoustic warning over the instrument cluster speaker.
If the driver seat belt is fastened during this time, the acoustic warning is canceled.
There is no assessment here of whether the front passenger seat belt is fitted or not. The status of both seat belts is evaluated only after t = 6 s have elapsed.
As soon as engine start is detected ("Engine running" signal or "Drive train ready" set), information on the status of seat belts for driver and front passenger is evaluated. If a seat belt is recognized as not being fitted, the seat belt warning message lights up. If the vehicle then starts to move, several warning tone phases are performed once a speed of v ≥ 25 km/h is reached.
Depending on the type of seat belt warning issued, three or four acoustic warning phases are issued in succession. During these warning tone phases, the seat belt warning lamp flashes at a frequency of f = 2 Hz. After all the acoustic warning phases have expired the seat belt warning lamp is permanently actuated.
Acoustic warning phase 1:
If the vehicle drives off, acoustic warning phase 1 starts to run in the background. When a speed of v ≥ 25 km/h is reached, a quiet warning tone is sounded in an interval of t = 4 s. Warning tone phase 1 lasts for max. t = 20 s. Warning tone phase 2 is then started.
Warning tone phase 2:
After warning tone phase 1 has elapsed and from a speed of v ≥ 25 km/h, a quiet warning tone is sounded for a maximum of t = 20 s in an interval of t = 2 s. Warning tone phase 3 is then started.
Warning tone phase 3:
After warning tone phase 2 has elapsed and from a speed of v ≥ 25 km/h, a quiet warning tone is sounded for a maximum of t = 20 s at an interval of t = 1 s. Warning tone phase 4 is then started.
Acoustic warning phase 4 (Euro NCAP only):
After warning tone phase 3 has elapsed and from a speed of v ≥ 25 km/h, a loud warning tone is sounded for a maximum of t = 93 s at an interval of t = 0.5 s.
Cancellation of seat belt reminder warning:
- The last acoustic warning phase is fully completed.
- The seat belt was fitted during the active seat belt reminder warning.
- When the vehicle is stationary the vehicle door on the actuating side is opened.
Seat belt reminder warning reactivation:
- Seat belt release has been detected again.
- If the vehicle is at a standstill and the driver or front passenger door is opened and then closed again.
- A new ignition cycle ("Engine running" or "Drive train operational" signal set).
