Replace Complete Rear Fender - Ar63.50-P-1400LF

Model 222

MODIFICATION NOTES

25.02.2019 Flow form rivets (A1) replaced by flow form rivets with structure (S1). Step 5

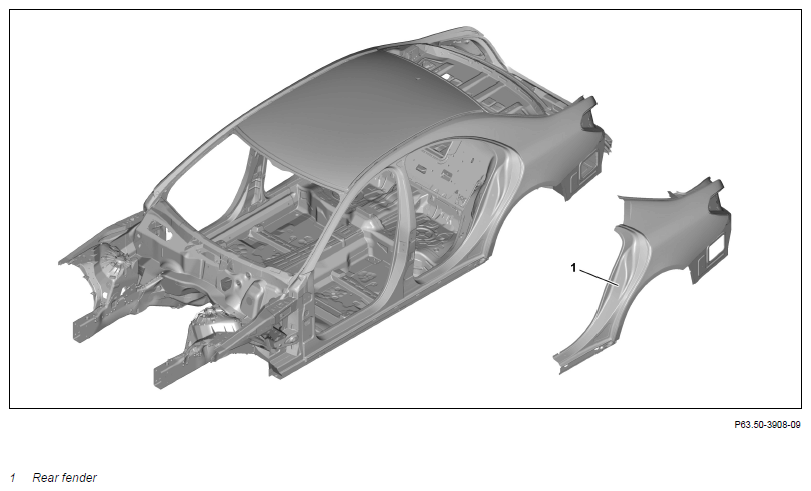

G15370590Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. AS47.00-Z-0001-01A
DANGER Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses, and protective gloves.
Use a suitable, grounded dust extraction system.
AS60.00-Z-0007-01N
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment   AH00.00-Z-0300-01A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice Notes on battery   AH54.10-P-0001-01A
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
Notice General information on crack diagnosis of aluminum parts   AH60.00-P-0014-01N
Notice Notes on processing of 2-K structural foam adhesive during body repairs   AH60.00-P-0040-01A
  Note on working on aluminum components and vehicles   AH60.00-P-0034-01LF
  Notes on acoustic foam and structural foam in the vehicle   AH60.00-P-0039-01A
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blanket. IMPORTANT When replacing the right rear fender (1), the standard fuel filler cap must be installed and the filler neck covered with a spark protection blanket.
3 Cut off rear fender (1). Model 222.0
Model 222.1/9
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1401-01LF
    Model 222.1/9
with code Z07 (B7 armoring on special protection version)
AR63.50-P-1401-01LFS
    1K-zinc dust paint *BR00.45-Z-1056-07A
    Primer stick *BR00.45-Z-1012-07A
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
  Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01N
  General notes on welding   AH60.00-P-0005-01N
4 Prepare rear fender (1). Model 222.0
Model 222.1/9
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1401-02LF
    Model 222.1/9
with code Z07 (B7 armoring on special protection version)
AR63.50-P-1401-02LFS
    1K-zinc dust paint *BR00.45-Z-1056-07A
5 Install rear fender (1). Model 222.0 Model 222.1/9
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1401-03LF
    Model 222.1/9
with code Z07 (B7 armoring on special protection version)
AR63.50-P-1401-03LFS
      AR60.00-P-0700-01LF
    Rear door to side section, bottom *BE60.00-P-1012-01BA
    Trunk lid to rear fender at top *BE60.00-P-1014-01BA
    White sealing compound, 310 ml, DBL 6069.20 *BR00.45-Z-1003-01A
    1K-zinc dust paint *BR00.45-Z-1056-07A
    2-component adhesive for reinforcements *BR00.45-Z-1152-02A
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Blind rivet with polygrip countersunk head 6.4 X14 (clamping range 2 mm to 8.5 mm, draw-off strength min. 10.8 kN) *BR00.45-Z-1002-13A
    Flow-form rivet structure W1 up to 3.5 mm clamping range (S1) *BR00.45-Z-1026-13A
    Blind rivet Y1 6.4X12 (clamping range
1 mm to 3.5 mm, draw-off strength min. 15.5 kN)
*BR00.45-Z-1035-13A
    SPECIAL TOOL Feeler gauge Fig 1
6 Clean weld joints and sheet metal flange.
7 Remove spark protection blankets.
8 Clean repair area.
9 Prime repair areas with a primer filler.
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.
10 Seal seam after repair.   AR97.10-P-4000LF
11 Paint repair areas and adjacent surfaces
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.
12 Supplement cavity preservation.   AR97.20-P-1500LF
13 Reinstall detachable parts in area of repair point.
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1012-01BA Rear door to side section, bottom Dimension "I" mm 4 (±0, 5)
For picture, see   AR60.00-P-0700-01LF
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1014-01BA Trunk lid to rear fender at top Dimension "K" mm 3, 5 (±1)
For picture, see   AR60.00-P-0700-01LF
Fig 1: Feeler Gauge (129 589 03 21 00)
G11129130Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-13A Blind rivet with polygrip countersunk head 6.4x14 (clamping range 2 mm to 8.5 mm, draw-off strength min. 10.8 kN) A 003 990 86 97 05
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1012-07A Primer stick A 000 986 27 50
BR00.45-Z-1026-13A Flow-form rivet structure W1 up to 3.5 mm clamping range (S1) A 000 991 11 33
BR00.45-Z-1035-13A Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1152-02A 2-component adhesive for reinforcements A 011 989 99 71
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
