Install Spare Tire Well - Ar64.20-P-1245-03LF
Model 222
The superordinate service document as well as the safety information in the service document must be observed.
 Courtesy of MERCEDES-BENZ USA
|

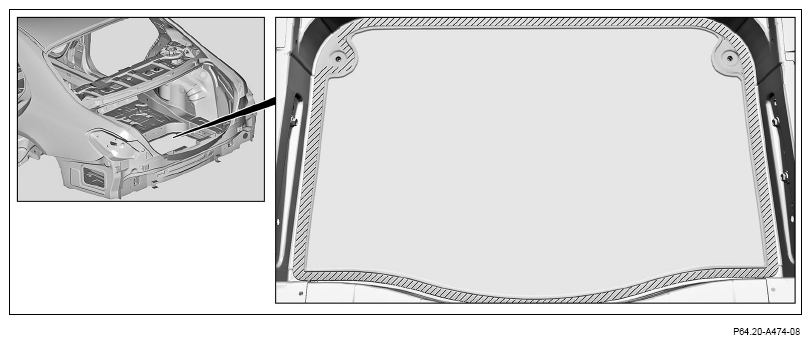

- Apply adhesive material to body in hatched area.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of adhesive material.
 Courtesy of MERCEDES-BENZ USA
|

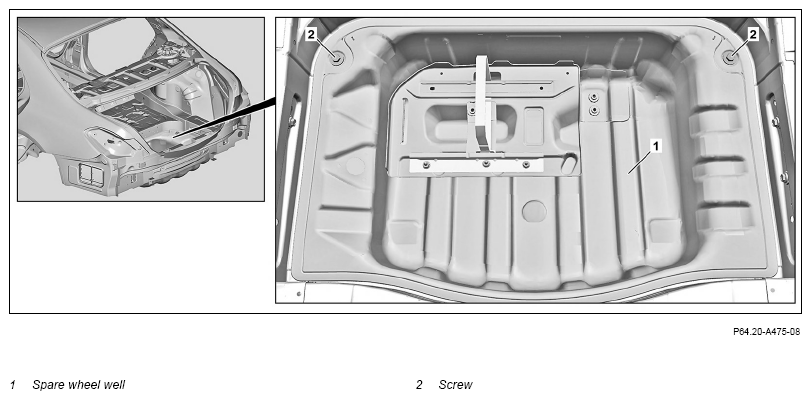

- Install spare wheel well (1) and align.
- Screw in screw/bolts (2).
