Inspect Condition Of Brake Disks - AP42.10-P-4258HA
Model 222
except code B07 (AMG - ceramic brake system)
Shown on perforated compound brake disk

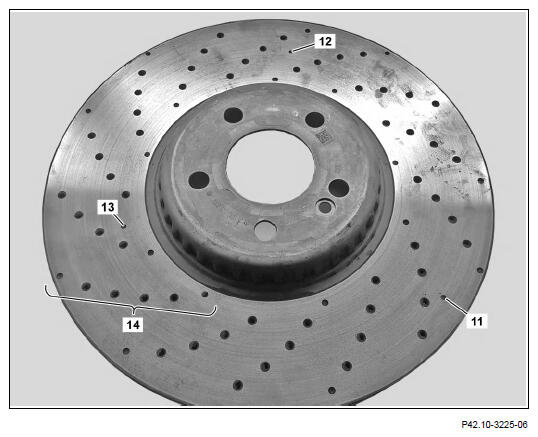

Shown on perforated compound brake disk with wear holes

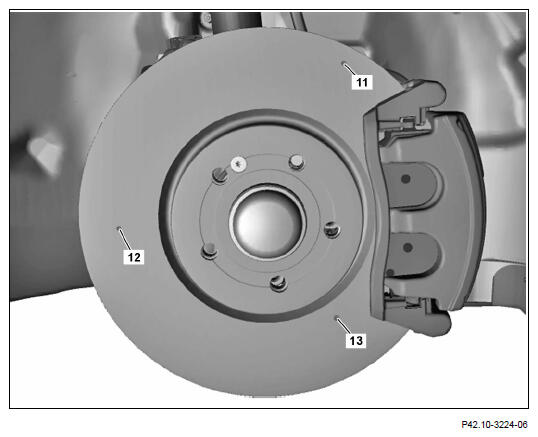

Shown on compound brake disk with wear holes
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Topical note | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Remove | |||
| 1 | Detach complete wheels | ||
| AR40.10-P-1102A | |||
| Check | |||
| 2 | Assess condition of brake disks (1) | AP42.10-P-4256EW | |
| Assessment of brake disks (1) not OK ↓ Replace brake disks (1) subject to separate repair order. |
|||
| Measure | |||

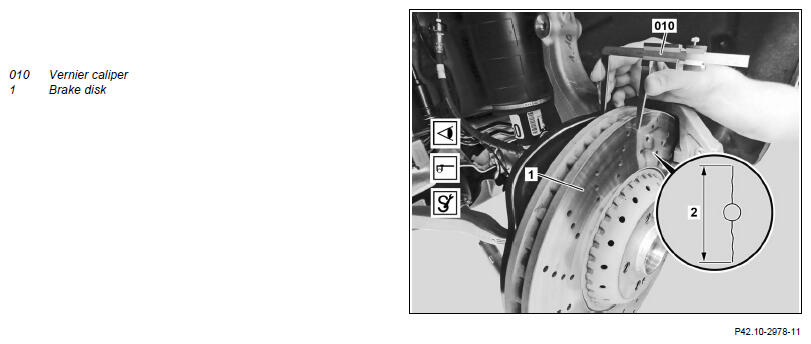

| 3 | Measure brake disk thickness on front axle using vernier caliper (010) | Model 222 front axle Brake disk thickness | *BE42.10-P-1001-08U |
Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake lining change. ↓ Replace brake disks (1) subject to separate repair order. |
Fig 1 | ||
| 4 | Measure brake disk thickness on rear axle using vernier caliper (010) | Model 222 rear axle Brake disk thickness | *BE42.10-P-1001-09E |
Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake lining change. ↓ Replace brake disks (1) subject to separate repair order. |
Fig 1 | ||
| Install | |||
| 5 | Attach complete wheels | ||
| AR40.10-P-1102A |
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 222.004/032/033/057/104/123/132/133/15 0/155/157/162 except code 950/951 model 222.020/021/120/121 except code 950/951/U29 | Model 222.004/032/033/05 7/104/123/132/133/1 50/155/157/162 with code 950/951 model 222.020/021/120/12 1 with code 950/951/U29 model 222.034/035/058/05 9/060/064/066/067/0 82/083/085/086/134/135/158/159/160/163/164/165/166/167/169/173/183/186/964/967/983/986 model 222.176/182/184/18 5/976/982/984/985 except code Z07/Z19 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08U | Brake disk thickness | New | mm | 32, 00 | 36, 00 |
| Wear limit | mm | 30, 00 | 34, 00 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 222.077/187 model 222.177/178/179/188 except code B07 model 222.980 except code 950/951/Z07 | Model 222.176/182/184/18 5/976/980/982/984/9 85 with code Z07 model 222.176/182/184/18 5/976/982/984/985 with code Z19 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08U | Brake disk thickness | New | mm | 36, 00 | 36, 00 |
| Wear limit | mm | 33, 00 | 33, 40 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 222.004/020/021/032/033/034/035/057/064/066/067/104/120/121/123/132/133/134/135/155/157/162/163/164/165/166/167/173/184/964/967 model 222.058/059/060/082/083/085/086/158/159/160/183/186/983/9 86 except code U28 model 222.150 except code 950/951 model 222.169 except code 950/951/U28 model 222.176/976 except code Z07 model 222.182/185 except code U28/Z07 | Model 222.058/059/060/08 2/083/085/086/158/1 59/160/169/182/183/185/186/982/983/985/986 with code U28 model 222.077 model 222.177/178/179/187/188 except code B07 model 222.980 except code 950/951/Z07 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09E | Brake disk thickness | New | mm | 24 | 26 |
| Wear limit | mm | 21, 4 | 24 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 222.150 with code 950/951 model 222.169 with code 950/951 except code U28 | Model 222.176/182/185/97 6/980 with code Z07 Model 222.982/985 except code U28 Model 222.984 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09E | Brake disk thickness | New | mm | 24 | 26 |
| Wear limit | mm | 22 | 23, 4 | ||
