Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97SEA

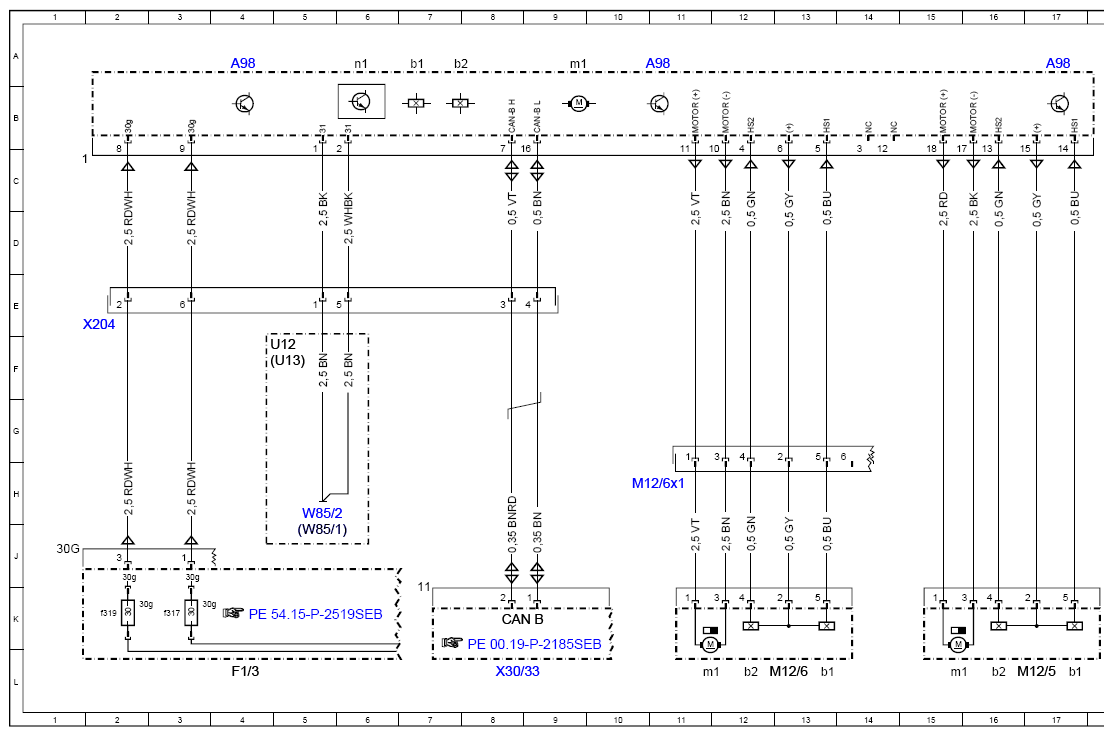

Model 222 up to model year 2018 with code 413 (Automatic panoramic sliding sunroof) except code 398 (Panoramic roof with MAGIC SKY CONTROL) Control unit A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A98 | Panoramic sliding roof control module | 11A |
| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 17A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 7A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 7A |
| A98m1 | Panoramic sliding roof motor | 9A |
| A98n1 | Panoramic sliding roof control unit | 6A |
| CAN B | Interior CAN | 8K |
| F1/3 | Right A-pillar fuse box | 4L |
| F1/3f317 | Fuse 317 | 3K |
| F1/3f319 | Fuse 319 | 2K |
| M12/5 | Front panoramic sliding sunroof roller sun blind drive unit | 17L |
| M12/5b1 | Hall sensor 1, front panoramic sliding sunroof roller sun blind | 17L |
| M12/5b2 | Hall sensor 2, front panoramic sliding sunroof roller sun blind | 16L |
| M12/5m1 | Front panoramic sliding sunroof roller sun blind motor | 15L |
| M12/6 | Rear panoramic sliding sunroof roller sun blind drive unit | 13L |
| M12/6b1 | Hall sensor 1, rear panoramic sliding sunroof roller sun blind | 13L |
| M12/6b2 | Hall sensor 2, rear panoramic sliding sunroof roller sun blind | 12L |
| M12/6m1 | Rear panoramic sliding sunroof roller sun blind motor | 11L |
| M12/6x1 | Rear panoramic sliding sunroof roller sun blind drive unit electrical connector | 11H |
| U12 | Valid for left-hand drive vehicles | 4F |
| U13 | Valid for right-hand drive vehicles | 4F |
| W85/1 | Driver footwell frame floor assembly ground point | 5J |
| W85/2 | Front passenger footwell frame floor assembly ground point | 5H |
| X204 | Panoramic sliding roof electrical connector | 2E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 8L |
