Opening Engine Hood, Moving To Upright Position And Closing - AR88.40-P-1000LCA
Model 217, 222
Shown on model 217.4
Shown on model 217.4
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. With Motor 157, 176, 177, 256, 276, 277, 278, 279, 642 | AS00.00-Z-0035-01A | |
| Open hood | |||

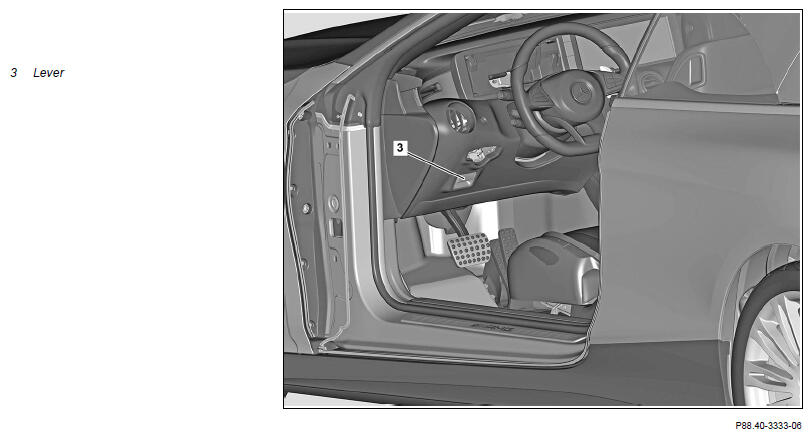

| 1 | Pull lever (3) in left inner footwell to release hood (1) | ||

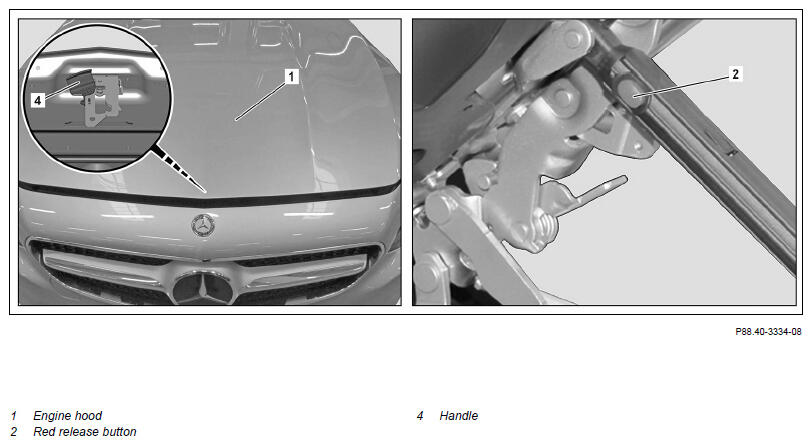

| 2 | Pull handle piece (4) of safety hook upward and open hood (1) | Paint damage to hood (1) can otherwise occur. |
|
| Move to upright position | |||
| 3 | Press red release knob (2) at left and right pneumatic spring and position hood (1) upright | ||
| Close engine hood | |||
| 4 | Press red release knob (2) at left and right pneumatic spring and close hood (1) | ||
| 5 | Check locking function of hood catch; for this purpose, suddenly pull hood (1) upward |
