Remove/Install Bottom Paneling For Dashboard On Passenger Side - AR68.10-P-1502ME

Model 167

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Move front passenger seat into the rearmost position.

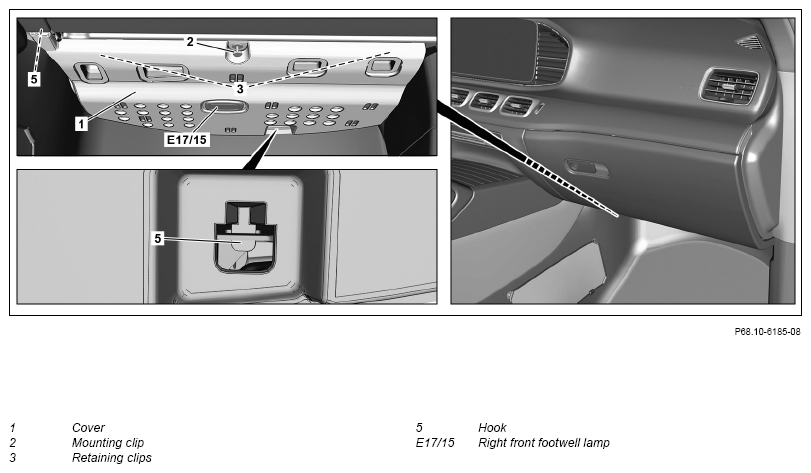

2	Remove retaining clip (2).	Dismantling tool	Fig 1
3	Unclip cover (1) from the retaining clamps (3), unhook hooks (5), and lower until the electrical connector is accessible.	Long wedge	Fig 2
4	Release and disconnect electrical connector.
5	Remove cover (1).
6	Change front right footwell lamp (E17/15).	When replacing cover (1).
7	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
