Adjust Front Bumper - AR88.20-P-2001ME
Model 167
| Check | |||
| 1 | Check adjustment of front bumper (1). | AR60.00-P-0900-01ME | |
| Engine hood to bumper | *BE60.00-P-1002-01LA | ||
| Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1003-01LA | ||
| Bumper to headlamp at bottom | *BE60.00-P-1006-01LA | ||
| Bumper to headlamp, side | *BE60.00-P-1007-01LA | ||

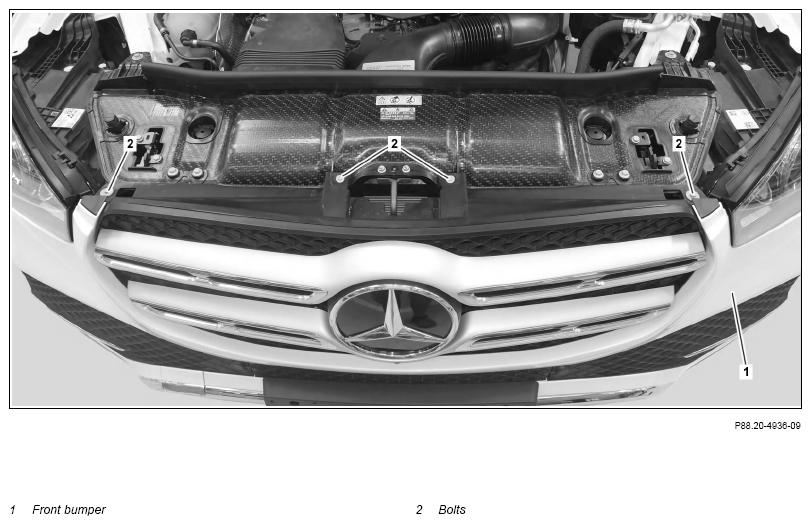

| Fig 1 | |||
| Adjust | |||
| 2 | Open hood. | ||
| 3 | Loosen screws (2) until the front bumper (1) can be moved. | ||
| 4 | Close hood. | ||
| 5 | Adjust front bumper (1) relative to the hood and headlamps. | AR60.00-P-0900-01ME | |
| Engine hood to bumper | *BE60.00-P-1002-01LA | ||
| Protrusion of radiator trim/soft nose, engine hood | *BE60.00-P-1003-01LA | ||
| Bumper to headlamp at bottom | *BE60.00-P-1006-01LA | ||
| Bumper to headlamp, side | *BE60.00-P-1007-01LA | ||
| Fig 1 | |||
| 6 | Open hood. | ||
| 7 | Tighten bolts (2). | ||
| 8 | Close hood. | ||
| Calibrate | |||
| 9 | Calibrate 360° camera with diagnosis system. | Model 167 with code 501 (360° camera) |
|
| AD00.00-P-2000-06ME | |||
| 10.1 | Calibrate Active Brake Assist controller unit with the vehicle diagnosis system. | Model 167 with code 258 (Active Brake Assist System) |
|
| AD00.00-P-2000-06ME | |||
| 10.2 | Calibrate Active Distance Assist DISTRONIC electric controller unit with the diagnostic system. | Model 167 with code 239 (Active Distance Assist DISTRONIC) |
|
| AD00.00-P-2000-06ME |
GAP DIMENSIONS
| Number | Designation | Model 167.1 | Model 167.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1002-01LA | Engine hood to bumper | Dimension "B" | mm | 4, 5 (± 1, 5) | 4, 5 (± 1, 5) |
| For picture, see | AR60.00-P-0900-01ME | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.9 | ||
|---|---|---|---|---|
| BE60.00-P-1002-01LA | Engine hood to bumper | Dimension "B" | mm | 4, 5 (± 1, 5) |
| For picture, see | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.1 | Model 167.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01LA | Protrusion of radiator trim/soft nose, engine hood | Dimension "B1" | mm | - 2, 5 (± 1, 0) | - 2, 5 (± 1, 0) |
| For picture, see | AR60.00-P-0900-01ME | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.9 | ||
|---|---|---|---|---|
| BE60.00-P-1003-01LA | Protrusion of radiator trim/soft nose, engine hood | Dimension "B1" | mm | - 2 (± 1, 0) |
| For picture, see | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.1 | Model 167.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01LA | Bumper to headlamp at bottom | Dimension "E1" | mm | 1, 5 (± 1, 0) | 1, 5 (± 1, 0) |
| For picture, see | AR60.00-P-0900-01ME | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.9 | ||
|---|---|---|---|---|
| BE60.00-P-1006-01LA | Bumper to headlamp at bottom | Dimension "E1" | mm | 2 (± 1, 0) |
| For picture, see | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.1 | Model 167.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1007-01LA | Bumper to headlamp, side | Dimension "E2" | mm | 2, 5 (± 1, 0) | 2, 5 (± 1, 0) |
| Dimension "E3" | mm | 1, 5 (± 1, 0) | 1, 5 (± 1, 0) | ||
| For picture, see | AR60.00-P-0900-01ME | AR60.00-P-0900-01ME | |||
GAP DIMENSIONS
| Number | Designation | Model 167.9 | ||
|---|---|---|---|---|
| BE60.00-P-1007-01LA | Bumper to headlamp, side | Dimension "E2" | mm | 2, 5 (± 1, 0) |
| Dimension "E3" | mm | 2 (± 1, 0) | ||
| For picture, see | AR60.00-P-0900-01ME | |||
