Analysis Sheet For 48 V Lithium-Ion Battery, Form - OF54.10-P-3000-15FR
Model 167, 205, 206, 213, 223, 232, 238, 253, 254, 257, 290 With Code B01 (48V technology)

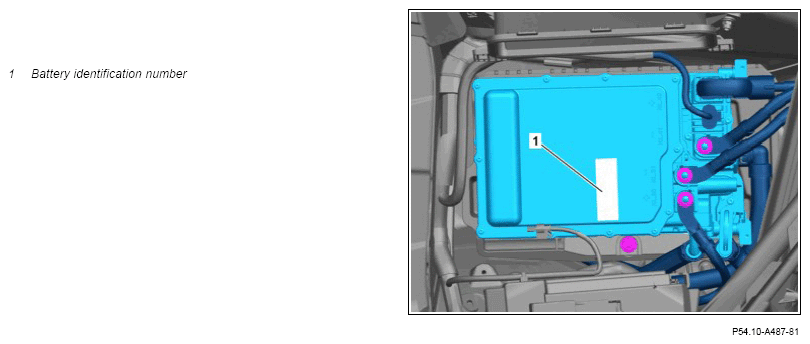

Shown on model 206

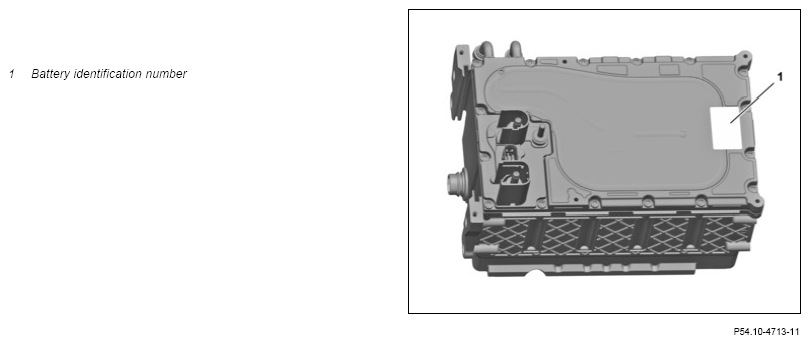

Shown on model 254
Visual inspections
The visual inspection provides initial important information about the condition. Wear protective equipment for inspection as per the notes in the repair instructions.

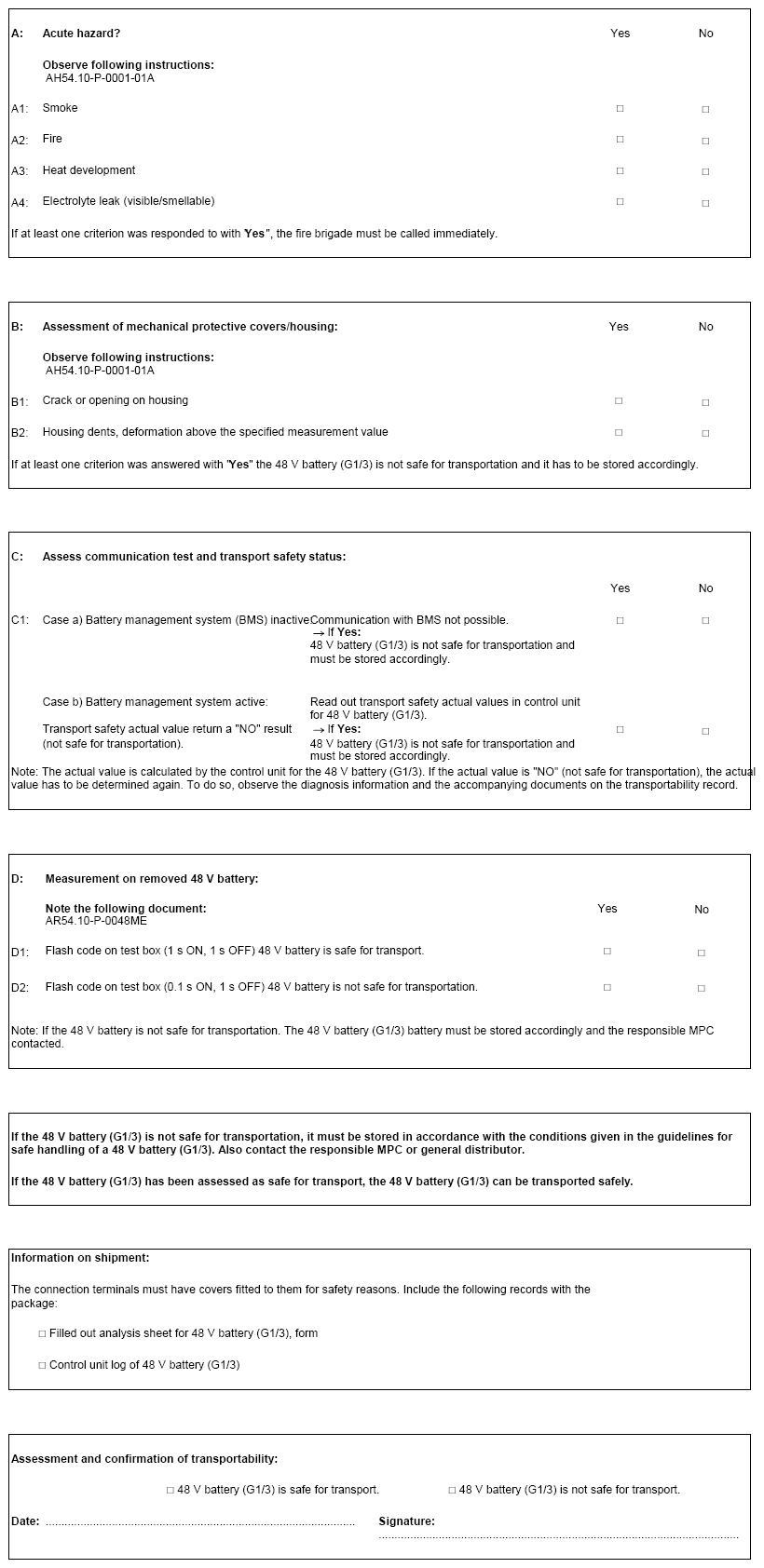

ASSESSMENT STEPS
