Remove/Install Mercedes-Benz Intelligent Drive Control Unit - AR54.21-P-0044ME
Model 167
With Code 233 (DISTRONIC PLUS)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove front door sill on passenger side. | Only on left-hand drive vehicles. | |
| AR68.30-P-4100ME | |||
| 3.1 | Remove glove box. | Only on left-hand drive vehicles. | |
| AR68.10-P-1400ME | |||
| 3.2 | Remove trim at bottom for instrument panel or driver's side. | Only on right-hand drive vehicles. | |
| AR68.10-P-1501ME | |||

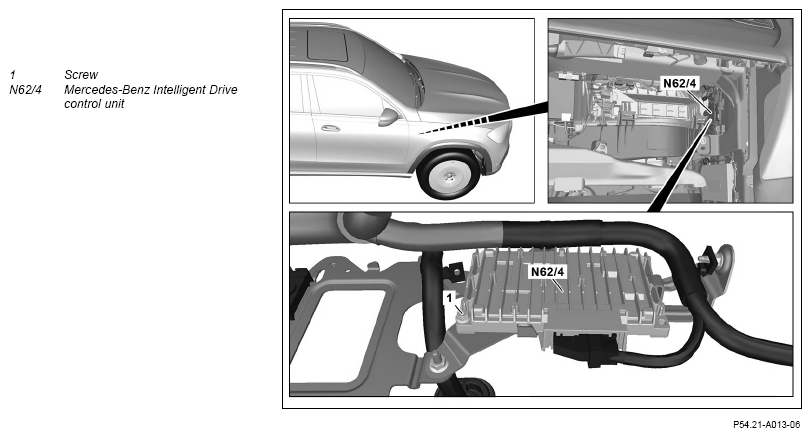

| 4 | Release and disconnect electrical connectors from Mercedes-Benz Intelligent Drive control unit (N62/4). | ||
| 5 | Unscrew bolt (1). | ||
| 6 | Remove Mercedes-Benz Intelligent Drive control unit (N62/4). | ||
| 7 | Install in the reverse order. | ||
| 8 | Commission Mercedes-Benz Intelligent Drive control unit (N62/4). | If the Mercedes-Benz Intelligent Drive control unit (N62/4) is replaced. | |
| AD00.00-P-2000-06ME |
