Remove/Install Front Sensor For Short-Range Radar - AR54.21-P-0706ME
Model 167
With Code 23U (Active Stop-and-Go Assist)
Model 167
With Code 292 (PRE-SAFE® Impulse Side)

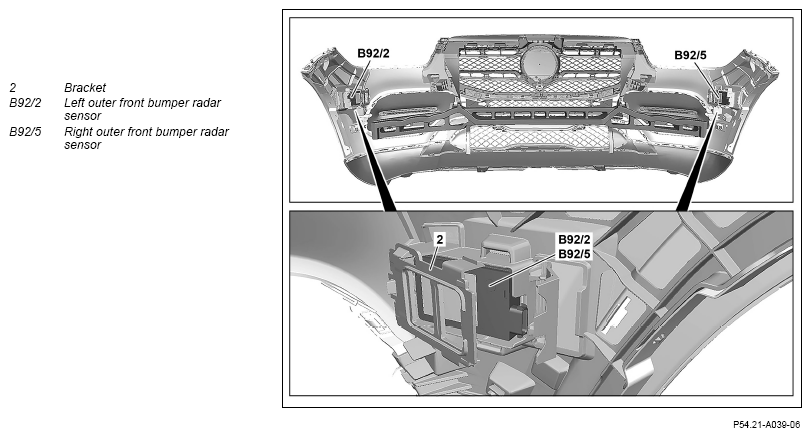

Fig 1: Front Sensor For Short-Range Radar Components Location - Model 167 With Code 23U; 292 (Shown With Engine 656 On Right Side)
Shown on model 167 with engine 656 on right side of vehicle
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2.1 | Remove front section of the right or left front fender liner. | Model 167 with engine 176, 256, 264, 654 with code 23U (Active Stop-and-Go Assist) Model 167 with engine 176, 256, 264, 654 with code 292 (PRE-SAFE® Impulse Side) | |
| AR88.10-P-1301ME | |||
| 2.2 | Remove front section of the front right fender liner. | Model 167 with engine 656 with code 23U (Active Stop-and-Go Assist) Model 167 with engine 656 with code 292 (PRE-SAFE® Impulse Side) Only when removing right outer front bumper radar sensor (B92/5). |
|
| AR88.10-P-1301ME | |||
| 2.3 | Detach left front bumper far enough until left outer front bumper radar sensor (B92/2) is accessible. | Model 167 with engine 656 with code 23U (Active Stop-and-Go Assist) Model 167 with engine 656 with code 292 (PRE-SAFE® Impulse Side) Only when removing left outer front bumper radar sensor (B92/2). |
|
| AR88.20-P-2000ME | |||

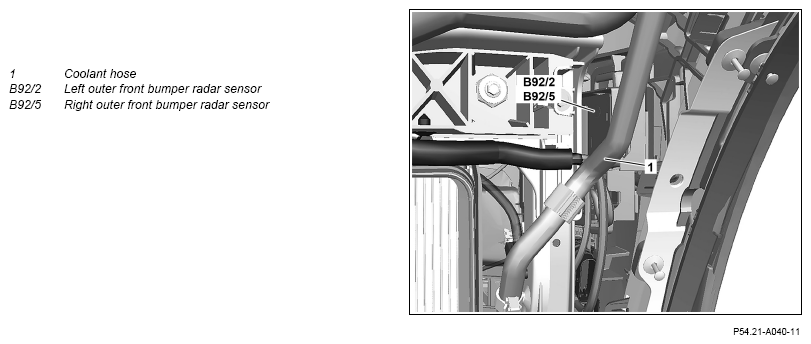

| 3 | Unclip coolant hose (1) and place to one side. | Model 167 with engine 656 with code 23U (Active Stop-and-Go Assist) Model 167 with engine 656 with code 292 (PRE-SAFE® Impulse Side) Only when removing right outer front bumper radar sensor (B92/5). |
|
| 4 | Unlock and disconnect electrical connector at left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | ||
| 5 | Unclip holder (2) and remove left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | ||
| 6 | Install in the reverse order. | ||
| 7 | Perform commissioning of left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | After replacement of left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | |
| AD00.00-P-2000-06ME |
