Remove/Install Cigarette Lighter - AR54.10-P-0030ME

Model 167

With Code 301 (Package SMOKER)

Courtesy of MERCEDES-BENZ USA

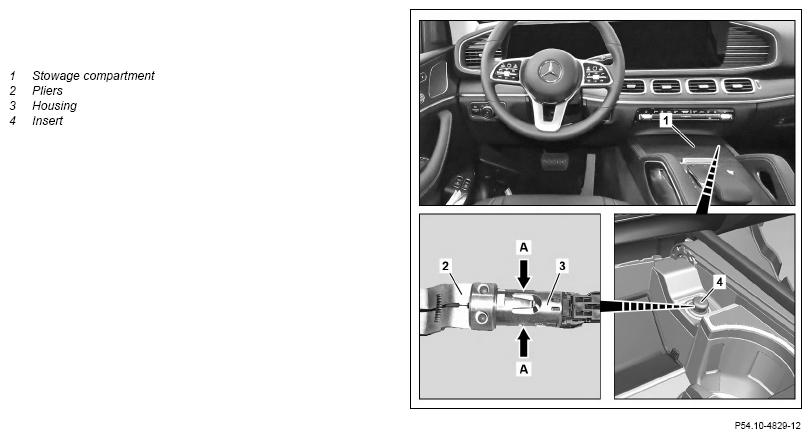

	Remove/install
1	Remove stowage compartment (1) in front center console.		AR68.20-P-0901ME
2	Remove insert (4) from housing (3).	The cigarette lighter with ashtray lighting at the front (R3) consists of the insert (4) and the housing (3).
3	Release and pull out housing (3) using pliers (2).	The spigots of the pliers (2) must engage in the cutouts of the housing (3) (arrows A).
		Pliers	Fig 1
4	Install in the reverse order.

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
