Remove/Install Rain/Light Sensor - AR82.30-P-7800LF
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
with code 345 (Windscreen wiper with rain sensor)
Model 213, 217, 222, 238, 253, 293
Shown on model 222
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

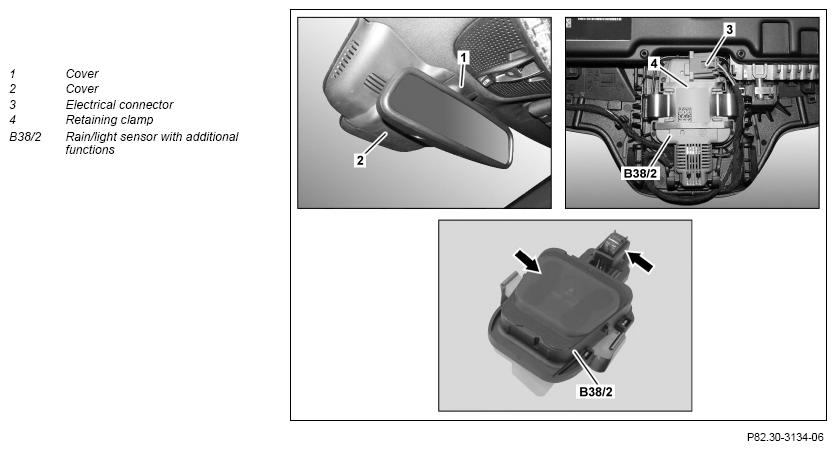

| 2 | Unclip and remove cover (1). | Fig 2 | |
| 3 | Unclip and remove cover (2). | Fig 2 | |
| 4 | Unhook retaining clamps (4) on both sides of rain and light sensor with additional functions (B38/2). | ||
| 5 | Remove rain and light sensor with additional functions (B38/2) and disconnect electrical connector (3). | ||
| 6 | Install in the reverse order | ||
| Initial startup | |||
| 7 | Perform commissioning of rain and light sensor with additional functions (B38/2). | ||
| Model 293 | AD00.00-P-2000-06FR | ||
| Model 205 with code 345 (Windscreen wiper with rain sensor) Model 213, 217, 222, 253 |
AD00.00-P-2000-04B | ||
| Model 238 | AD00.00-P-2000-06LWO |
