Remove/Install Upper Side Trim In Rear Passenger Compartment - AR68.30-P-4783LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
MODIFICATION NOTES
| 09.05.2016 | Bolt, front belt end fitting | BA91.40-P-1003-01U |
Shown on left side of vehicle
Shown on left side of vehicle
Shown on left side of vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |

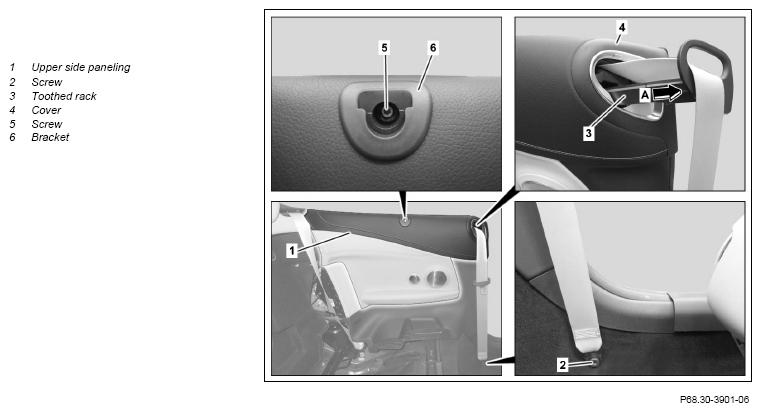

| 2 | Unscrew bolt (2) from belt end fitting | *BA91.40-P-1003-01U | |
| 3 | Completely pull toothed rack (3) out of belt extender (arrow A) and remove | ||
| 4 | Unscrew bolt (5) and remove bracket (6) | If installed. | |

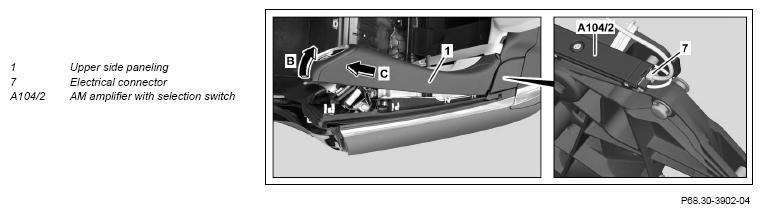

| 5 | Disconnect electrical connector (7) from AM amplifier with selection switch (A104/2) | When removing top left side paneling (1). | |
| 6 | Unclip upper front side paneling (1) (arrow B) toward front (arrow C) and remove | ||

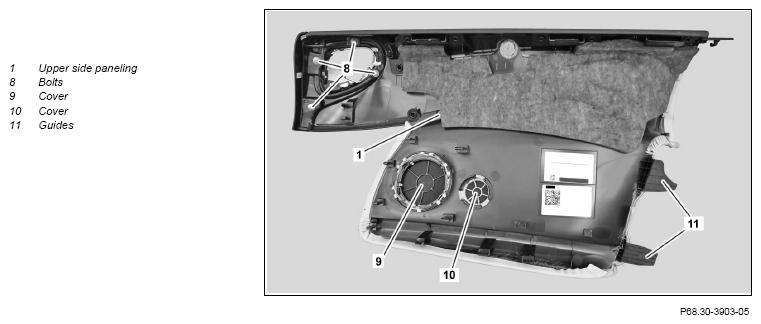

| 7 | Unscrew screws (8) and remove cover (4) | When replacing upper side paneling (1). | |
| 8 | Unclip cover (9) | When replacing upper side paneling (1). | |
| 9 | Unclip cover (10) | Model 205.4 with code 810 (Sound system) When replacing upper side paneling (1). |
|
| 10 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.4 | ||
|---|---|---|---|---|
| BA91.40-P-1003-01U | Bolt, front belt end fitting | Nm | 30 | |
| M10x12 | Nm | - | ||
| M10x16 | Nm | - | ||
