Check Grab Handle On Roof - AR68.30-P-4330-01NKB
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 118, 156, 176, 177, 205, 213, 222, 242, 246, 247, 253, 293
| Notes on safety-relevant components | AH00.00-Z-0019-01A |

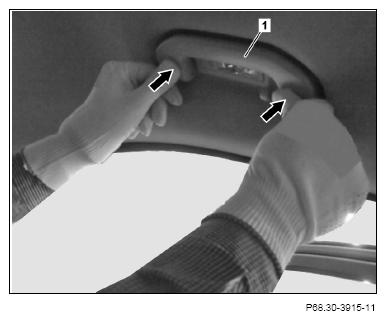

- Push grab handle (1) to joining direction at clips with both hands (arrows).
- Completely fold out grab handle (1), pull downward and check whether it is seated tightly at both mounting points.
- Push grab handle (1) to joining direction at clips with both hands (arrows).
It must be ensured that the grab handle (1) is seated tightly.
A clip not engaged can pose an injury risks when entering or exiting the vehicle.
If a clip detaches during the tensile test.
↓
Check clip, if necessary replace and repeat test.
