Check Heads-Up Display - AR54.30-P-6401-02LW

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205, 217, 222, 253

with code 463 (Head-up display)

Shown on model 205

G12938449Courtesy of MERCEDES-BENZ USA

Set picture to center position

  1. Hold down the "Back" button (S110s4) for approx. 5 s.
  2. Press system selection button (S110s3).
  3. Press scroll forward/back button (S110s1) repeatedly until "Settings" is highlighted and confirm selection by pressing OK button (S110s6).
  4. Press scroll forward/back button (S110s1) repeatedly until "Heads-up display" is highlighted and confirm selection by pressing OK button. (S110s6).
  5. Press scroll forward/back button (S110s1) repeatedly until "Position" is highlighted and confirm selection by pressing OK button (S110s6).
  6. Press scroll forward/back button (S110s1) repeatedly until "Stage 0" is highlighted and confirm selection by pressing OK button. (S110s6).

    Call up Workshop menu and Test image 1

  7. Hold down the "Back" button (S110s4) for approx. 5 s.
  8. Press and hold upper button of Accept/end phone call button (S111s3); and then within 1 s also press the OK button (S110s6) and keep it pressed for approx. 5 s.

    IMPORTANT The Workshop menu is shown in the multifunction display (A1p13).

  9. Press scroll forward/back button (S110s1) repeatedly until "Heads-up display" is highlighted and confirm selection by pressing OK button. (S110s6).
  10. Press scroll forward/back button (S110s1) repeatedly until "Test image" is highlighted and confirm selection by pressing OK button (S110s6).

    IMPORTANT "Off (original picture)" appears in the multifunction display (A1p13).

  11. OK button Press (S110s6) to make changes. Press scroll forward/back button (S110s1) repeatedly until "Test image 1" is highlighted and confirm selection by pressing OK button. (S110s6).

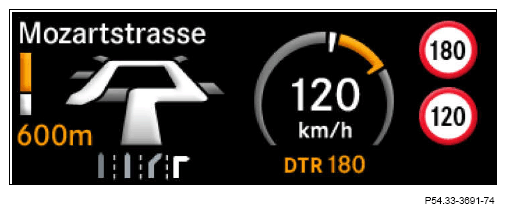

    IMPORTANT Test image 1 is shown on the windshield.

  12. Check and assess test image 1.

    IMPORTANT Assessment should be performed by at least 2 persons. The setting is OK if test image 1 is displayed as shown.

    If test image 1 is shown correctly.

    ↓

    OK button (S110s6) press. Press the scroll forward/back button (S110s1) repeatedly until "OFF" (original picture) is highlighted and confirm the selection by pressing the OK button (S110s6). Hold down the "Back" button (S110s4) for approx. 5 s.

    IMPORTANT Exit the Workshop menu.

    If test image 1 is not shown correctly.

    ↓

    Proceed with operation step 13

  13. OK button (S110s6) press. Press scroll forward/back button (S110s1) repeatedly until "Test image 7" is highlighted and confirm selection by pressing OK button (S110s6).
    G12938450Courtesy of MERCEDES-BENZ USA
  14. Check and assess test image 7.

    IMPORTANT Assessment should be performed by at least 2 persons.

    The setting is OK if test image 7 is displayed as shown.

    If test image 7 is shown correctly.

    ↓

    OK button (S110s6) press. Press the scroll forward/back button (S110s1) repeatedly until "OFF" (original picture) is highlighted and confirm the selection by pressing the OK button (S110s6). Hold down the "back" button (S110s4) for approx. 5 s.

    IMPORTANT Exit the Workshop menu.

    If test image 7 is not shown correctly.

    ↓

    Continue with operation step 15

    IMPORTANT If test image 7 was not shown correctly, the parameters in the workshop menu must be reset.

    G12938451Courtesy of MERCEDES-BENZ USA

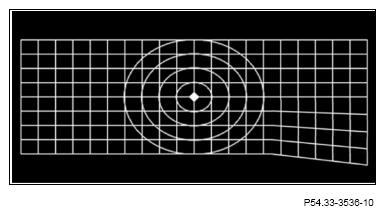

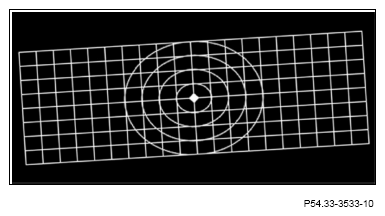

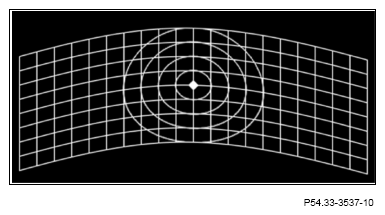

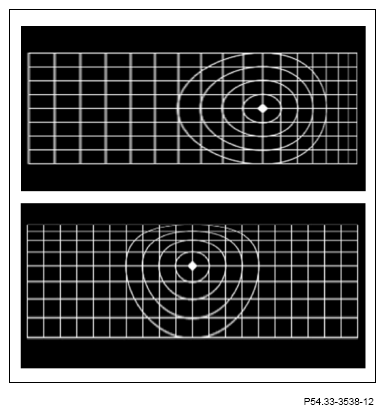

    Examples of test image 7 not being shown correctly

    G12938452Courtesy of MERCEDES-BENZ USA
    G12938453Courtesy of MERCEDES-BENZ USA
    G12938454Courtesy of MERCEDES-BENZ USA
    G12938455Courtesy of MERCEDES-BENZ USA
    G12938456Courtesy of MERCEDES-BENZ USA
    G12938457Courtesy of MERCEDES-BENZ USA
    G12938458Courtesy of MERCEDES-BENZ USA

    Reset parameters in workshop menu

  15. Press the "back" button (S110s4).

    IMPORTANT Parameters are reset.

  16. Press scroll forward/back button (S110s1) repeatedly until "Parameters" is highlighted and confirm selection by pressing OK button (S110s6).
  17. Press scroll forward/back button (S110s1) repeatedly until "Warp configuration" is highlighted and confirm selection by pressing OK button (S110s6).
  18. Call up and assess test image 1 and test image 7 again.

    If test image 1 and test image 7 are shown correctly.

    ↓

    OK button (S110s6) press. Press the scroll forward/back button (S110s1) repeatedly until "OFF" (original picture) is highlighted and confirm the selection by pressing the OK button (S110s6). Hold down the "back" button (S110s4) for approx. 5 s.

    IMPORTANT Exit the Workshop menu.

    If test image 1 or test image 7 is not shown correctly.

    ↓

    Adjust head-up display using diagnostic system.
