Remove/Install Outer Trim On Seat Frame - AR91.10-P-1201LWA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205.0/1/2, 213, 253, 293
with code P65 (Seat comfort package)
with code U22 (Lumbar support adjustment)
MODEL 205.0/1/2, 213, 253
with code 555 (AMG-Performance Seat)
with code U22 (Lumbar support adjustment)
MODIFICATION NOTES
| 24.07.2019 | WIS Service Media added in operation step 5. |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1.1 | Remove front seat. | If trim (3) is removed. Remove/install front seat | AR91.10-P-1000LW |
| 1.2 | Move front seat to frontmost position and all the way up. | If only paneling (1, 2, 4) is being removed. | |
| 2 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | If the front seat was not removed. | |
| 3 | Cover door sill. | If the front seat was not removed. | |

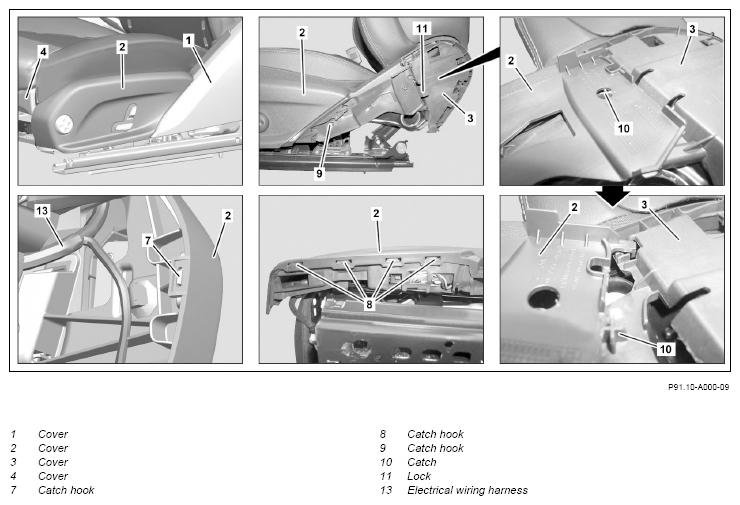

| 4 | Unclip trim (4) at top and remove downwards. | If installed. |
Fig 1 |
| 5 | Release trim (1) upwards and remove. | multimedia:A supplement to the article is available.
|
|

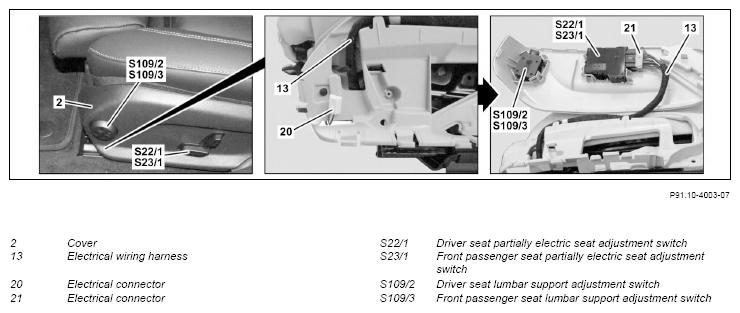

| 6 | Disconnect electrical connector (20). | ||
| 7 | Press trim (2) inwards and unhook from catch hook (7). | ||
| 8 | Unclip retaining clip of electrical wiring harness (13). | ||
| 9 | Push trim (2) downwards and unhook from catch hook (8). | ||
| 10 | Unhook catch hook (9) from trim (3). | ||
| 11 | Push lock (11) to side and pull trim (2) outwards over the catch (10). | ||
| 12 | Unhook trim (2) at front from trim (3), swivel upwards and place to one side. | ||
| 13 | Disconnect electrical connector (21). | ||
| 14 | Remove partially electric seat adjustment switch (S22/1, S23/1). | When replacing cover (2). | |
| Model 205.0/1/2, 253, 293 with code P65 (Seat comfort package) with code U22 (Lumbar support adjustment) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Driver's seat, electrically adjustable with memory function) Model 205.0/1/2, 253 with code 555 (AMG-Performance Seat) with code U22 (Lumbar support adjustment) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Driver's seat, electrically adjustable with memory function) Model 213 with code 555 (AMG-Performance Seat) with code U22 (Lumbar support adjustment) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 213 with code P65 (Seat comfort package) with code U22 (Lumbar support adjustment) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 275 (Memory Package (driver's seat, steering column and mirror)) |
AR91.29-P-2523LWA | ||
| 15 | Remove lumbar support adjustment switch (S109/2, S109/3). | When replacing cover (2). | |
| AR91.25-P-1436LWE | |||
| 16 | Remove electrical wiring harness (13) from working area. | ||

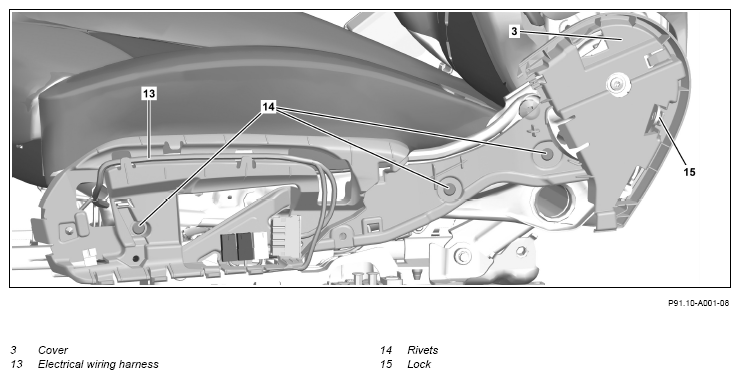

| 17 | Drill out rivets (14). | ||
| 18 | Release lock (15) and remove cover (3). | ||
| 19 | Install in the reverse order. |
