Remove/Install Inside Rearview Mirror - AR68.40-P-0001LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293

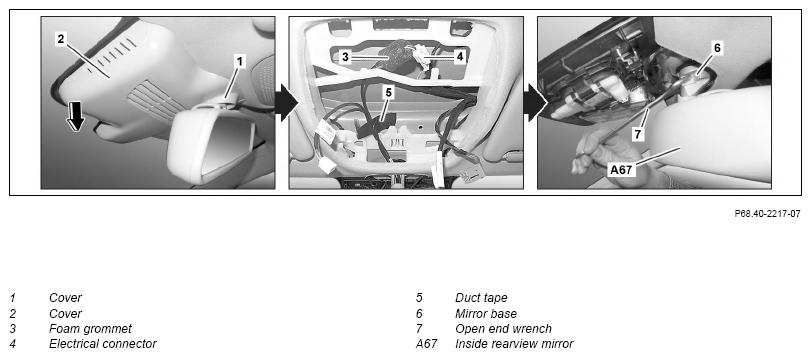

Shown on model 205.0
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove overhead control panel control unit. | Model 205.0/1/2/3, 213, 253, 293 | AR82.20-P-1000LF |
| Model 205.4 | AR82.20-P-1000LWR | ||
| 2 | Unclip and remove cover (1). | ||
| 3 | Unclip and remove cover (2) in direction of arrow. | ||
| 4 | Push back foam grommet (3). | Model 205, 253, 293 Completely install foam rubber grommet (3) over electrical connector (4). Otherwise noise may occur. |
|
| 5 | Disconnect electrical connection (4). | Model 205, 253, 293 | |
| 6 | Release fabric tape (5). | Model 205, 253, 293 | |
| 7 | Disconnect electrical connector of mirror taximeter. | Model 213 with code 337 (Taximeter integr. in the rear-view mirror) | |
| 8 | Turn inside rearview mirror (A67) at mirror base (6) toward right using an open-end wrench (7) and remove from mirror bracket. | ||
| 9 | Adjust reading lamps of inside rearview mirror (A67) to steering variant. | When replacing inside rearview mirror (A67). Model 205, 213, 253 |
AR68.40-P-0001-01A |
| Model 293 | AR68.40-P-0001-01EQ | ||
| 10 | Install in the reverse order. |
