Remove/Install Handle On Roof - AR68.30-P-4330NKB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 156, 176, 205, 213, 222, 242, 246, 253, 293

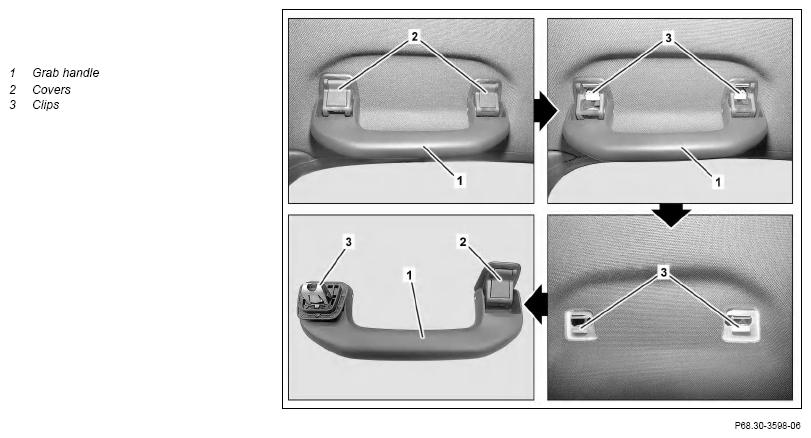

Shown on model 246
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove covers (2). | ||
| 2 | Press together clips (3) and remove grab handle (1). | ||
| 3 | Release and disconnect electrical connector of rear illumination at rear grab handle (1). | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205, 253, 293 with code 876 (Interior Light package) Model 213, 222 |
|
| 4 | Remove clamps (3) from the body. | ||
| Install | |||
| 5 | Clip clamps (3) and covers (2) into the grab handle (1). | ||
| 6 | Connect electrical connector of rear illumination at rear grab handle (1). | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205, 253, 293 with code 876 (Interior Light package) Model 213, 222 |
|
| 7 | Clip grab handle (1) into the roof. | ||
| Check | |||
| 8 | Check grab handle at roof. | AR68.30-P-4330-01NKB |
