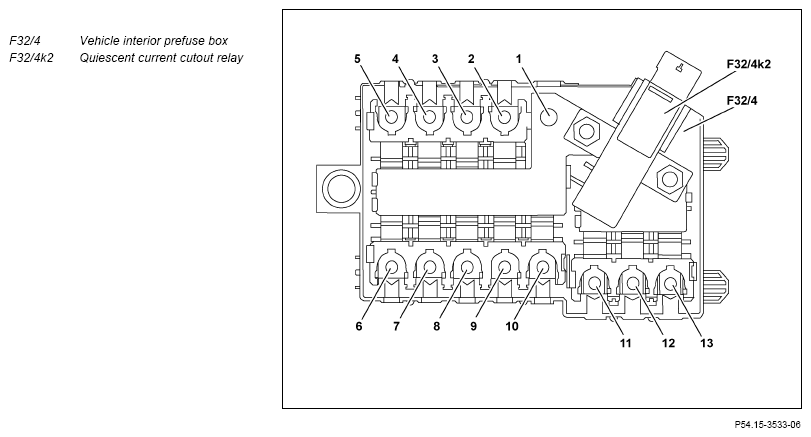

Assignment Of Pre-fuse Box In Vehicle Interior - GF54.15-P-1256-37RFN
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of Model year 2020
| Connection | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | - | 30t | 35.0 RD | Engine compartment pre-fuse box (F32/3) | - |
| 2 | Electrical fuse 2 (F32/4f2) | 30t | 16.0 RD | With code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Auxiliary battery relay for ECO start/stop function (K114) |
150 |
| 3 | Electrical fuse 3 (F32/4f3) | 30t | 4.0 RD | Air conditioner housing (A32) | 40 |
| 4 | Electrical fuse 4 (F32/4f4) | 30t | - | Spare | - |
| 5 | Electrical fuse 5 (F32/4f5) | 30t | - | Spare | - |
| 6 | Electrical fuse 6 (F32/4f6) | 30t | 16.0 BK | Passenger-side A-pillar fuse box (F1/3) | 80 |
| 7 | Electrical fuse 7 (F32/4f7) | 30t | 25.0 RD | Rear fuse and relay module (K40/5) | 150 |
| 8 | Electrical fuse 8 (F32/4f8) | 30t | - | Spare | - |
| 9 | Electrical fuse 9 (F32/4f9) | 30t | 6.0 RD | With code 970 (Police emergency vehicles) or code 974 (Fire brigade lead emergency vehicle pre-installation) or code 975 (Emergency physician vehicle pre-installation): Special-purpose vehicle fuse block 1 (F80/1) |
60 |
| 10 | Electrical fuse 10 (F32/4f10) | 30t | 6.0 RD | Transmission 725: Fully integrated transmission control controller unit (Y3/8) | 60 |
| 10.0 RD | Transmission 725: Fully integrated transmission control controller unit (Y3/8) | 100 | |||
| 11...13 | Electrical fuse 11 (F32/4f11) - Electrical fuse 13 (F32/4f13) | 30t | - | Spare |
