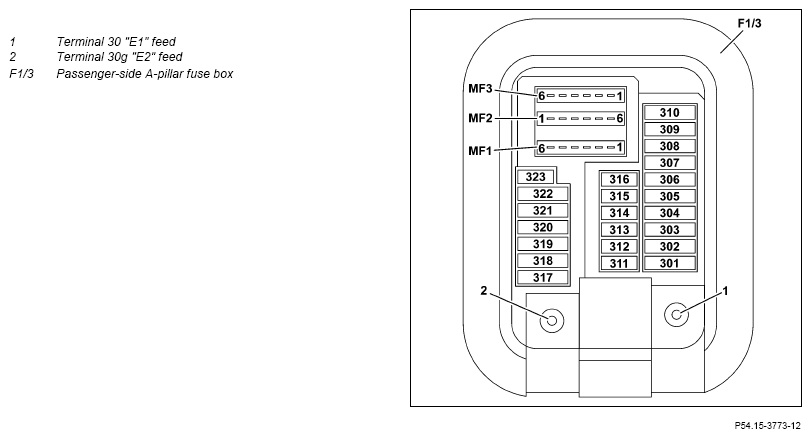

Assignment Of Passenger-Side A-Pillar Fuse Box - GF54.15-P-1256-48RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to Model year 2019
Model 253 (except 253.99) up to Model year 2020
| Slot | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 301 | Electrical fuse 301 (F1/3f301) | 30 | 0.5 RD | Model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): High-voltage disconnect device (S7) |
5 |
| 0.5 RDWH | Model 253 with engine 177 and code 466 (Active engine mount): Active engine mounts control unit (N3/42) |
5 | |||
| 302 | Electrical fuse 302 (F1/3f302) | 30 | 2.5 RD | Right rear door control unit (N69/2) | 30 |
| 303 | Electrical fuse 303 (F1/3f303) | 30 | 2.5 RD 2.5 RDWH |
Model 205.0/1/2, 253: Left rear door control unit (N69/3) |
30 |
| 2.5 RD | Model 205.3/4: Rear control unit (N22/6) |
||||
| 304 | Electrical fuse 304 (F1/3f304) | 30 | 2.5 RDGN | Transmission 722: Intelligent servo module for DIRECT SELECT (A80) |
20 |
| 305 | Electrical fuse 305 (F1/3f305) | 30 | 2.5 RD | Up to 31.05.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Driver seat heater control unit (N25/5) |
30 |
| 2.5 RD (2.5 RDGY) | Right-hand drive vehicle as of 01.06.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Front seat heater control unit (N25/17) |
30 | |||
| With code 275 (Memory package) or code 221 (Electrically adjustable left driver's seat): Driver seat control unit (N32/1) |
30 | ||||
| 306 | Electrical fuse 306 (F1/3f306) | 30 | 2.5 RD | Up to 31.05.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Front passenger seat heater control unit (N25/4) |
30 |
| 2.5 RD (2.5 RDGY) | Left-hand drive vehicle as of 01.06.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Front seat heater control unit (N25/17) |
30 | |||
| With code 242 (Electrically adjustable front passenger seat with memory function) or code 222 (Electrically adjustable right front seat): Front passenger seat control unit (N32/2) |
30 | ||||
| 307 | Electrical fuse 307 (F1/3f307) | 30 | 0.5 RDWH | Model 205 with code 466 (Active engine mount): Active engine mounts control unit (N3/42) |
5 |
| 2.5 RD | Model 253 with engine 177 and code 466 (Active engine mount): Active engine mounts control unit (N3/42) |
20 | |||
| 308 | Electrical fuse 308 (F1/3f308) | 30 | 2.5 RDBU | Model 253 with code 460 (Canada version) or code 494 (USA version) and code 550 (Trailer hitch): Electric Brake Control electrical connector (X58/28) |
30 |
| 309 | Electrical fuse 309 (F1/3f309) | 30 | 0.75 RD | With code 348 (Emergency call/Assist system): Emergency call system control unit (N123/4) |
10 |
| 0.35 RD | With code 362 (HERMES LTE): HERMES control unit (N112/9) |
5 | |||
| With CODE B54 (Live Traffic Information): Telematics services communications module (N112/1) |
|||||
| 310 | Electrical fuse 310 (F1/3f310) | 30 | 2.5 RDBN | Model 205 with code 466 (Active engine mount): Active engine mounts control unit (N3/42) |
20 |
| 2.5 RD | Model 253 with engine 177, 276 as of 01.12.2017: All-wheel drive control unit (N45) |
30 | |||
| 311 | Electrical fuse 311 (F1/3f311) | 30 | 0.75 RDWH | With CODE 581 (Automatic air conditioning): Booster blower electronic blower regulator (N29/8) |
10 |
| 312 | Electrical fuse 312 (F1/3f312) | 30 | 1.0 RD | Overhead control panel control unit (N70) | 10 |
| 313 | Electrical fuse 313 (F1/3f313) | 30 | 0.75 RD | Model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)): Power electronics control unit (N129/1) |
10 |
| Model 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): DC/DC converter control unit (N83/1) |
|||||
| 314 | Electrical fuse 314 (F1/3f314) | 30 | 0.5 RDYE | With code 467 (Electronic differential lock): Electronic differential control unit (N3/2) |
5 |
| 315 | Electrical fuse 315 (F1/3f315) | 30 | 0.5 RDWH | Circuit 30 end sleeve (Z4/3z1) | 5 |
| 2.5 RD | Model 253 with engine 177 up to 30.11.2017: All-wheel drive control unit (N45) |
30 | |||
| 316 | Electrical fuse 316 (F1/3f316) | 30 | 0.5 RDWH | Supplemental Restraint System control unit (N2/10) | 7, 5 |
| 317 | Electrical fuse 317 (F1/3f317) | 30g | 2.5 RDWH | With code 413 (Panoramic sliding sunroof): Panoramic sliding roof control module (A98) |
30 |
| With code 414 (Sliding sunroof): Sliding roof control module (A98/1) |
|||||
| 318 | Electrical fuse 318 (F1/3f318) | 30g | 2.5 RD | With code 228 (Stationary heater): Stationary heater control unit (A6n1) |
20 |
| 0.5 RD | With code 830 (Additional parts for China vehicles): Telematics services communications module (N112/1) |
20 | |||
| 319 | Electrical fuse 319 (F1/3f319) | 30g | 0.35 RD | Model 205 with code ME06 (Hybrid drive 60 KW variant (including plug-in)), Model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): High-voltage PTC heater (N33/5) |
5 |
| 1.0 RDBK | Model 253 with code B63 (Sporty engine sound): Engine sound control unit (N40/1) |
15 | |||
| 320 | Electrical fuse 320 (F1/3f320) | 30g | 1.5 RDWH | Model 205 with code 483 (ADVANCED AGILITY package): AIRmatic control unit (N51/3) |
25 |
| Model 205 with code 488 (Steel/air suspension) or code 492 (AMG performance suspension): Adaptive damping system control unit (N51/5) |
|||||
| 1.0 RDWH | Model 253 with code 489 (AIR BODY CONTROL): AIR BODY CONTROL control unit (N51/3) |
15 | |||
| 321 | Electrical fuse 321 (F1/3f321) | 30g | 0.5 RD | With code 498 (Japan version): Dedicated Short-Range Communications control unit (A50/6) |
5 |
| 322 | Electrical fuse 322 (F1/3f322) | 30g | 1.5 RD | Head unit (A26/17) | 20 |
| 323 | Electrical fuse 323 (F1/3f323) | 30g | 0.5 RDWH | With code 235 (Parking Pilot with PARKTRONIC): Parking system control unit (N62) |
5 |
| 0.35 RDWH | As of 01.12.2017 with code 235 (Parking Pilot with PARKTRONIC): Parking system control unit (N62) |
5 | |||
| MF1/pin 1 | Electrical fuse 324 (F1/3f324) | 30g | 0.5 RD | Audio/COMAND® display (A40/8) | 7, 5 |
| With code 531 (COMAND® APS): Audio equipment fan motor (M4/12) |
|||||
| MF1/pin 2 | Electrical fuse 325 (F1/3f325) | 30g | 0.5 RDYE | With code 22P (Lane Tracking Package), code 513 (Traffic Sign Assist), code 640 (High Performance LED) or code 641 (Dynamic LED headlamps, left-hand traffic) or code 642 (Dynamic LED headlamps, right-hand traffic): Mono multifunction camera (A40/11) |
7, 5 |
| With code 23P (Driving Assistance Package), code 513 (Traffic Sign Assist), code 640 (High Performance LED) or code 641 (Dynamic LED headlamps, left-hand traffic) or code 642 (Dynamic LED headlamps, right-hand traffic): Stereo multifunction camera (A40/13) |
|||||
| MF1/pin 3 | Electrical fuse 326 (F1/3f326) | 30g | 0.35 RDWH | Rain/light sensor with additional functions (B38/2) | 7, 5 |
| 0.5 RDGN | Model 205.0/1/2/3: Overhead control panel control unit (N70) |
||||
| 0.35 RDGN | Model 253: Overhead control panel control unit (N70) |
||||
| MF1/pin 4 | Electrical fuse 327 (F1/3f327) | 30g | 0.5 RDBU | With code 275 (Memory package) or code 221 (Electrically adjustable left driver's seat): Driver seat control unit (N32/1) |
7, 5 |
| 0.5 RDWH | Up to 31.05.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Driver seat heater control unit (N25/5) |
||||
| Right-hand drive vehicle as of 01.06.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Front seat heater control unit (N25/17) |
|||||
| MF1/pin 5 | Electrical fuse 328 (F1/3f328) | 30g | 0.5 RDWH | With code 242 (Electrically adjustable front passenger seat with memory function) or code 222 (Electrically adjustable right front seat): Front passenger seat control unit (N32/2) |
7, 5 |
| Up to 31.05.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Front passenger seat heater control unit (N25/4) |
|||||
| Left-hand drive vehicle as of 01.06.2015 with code 873 (Seat heating for driver and front passenger) or code 401 (Seat climate control for driver and front passenger): Front seat heater control unit (N25/17) |
|||||
| MF1/Pin 6 | Electrical fuse 329 (F1/3f329) | 30g | 0.5 RD | Steering column tube module control unit (N80) | 7, 5 |
| MF2/pin 1 | Electrical fuse 330 (F1/3f330) | 30g | 0.5 RDGN | With code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
5 |
| MF2/pin 2 | Electrical fuse 331 (F1/3f331) | 30g | 0.35 RDWH | Audio/COMAND® control panel (A40/9) | 5 |
| With code 522 (Audio 20 radio) or code 531 (COMAND® APS): Touchpad (A105) |
|||||
| MF2/pin 3 | Electrical fuse 332 (F1/3f332) | 30g | 0.5 RD | With code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
5 |
| MF2/pin 4 | Electrical fuse 333 (F1/3f333) | 30g | 0.5 RD | With code 463 (Head-up display): Heads-up display (A40/12) |
5 |
| MF2/pin 5 | Electrical fuse 334 (F1/3f334) | 30g | 0.5 RD | Multimedia connection unit (A90/5) | 5 |
| MF2/Pin 6 | Electrical fuse 335 (F1/3f335) | 30g | 0.5 RDYE | Model 205 with code ME04 (Mild hybrid drive) or code ME06 (Hybrid drive 60 KW variant (including plug-in)), Model 205, 253 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)): Electric refrigerant compressor (A9/5) |
5 |
| MF3/pin 1 | Electrical fuse 336 (F1/3f336) | 30g | 0.35 RDYE | Front SAM control unit (N10/6) | 5 |
| MF3/pin 2 | Electrical fuse 337 (F1/3f337) | 30g | 0.5 RDWH | Model 205 with code 23P (Driving Assistance Package): Radar sensors control unit (N62/1) |
5 |
| 0.35 RDWH | Model 253 with code 23P (Driving Assistance package): Radar sensors control unit (N62/1) |
||||
| MF3/pin 3 | Electrical fuse 338 (F1/3f338) | 30g | 0.35 RD | With code 830 (Additional parts for China vehicles): Rear USB electrical connection (X39/75) |
5 |
| MF3/pin 4 | Electrical fuse 339 (F1/3f339) | 30g | 0.5 RDYE | With code 235 (Parking Pilot with PARKTRONIC): Driver side instrument panel button group (S6/1) |
5 |
| MF3/pin 5 | Electrical fuse 340 (F1/3f340) | 30g | 0.5 RDVT | With CODE 581 (Automatic air conditioning): Rear air conditioning operating unit (N22/4) |
5 |
| MF3/Pin 6 | Electrical fuse 341 (F1/3f341) | 30g | 0.5 RDWH | With code 475 (Tire pressure monitoring system): Tire pressure monitor control unit (N88) |
5 |
