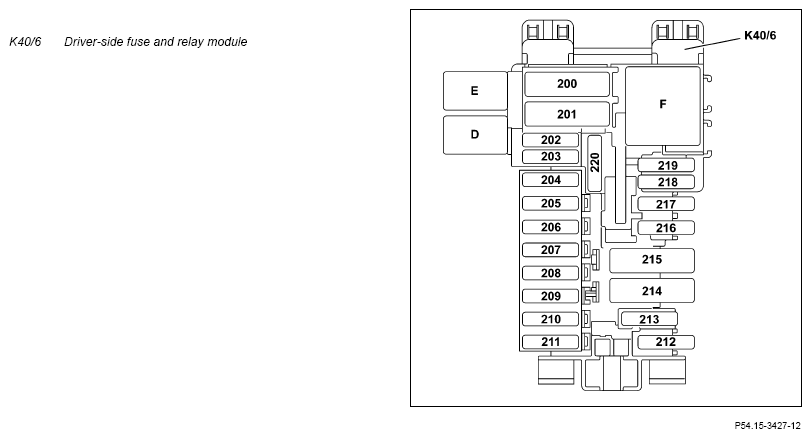

Assignment Of Driver-Side Fuse And Relay Module - GF54.15-P-1256-49RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to Model year 2019
Model 253 (except 253.99) up to Model year 2020
| Slot | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 200 | Electrical fuse 200 (K40/6f200) | 30 | 4.0 RD | Front SAM control unit (N10/6) | 50 |
| 201 | Electrical fuse 201 (K40/6f201) | 30 | 4.0 RD or 4.0 RDYE | Front SAM control unit (N10/6) | 40 |
| 202 | Electrical fuse 202 (K40/6f202) | 30 | 0.5 RD or 0.35 RD | With code 551 (Anti-theft alarm system (ATA)) or code 882 (Interior protection and tow-away protection): Alarm siren (H3/1) |
5 |
| 0.35 RD | Model 205.4 with code 551 (Anti-theft alarm system (ATA)) and code 882 (Interior protection and tow-away protection): ATA [EDW]/tow-away protection/interior protection control unit (N26/3) |
||||
| 203 | Electrical fuse 203 (K40/6f203) | 30 | 1.5 RDWH | Transmission 716: Electric steering lock control unit (N26/5) |
20 |
| 204 | Electrical fuse 204 (K40/6f204) | 30 | 0.5 RDGN | Diagnostics connection (X11/4) | 5 |
| 205 | Electrical fuse 205 (K40/6f205) | 30 | 0.5 RDGN | Electronic ignition lock control unit (N73) | 7, 5 |
| 206 | Electrical fuse 206 (K40/6f206) | 30 | 0.5 RDYE | Analog clock (A70/1) | 5 |
| 207 | Electrical fuse 207 (K40/6f207) | 30 | 1.5 RDBK | Climate control control unit (N22/1) | 15 |
| 208 | Electrical fuse 208 (K40/6f208) | 30 | 0.75 RDYE | Instrument cluster (A1) | 7, 5 |
| 209 | Electrical fuse 209 (K40/6f209) | 30 | 0.5 RDWH | Climate control operating unit (N58/1) Upper control panel control unit (N72/1) | 5 |
| 210 | Electrical fuse 210 (K40/6f210) | 30 | 0.5 RDBK | Model 205 with code 238 (Active Lane Keeping Assist), code 443 (Steering wheel heater) or code 476 (Lane Keeping Assist): Steering column tube module control unit (N80) |
55 |
| 1.0 RDBK | Model 253 with code 238 (Active Lane Keeping Assist), code 443 (Steering wheel heater) or code 476 (Lane Keeping Assist): Steering column tube module control unit (N80) |
510 | |||
| 211 | Electrical fuse 211 (K40/6f211) | 30 | 2.5 RD | Engine 177: Electronic Stability Program control unit (N30/4) |
25 |
| 212 | Electrical fuse 212 (K40/6f212) | 30 | 0.5 RDOG | Up to 31.05.2016 with code 360 (HERMES UMTS), code 362 (HERMES LTE), code 386 (Convenience telephony) or code B24 (Remote control for stationary heater), Model 205 with code 344 (Antenna pre-installation for taxi): Antenna changeover switch for telephone and stationary heater (A2/155) |
5 |
| 213 | Electrical fuse 213 (K40/6f213) | 30 | 0.5 RD | Electronic Stability Program control unit (N30/4) | 5 |
| 214 | Electrical fuse 214 (K40/6f214) | 30 | 2.5 RDYE | Engine 177: Electric parking brake control unit (N128) |
30 |
| 215 | Electrical fuse 215 (K40/6f215) | 15R | - | Spare | - |
| 216 | Electrical fuse 216 (K40/6f216) | 15R | 0.5 BK | Glove compartment lamp (E13/1) | 5 |
| 217 | Electrical fuse 217 (K40/6f217) | 15R | 0.5 BKRD | With code 498 (Japan version): Dedicated Short-Range Communications control unit (A50/6) |
5 |
| 0.75 BKRD | Model 205 with code Z97 (Electronic interface): Roof light bar separating point (X41/2) |
5 | |||
| 1.5 GN | With code 970 (Police emergency vehicles): Special-purpose vehicle fuse block 1 (F80/1) |
7, 5 | |||
| 218 | Electrical fuse 218 (K40/6f218) | 15R | 0.5 PKRD | Supplemental Restraint System control unit (N2/10) | 7, 5 |
| 219 | Electrical fuse 219 (K40/6f219) | 15R | 0.5 PKGN | With code U10 (Automatic front passenger airbag shutoff): Weight sensing system (WSS) control unit (N110) |
5 |
| 220 | Electrical fuse 220 (K40/6f220) | 30 | 0.35 RD | With code 9U1 (ECALL RUSSIA (GLONASS) pre-installation) or code E64 (ECALL RUSSIA (GLONASS)): eCall Russia control unit (GLONASS) (N167) |
5 |
| 0.5 RDOG | With code B24 (Remote control for stationary heater) and except code 9U1 (ECALL RUSSIA (GLONASS) pre-installation) or code E64 (ECALL RUSSIA (GLONASS)): Antenna changeover switch for telephone and stationary heater (A2/155) |
| Relay Identification | Designation |
|---|---|
| D | Backup relay (K40/6kD) |
| E | Backup relay (K40/6kE) |
| F | Relay, circuit 15R (K40/6kF) |
