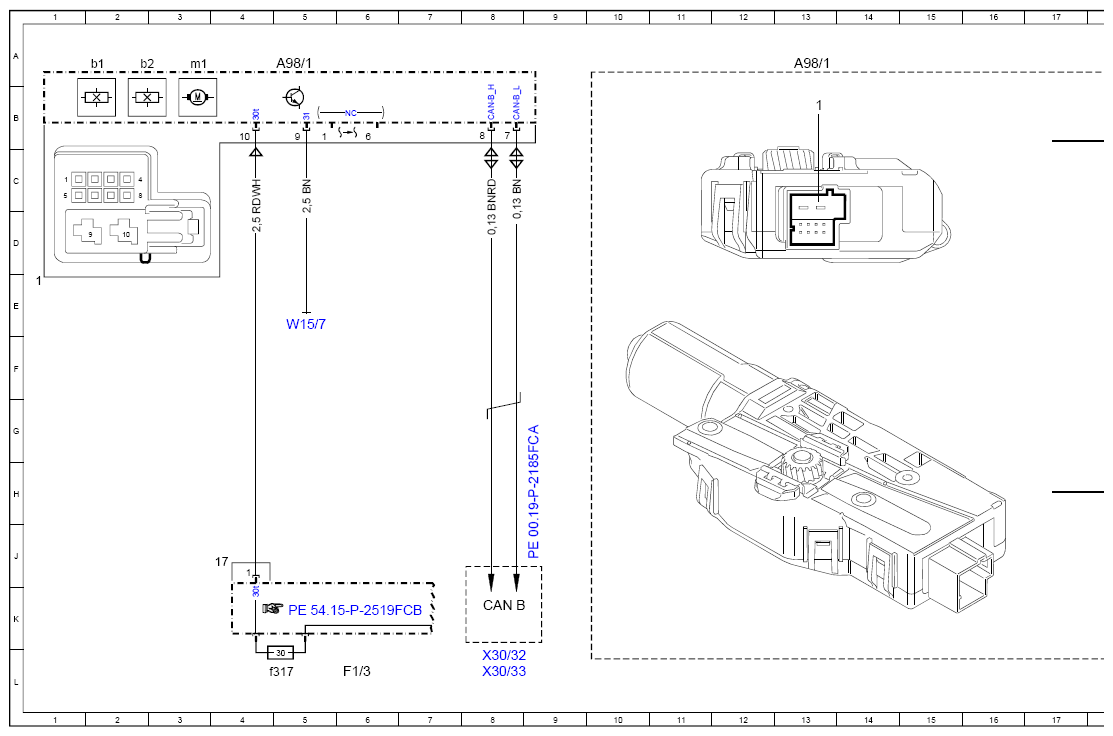

Wiring Diagram For Sliding Roof Control Module - PE77.20-P-2103-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) as of model year 2020
with code 414 (Electric sunroof, glass version)
A98/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |

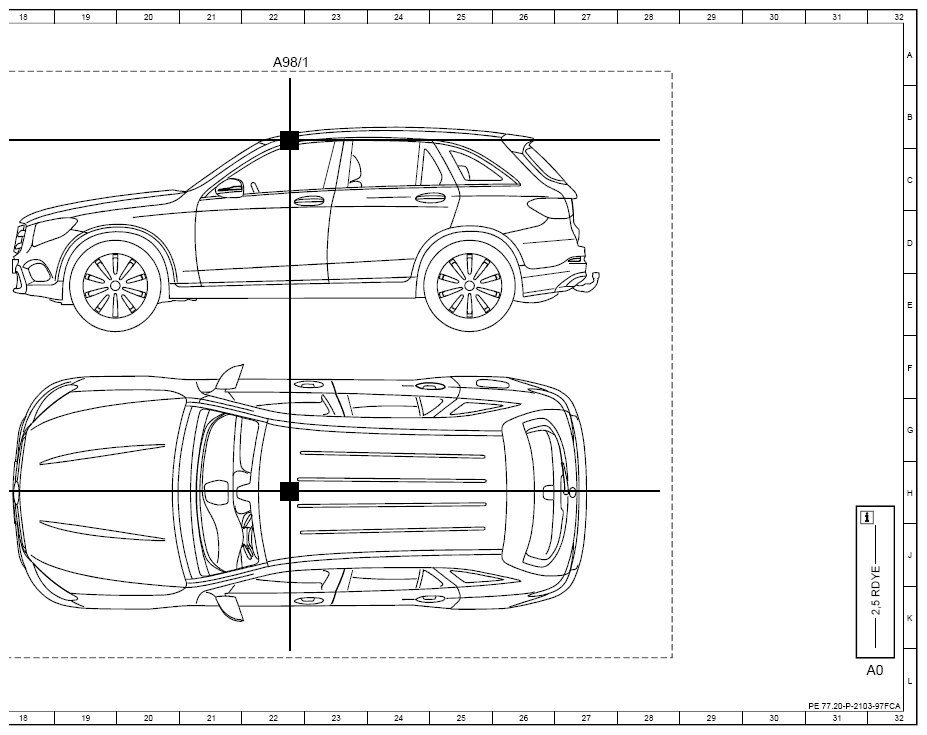

| A98/1 | Sliding roof control module | 5A |
| A98/1 | Sliding roof control module | 13A |
| A98/1 | Sliding roof control module | 22A |
| A98/1b1 | Hall sensor 1, sliding roof | 2A |
| A98/1b2 | Hall sensor 2, sliding roof | 2A |
| A98/1m1 | Sliding roof motor | 3A |
| CAN B | Interior CAN | 8K |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3f317 | Fuse 317 | 5L |
| W15/7 | Right front footwell ground point | 5E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 8L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 8L |
