Remove/Install Tilting/Sliding Roof Frame - AR77.20-P-3000LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 213.0/1/2
with code 414 (Electric sunroof, glass version)
Model 253
with code 414 (Electric sunroof, glass version)
Model 293
with code 414 (Electric sunroof, glass version)
MODIFICATION NOTES
| 13.09.2021 | Remove headliner. | Validity for 213.0/1 added to operation step 5. |

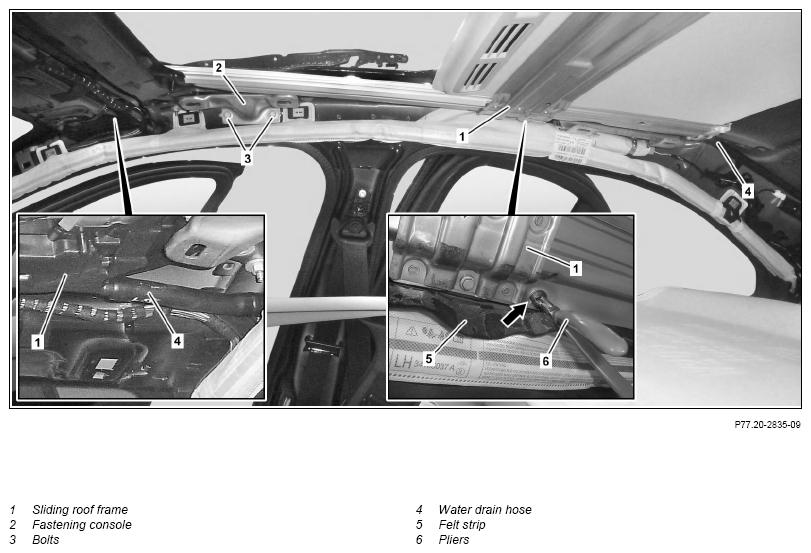

Shown on model 205.0 at right side of vehicle
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove water drain rail. | When replacing sliding roof frame (1) or when removing tilt brackets. | |
| AR77.20-P-1997LW | |||
| 2 | Remove wind deflector. | When replacing sliding roof frame (1). | |
| AR77.20-P-2500LW | |||
| 3 | Remove trim from sliding roof frame. | When replacing sliding roof frame (1) or when removing tilt brackets. | |
| AR77.20-P-0500LW | |||
| 4 | Remove sliding roof control module (A98/1). | When replacing sliding roof frame (1) or when removing tilt brackets. | |
| AR77.20-P-3010LW | |||
| 5 | Remove headliner. | Model 213.2, 253, 293 with code 414 (Electric sunroof, glass version) |
AR68.30-P-4300LWS |
| Model 213.0/1 with code 414 (Electric sunroof, glass version) |
AR68.30-P-4300LWE | ||
| 6 | Remove screws (3) from left and right side of vehicle. | *BA00.10-P-1002-04A | |
| 7 | Remove mounting support (2) at left and right side of vehicle. | ||
| 8 | Remove felt strips (5). | ||
| 9 | Insert pliers (6) into corresponding opening (arrow) at left and right side of vehicle. | Fig 1 | |
| 10 | Remove water drain hoses (4) at left and right side of sliding sunroof frame (1). | Carefully remove water drain hoses (4). Otherwise damage may occur. |
|

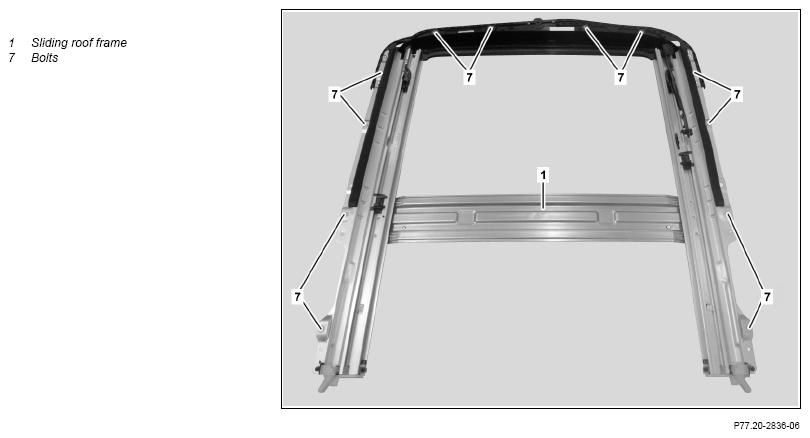

| 11 | Remove screws (7). | *BA00.10-P-1002-04A | |
| 12 | Remove pliers (6) and remove sliding sunroof frame (1) from vehicle through door cutout of front passenger door. | Cover center console. Damage can otherwise occur. |
|
| Fig 1 | |||
| 13 | Install in the reverse order | ||
| 14 | Normalize panoramic sliding sunroof with diagnostic system and perform teach-in run for automatic reversing function. | ||
| Model 293 with code 414 (Electric sunroof, glass version) |
AD00.00-P-2000-06FR | ||
| Model 213.0/1/2 with code 414 (Electric sunroof, glass version) Model 253 with code 414 (Electric sunroof, glass version) |
AD00.00-P-2000-04B |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
