Remove/Install Panoramic Roof Wind Deflector - AR77.21-P-0100LF

Model 205

with code 413 (Automatic panoramic sliding sunroof)

Model 222

with code 398 (Panoramic roof with MAGIC SKY CONTROL)

Model 222

with code 413 (Automatic panoramic sliding sunroof)

Model 238

with code 413 (Automatic panoramic sliding sunroof)

Model 253

with code 413 (Automatic panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

Shown on model 222

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install

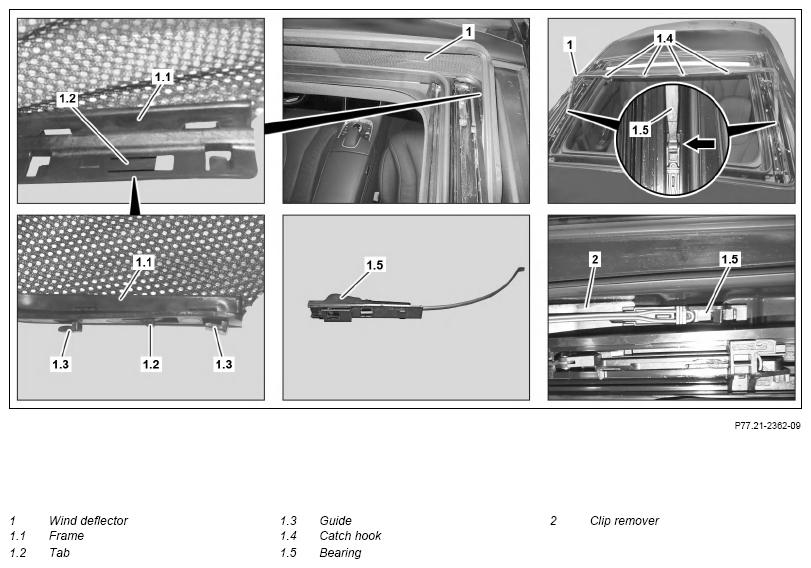

1	Completely open panorama sliding roof
2	Lift left and right lug (1.2) on frame (1.1) with screwdriver and push frame (1.1) toward rear until guides (1.3) move out of mounts on panoramic sliding roof frame
3	Unclip frame (1.1) on catch hook (1.4) from panoramic sliding roof frame	: Carefully clip in frame (1.1). Otherwise the catch hooks (1.4) can break. Extraction hook	Fig 1
4	Fold up wind deflector (1)
5	Unclip wind deflector (1) from left and right bearing (1.5) (arrow) and remove
6	Lift left and right bearing (1.5) in front area, push toward front and remove	Clip remover	Fig 2
7	Install in the reverse order
8	Normalize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function
		Model 205, 222, 253 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AD00.00-P-2000-04B
		Model 238 with code 413 (Automatic panoramic sliding sunroof)	AD00.00-P-2000-06LWO
